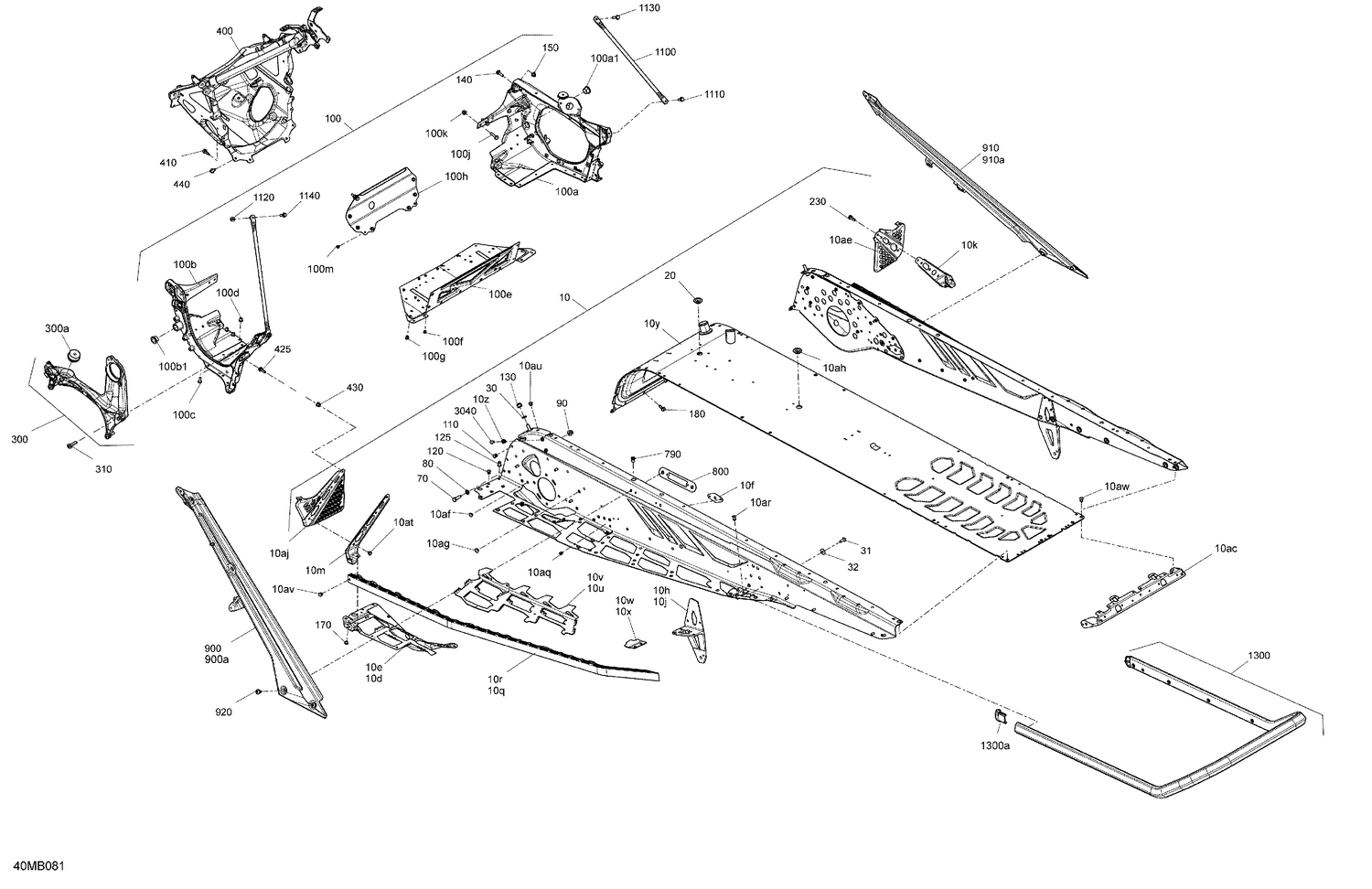

| Ref | Part Number | Description |
|---|
| 10ac |
518328990 |
Rear Cap |
| 10ae |
518328460 |
RH Footrest |
| 10af |
293730047 |
Black, Dart 8 mm |
| 10ag |
293730060 |
Black, Dart 10 mm |
| 10ah |
293730052 |
Black, Plug |
| 10aj |
518333007 |
LH Footrest This part replaces 518331556. |
| 10aq |
293150203 |
Rivet Avibulb 3/16 |
| 10ar |
293150183 |
Rivet |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aw |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10d |
518332578 |
RH Footrest Reinforcement |
| 10e |
518332577 |
LH Footrest Reinforcement |
| 10f |
518326647 |
Reinforcement Plate |
| 10h |
518328467 |
LH Suspension Bracket |
| 10j |
518334391 |
RH Rear Suspension Support This part replaces 518328468. |
| 10k |
518331253 |
Stirrup Reinforcement |
| 10m |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10q |
518328451 |
RH Roller |
| 10r |
518328452 |
LH Roller |
| 10u |
518329646 |
RH Tunnel Liner |
| 10v |
518329647 |
LH Tunnel Liner |
| 10w |
518329088 |
LH Reinforcement Plate |
| 10x |
518329089 |
RH Reinforcement Plate |
| 10y |
518332555 |
Radiator Tunnel 165 |
| 10z |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081410 |
Flat Washer 8 mm |
| 31 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 32 |
224061201 |
Flat Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a1 |
505072690 |
Leg Bushing |
| 100b1 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332716 |
Bottom Plate |
| 100f |
293150203 |
Rivet Avibulb 3/16 |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
518330100 |
Front Member |
| 100j |
250000945 |
Hex. Flange Screw M6 X 25 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
293150203 |
Rivet Avibulb 3/16 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518332096. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 440 |
207661636 |
Hex. Flange Screw M6 X 16 |
| 790 |
293450278 |
Insert |
| 800 |
518329480 |
Member Fixation Plate |
| 900a |
518333356 |
LH Rear Diagonal Cross Member This part replaces 518333264. |
| 910a |
518332559 |
RH Rear Diagonal Cross Member This part replaces 518333265. |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1300a |
520001612 |
Cap |
