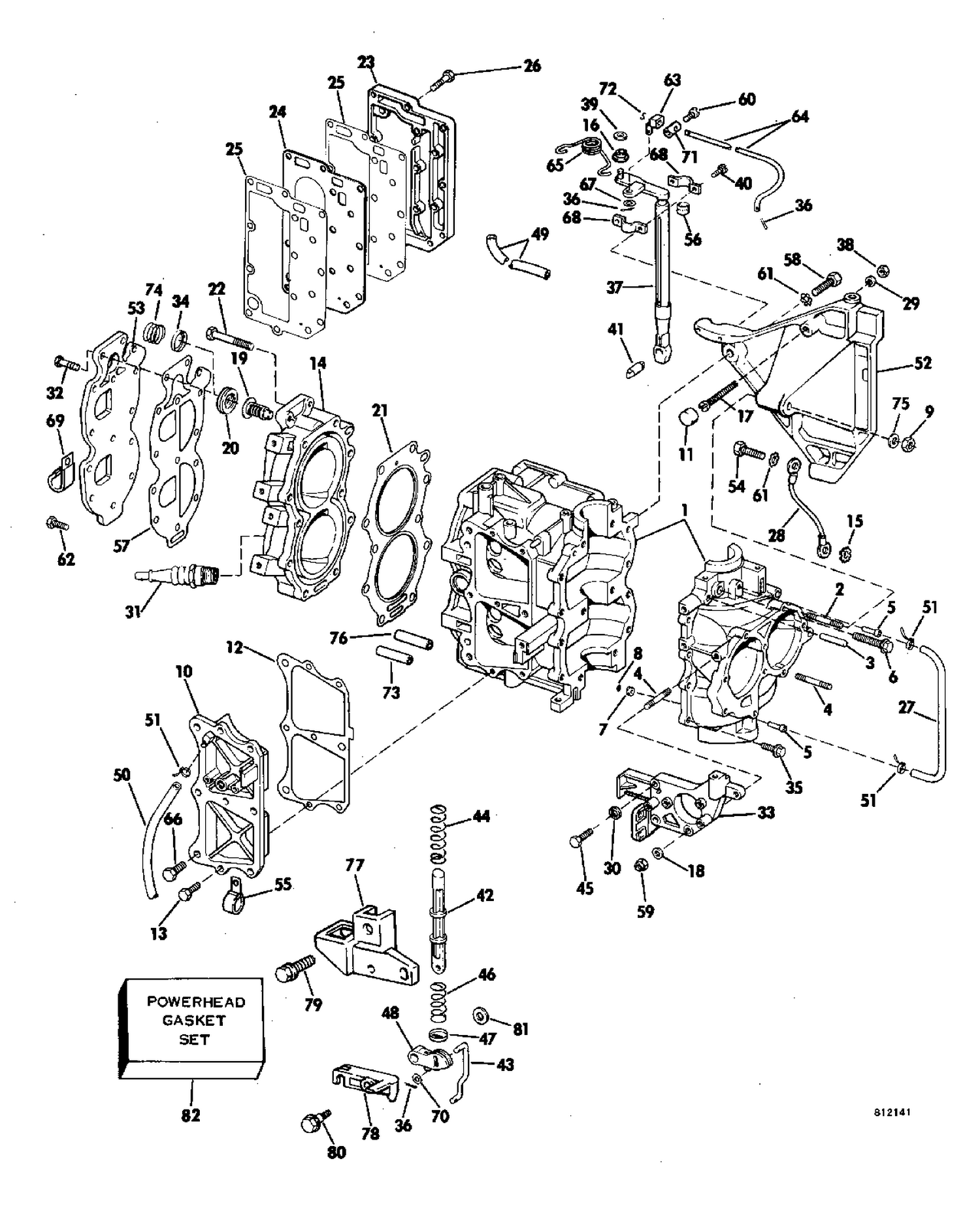

| Ref | Part Number | Description |
|---|
| 1 |
0435942 |
CYL. & C'CASE ASSY. This part replaces 0390430. |
| 10 |
0390708 |
BY-PASS COVER ASSY |
| 11 |
0314416 |
BUMBER, Advance screw |
| 12 |
0319661 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0335635 |
CYL. HEAD ASSY. This part replaces 0324319. |
| 16 |
0307841 |
BUSHING, Control lever |
| 18 |
0303482 |
WASHER, Bracket |
| 19 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 20 |
0323582 |
SEAL, Thermostat |
| 21 |
0324324 |
GASKET, Cylinder head |
| 22 |
0305027 |
SCREW |
| 23 |
0391465 |
EXHAUST COVER, Outer |
| 24 |
0324322 |
EXHAUST COVER, Inner |
| 25 |
0324323 |
GASKET, Exh. cover, outer to inner |
| 26 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 27 |
HOSE, |
Mfld. to crankcase |
| 28 |
0376349 |
FIL, masse |
| 30 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 31 |
0386939 |
PARK PLUG,AC M40FFX |
| 31 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 33 |
0325340 |
BRACKET, Starboard |
| 34 |
0324314 |
RETAINER, Thermostat |
| 35 |
0314979 |
SCREW, Cylinder to c'case |
| 37 |
0386464 |
CONTROL LEVER & PIN |
| 39 |
0305831 |
SHIM |
| 40 |
0319547 |
SCREW, Clamp & ground lead |
| 41 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 42 |
0325332 |
PLUNGER |
| 43 |
0335326 |
LINK, Actuator cam This part replaces 0325336. |
| 44 |
0325583 |
SPRING, Shift detent |
| 45 |
0314951 |
SCREEN, Mfld. to c'case |
| 46 |
0325584 |
SPRING, Neutral detent |
| 47 |
0325586 |
RETAINER, Spring |
| 48 |
0325587 |
LEVER, Lockout |
| 49 |
0322172 |
HOSE, Indicator |
| 50 |
HOSE, |
Bypass cover to mfld. |
| 51 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 52 |
0351035 |
BRACKET, Port This part replaces 0320374. |
| 53 |
0327673 |
COVER, Cylinder head This part replaces 0324320. |
| 55 |
0314254 |
CLAMP |
| 56 |
0320524 |
BEARING, Control lever |
| 57 |
0327674 |
GASKEET, Water cover This part replaces 0324325. |
| 58 |
0314951 |
SCREEN, Mfld. to c'case |
| 60 |
0304221 |
SCEW,Collar to cable |
| 62 |
0300646 |
VIS, ancrage |
| 63 |
0320786 |
PIVOT PIN |
| 64 |
0320156 |
ROD, Throttle control |
| 65 |
0321721 |
SPRING |
| 66 |
0306450 |
SCREW |
| 68 |
0320523 |
BEARING CLAMP |
| 71 |
0304222 |
COLLAR |
| 72 |
0307565 |
PIN |
| 74 |
0328051 |
SPRING, Pressure release This part replaces 0323586. |
| 75 |
0329241 |
RONDELLE This part replaces 0306482. |
| 77 |
0325326 |
BRACKET, Safety sw. & cable |
| 78 |
0325589 |
LEVER, Start lockout |
| 79 |
0318468 |
SCRAEW, Latch to handle |
| 80 |
0327443 |
SCREW, Starter lockout |
