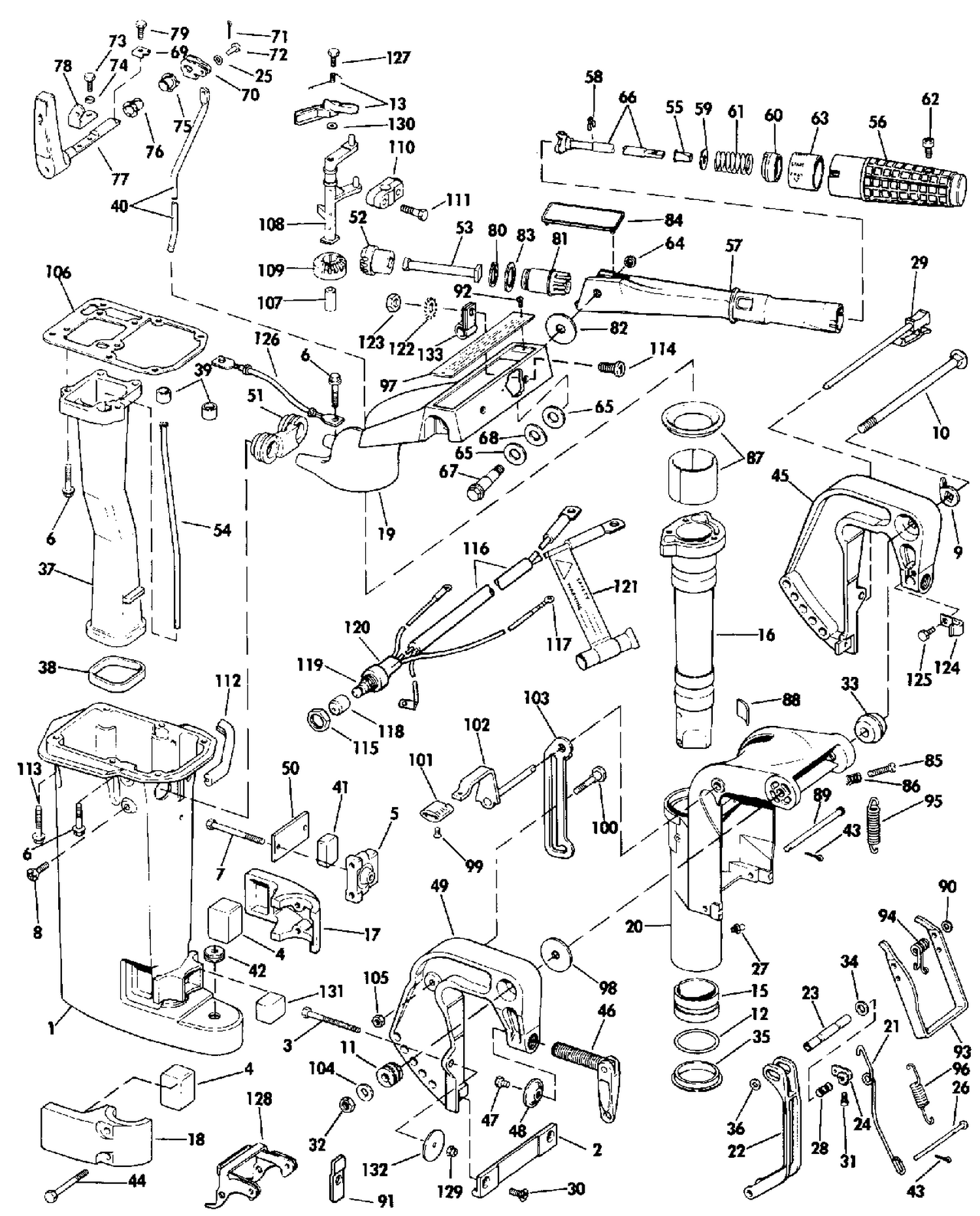

| Ref | Part Number | Description |
|---|
| 1 |
0391578 |
EXHAUST HOUSING ASSY |
| 2 |
0309738 |
PLATE STERN BRACKET |
| 3 |
0432294 |
SCREW & NUT ASSEMBLY This part replaces 0313966. |
| 4 |
0318997 |
LATERAL MOUNT, Lower |
| 5 |
0386033 |
MOUNT ASSY,.Upper |
| 7 |
0313600 |
SCREW, Upper mounts to steering bracket |
| 8 |
0319125 |
SCREW |
| 9 |
0300364 |
LINK, Conical, tilt shaft |
| 10 |
0319756 |
BOLT, Tilting shaft |
| 11 |
0302051 |
SPRING Tilting bolt |
| 13 |
0391105 |
STARTER PAWL & SPRING |
| 14 |
0325913 |
SPRING |
| 15 |
0309967 |
BUSHING, Pilot shaft, lower |
| 16 |
0318528 |
PILOT SHAFT, Swivel brkt. |
| 17 |
0329021 |
MOUNT BRACKET, Lower port |
| 18 |
0329020 |
MOUNT BRACKET, Lower, stbd |
| 19 |
0395463 |
STEERING BRACKET This part replaces 0394211. |
| 20 |
0329102 |
SWIVEL BRACKET |
| 21 |
0320416 |
WIRE, Reverse lock release |
| 22 |
0338874 |
CARRYING HANDLE This part replaces 0318956. |
| 23 |
0319046 |
BUSHING, Tilt lock shaft to sw. brkt. |
| 24 |
0319049 |
BELL CRANK, Reverse lock |
| 25 |
0304380 |
RONDELLE ÉLASTIQUE |
| 26 |
0326943 |
PIN, Link to lock lever |
| 28 |
0319270 |
SPRING, Tilt lock bushing |
| 29 |
0432453 |
KNOB & TILT PIN ASSY. This part replaces 0390441. |
| 30 |
0308684 |
SCREW, Cover to housing |
| 31 |
0319108 |
SCREW BELCRANK |
| 33 |
0301983 |
CONICAK WASHER,Stern brkt |
| 34 |
0308052 |
RONDELLE, verrouillage de relevage, douille d'arbre |
| 35 |
0309966 |
THRUST WASHER, Lower swivel bracket |
| 36 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 37 |
0330439 |
EXHAUST TUBE, Inner This part replaces 0324048. |
| 38 |
0318996 |
SEAL, Inner to outer exh, hsg |
| 39 |
0324045 |
GROMMER, Upper, water tube |
| 40 |
0319124 |
SHIFT ROD, Upper |
| 41 |
0329045 |
THRUST MOUNT, Upper |
| 42 |
0319229 |
GROMMET, Exh, hsg, to shift rod |
| 44 |
0319042 |
SCREW BRACKET AND CLAMPSCREW ASSY., Port |
| 45 |
0327928 |
STERN BRACKET, Port This part replaces 0392831. |
| 46 |
0391421 |
CLAMP SCREW & HANDLE |
| 46 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388347. |
| 49 |
0327929 |
STERN BRKT., Stbd. This part replaces 0392832. |
| 50 |
0339613 |
PLATE, Upper mounts This part replaces 0329047. |
| 51 |
0318989 |
SEAL, Upper mounts exh. hsg. |
| 52 |
0319034 |
GEAR, Control shaft, inner |
| 53 |
0319006 |
SHAFT, Link to starter interlock bellcrank |
| 54 |
0395124 |
WATER TUBE This part replaces 0328304. |
| 56 |
0393556 |
GRIP & SLEEVE ASSY. |
| 57 |
0322133 |
STEERING HANDLE |
| 58 |
0322134 |
RETAINING RING |
| 59 |
0303252 |
WAHSER, Grip spring |
| 60 |
0303282 |
BLOCK |
| 61 |
0301656 |
SPRING |
| 63 |
0320842 |
PLATE |
| 64 |
0320266 |
LOCKNUT, Cooler bracket |
| 66 |
0390680 |
GEAR & SHAFT ASSY. |
| 67 |
0318977 |
SCREW, Stgr. hdle. to brkt |
| 68 |
0319041 |
BOW WASHER, Scerw to brkt |
| 69 |
0319537 |
CLIP |
| 70 |
0320790 |
BELLCRANK, Shift rod |
| 72 |
0319541 |
PIN, Bellcrank to shift rod |
| 73 |
0319563 |
SCERW, Lever to shaft |
| 74 |
0311407 |
LOCKWASHER, Lever to shaft |
| 75 |
0318950 |
BUSHING, Shift lever to motor cover, inner |
| 76 |
0318951 |
BUSHING, Shift lever to c'case |
| 77 |
0392878 |
SHIFT LEVER & Bracket to hsg. |
| 78 |
0320931 |
LEVER, Shaft lever to shift lock link. |
| 79 |
0308017 |
SCREW, Bellcrank to shift lever |
| 80 |
0908141 |
RETAINING RING |
| 81 |
0389720 |
GEAR & BUSHING ASSY., Strg. hdl. |
| 82 |
0304278 |
WASHER |
| 84 |
0319339 |
COVER, Steering hdl. gears |
| 85 |
0313035 |
SCREW |
| 87 |
0397736 |
BLOCK ASSY., Friction This part replaces 0388748. |
| 88 |
0397736 |
BLOCK ASSY., Friction This part replaces 0319086. |
| 89 |
0319055 |
PIN, Link to bracket |
| 90 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 91 |
0330062 |
SPACER, Auxilary motor bracket |
| 92 |
0308873 |
DRIVESCREW, Applique to lever |
| 93 |
0338657 |
LINK, Shallow water drive This part replaces 0320426. |
| 94 |
0320427 |
SPRING, Shallow water drive |
| 95 |
0319279 |
SPRING, Reverse lock |
| 96 |
0320428 |
SPRING, Reverse lock rod |
| 97 |
0321792 |
PLATE, Starting instructions |
| 98 |
0304278 |
WASHER |
| 99 |
0319227 |
SCREW, Knob |
| 100 |
0319047 |
PIN, Tilt lock to stern bracket |
| 101 |
0328048 |
KNOB, Tilt & reverse lock lever |
| 102 |
0386163 |
LEVER & SHAFT ASSY,.Lock |
| 103 |
0338563 |
TILT LOCK, Starboard This part replaces 0319134. |
| 104 |
0309335 |
WASHER |
| 106 |
0325721 |
GASKET, Cyl. & c'case to lower engine cover |
| 107 |
0321997 |
PIN, Control shaft lever |
| 108 |
0331192 |
SHAFT, Vertical control This part replaces 0325002. |
| 109 |
0319035 |
GEAR, Vertical control shaft |
| 110 |
0327588 |
BEARING CLAMP, Control shaft |
| 111 |
0908159 |
SCREW, Bearing clamp |
| 112 |
0319280 |
SEA.,Exhaust housing to lower motor cover |
| 114 |
0800177 |
SCREW |
| 116 |
0582959 |
CABLE & STARTER SWITCH This part replaces 0581939. |
| 118 |
0321963 |
BOOT, Switch |
| 119 |
0395699 |
STARTER SWITCH This part replaces 0386457. |
| 120 |
0511532 |
TUBING, Starter switch |
| 122 |
0306799 |
L'WASHER,Bracket to hsg. |
| 123 |
0306932 |
NUT |
| 124 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 126 |
0376349 |
FIL, masse |
| 127 |
0323700 |
SCREW, Pawl to control shaft |
| 128 |
0393204 |
LEVER & LINK ASSY. |
| 131 |
0329046 |
THRUST MOUNT |
