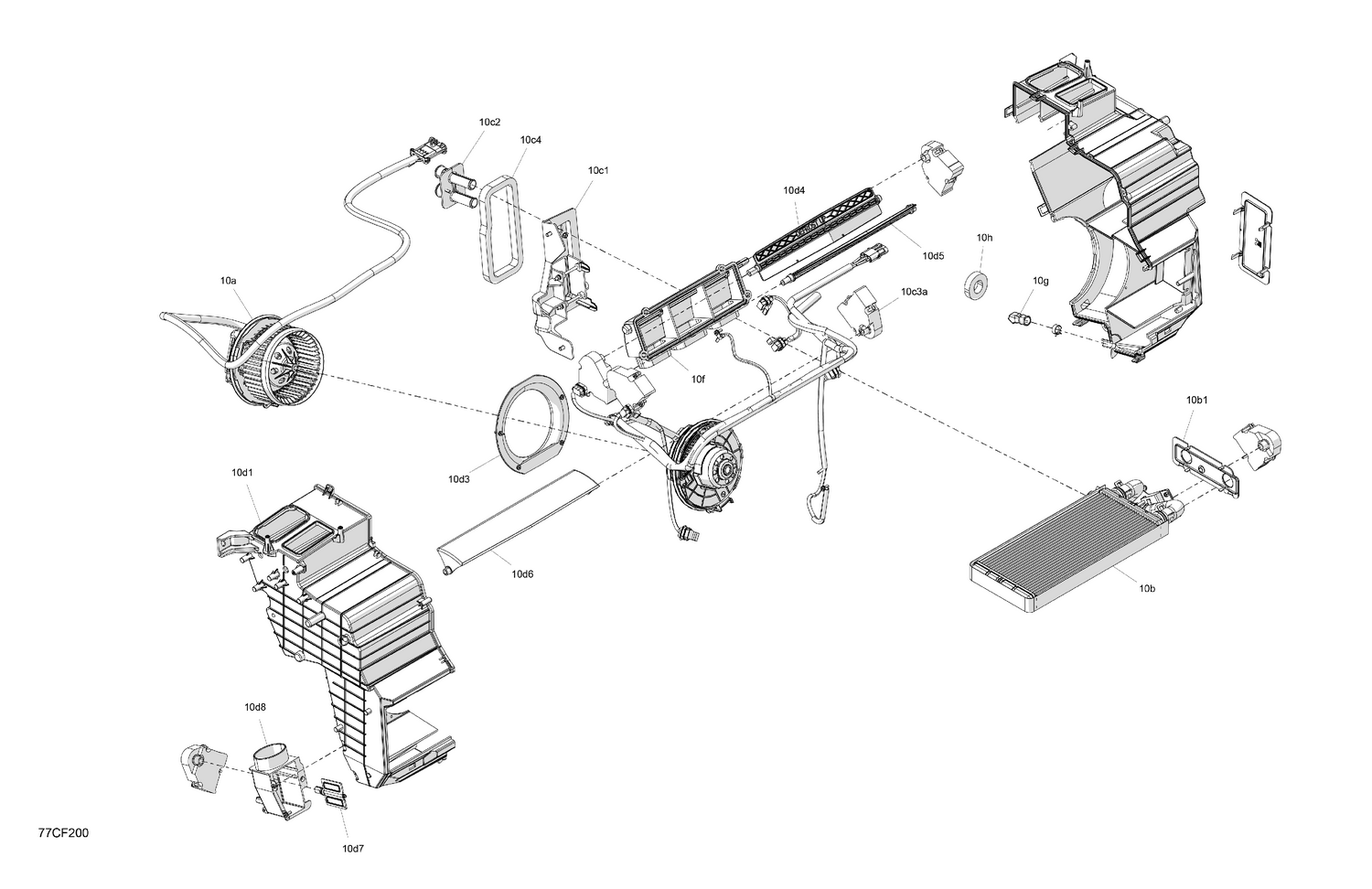

07- Enclosure Cab - Air Conditioning Unit
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705801836 | Heater Unit Fan |
| 10b1 | 705801490 | RH Molded Cover Int |
| 10c1 | 705801587 | Molded Lateral Support Reinforcement |
| 10c2 | 705801577 | Rear Coolant Manifold |
| 10c3a | 705801479 | Actuator |
| 10c4 | 705801492 | Gasket Cut |
| 10d1 | 705801416 | LH Fan Housing |
| 10d3 | 705801487 | Molded Ventilation Duct interior |
| 10d4 | 705801481 | Vent Door |
| 10d5 | 705801482 | Vent Door |
| 10d6 | 705801484 | Molded Temperature Control Valve |
| 10d7 | 705801483 | Vent Door |
| 10d8 | 705801485 | Molded Air Inlet Box |
| 10f | 705801857 | Distributer |
| 10g | 705800809 | Drain Valve |
