| Ref | Part Number | Description |
|---|
| 3 |
0312759 |
COVER, Flywheel |
| 4 |
0583563 |
FLYWHEEL This part replaces 0580892. |
| 5 |
0582957 |
ARMATURE PLATE & POST This part replaces 0580882. |
| 6 |
0510397 |
SCREW |
| 8 |
0580416 |
CLIP & LAMINATION |
| 9 |
0580148 |
BEAKER,Assy |

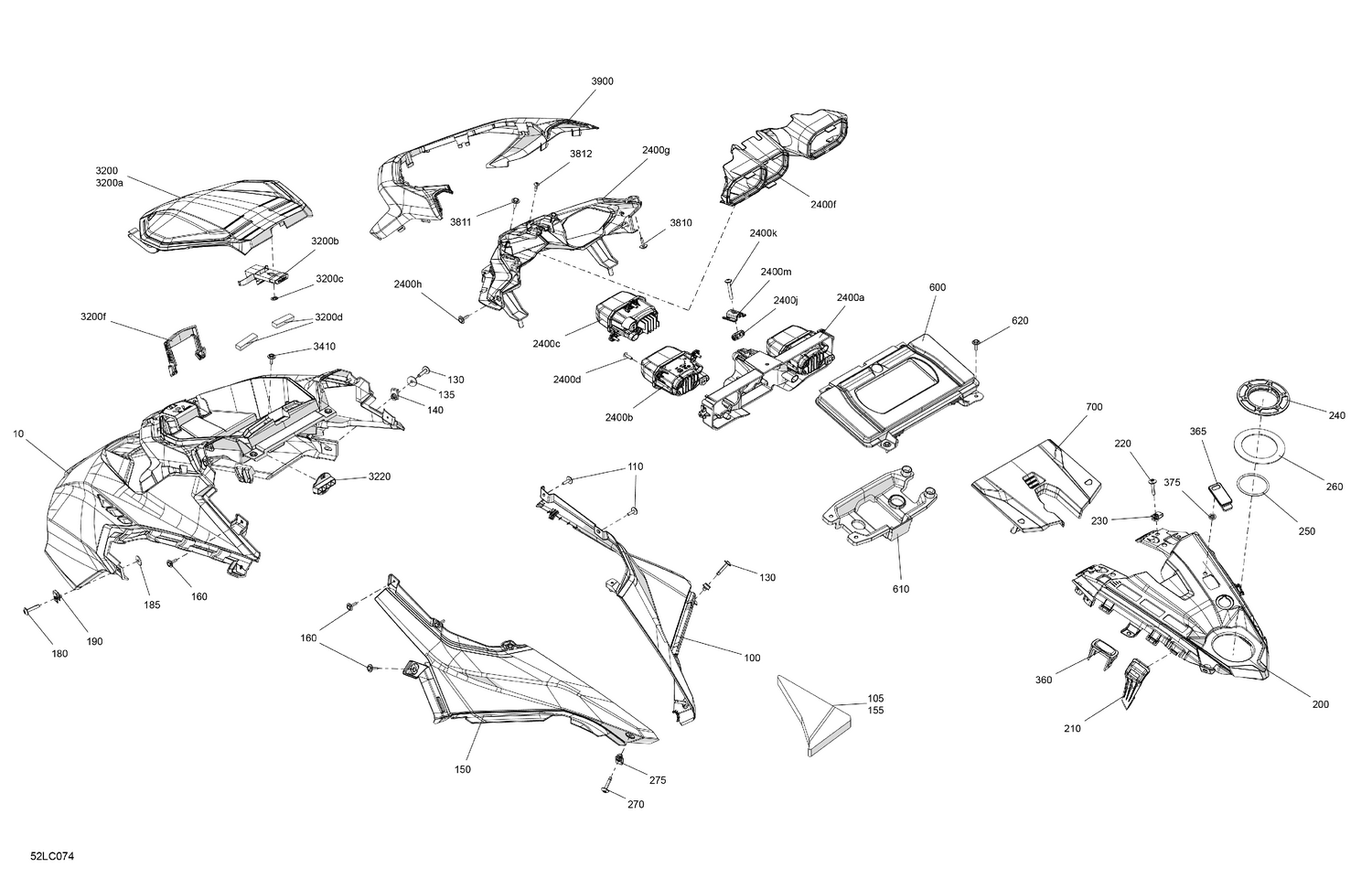

| 10 |
517308263 |
Viper Red, Central Hood |
| 12 |
0510278 |
SCREW |
| 13 |
0510208 |
BOW WASHER |
| 14 |
0510377 |
OILER WICK |
| 15 |
0510185 |
ECCENTRIC SCREW |
| 16 |
0580321 |
CONDENSER |
| 18 |
0510194 |
SCREW |
| 19 |
LEAD |
Ref: 20 0580339 *COVER & TERMINAL Assy, Coil 0580339 |
| 21 |
0510190 |
CLAMP |
| 23 |
0313536 |
CAM, Armature plate |
| 24 |
0321701 |
SCREW, Cam This part replaces 0304441. |
| 26 |
0580733 |
FIL, masse solénoïde |
| 27 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 28 |
0510772 |
SLEEVE |
| 29 |
0314412 |
GASKET ARMATURE PLATE |
| 30 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 31 |
0306468 |
SCREW, Armature plate |
| 32 |
0307595 |
SPRING ,Armature plate |
| 33 |
0313381 |
LINER, Cyl. to armature plate |
| 100 |
517308176 |
Deep Black, RH Rear Hood |
| 105 |
517308939 |
Acoustic Insulation |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
250000587 |
Torx Screw M5 X 26 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 150 |
517308160 |
Deep Black, LH Rear Hood |
| 155 |
517308940 |
Acoustic Insulation |
| 160 |
250000725 |
Screw M4 X 16 |
| 180 |
250000587 |
Torx Screw M5 X 26 |
| 185 |
250200166 |
Washer |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 200 |
517307873 |
Deep Black, Rear Console |
| 210 |
517308604 |
Fastener |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 |
| 240 |
517306602 |
Console Nut |
| 250 |
706002839 |
O-Ring |
| 260 |
517309451 |
Joint This part replaces 517307197. |
| 270 |
250000587 |
Torx Screw M5 X 26 |
| 275 |
250000958 |
Panel Nut M5 X 0.8 |
| 360 |
517306808 |
Switch Hole Cap |
| 365 |
517308261 |
Cap |
| 375 |
732610072 |
Push Nut |
| 610 |
515179104 |
Gauge Support |
| 620 |
250000725 |
Screw M4 X 16 |
| 700 |
517308112 |
Access Cover |
| 2400a |
517308741 |
Headlight Support |
| 2400b |
710008089 |
Low Beam Light |
| 2400c |
710006911 |
High Beam Light |
| 2400d |
250000759 |
Torx Truss Pt K40 X 16 |
| 2400f |
517308815 |
Boot |
| 2400g |
517308163 |
Headlight Trim |
| 2400h |
250000725 |
Screw M4 X 16 |
| 2400j |
517308229 |
Molded Housing Nut |
| 2400k |
250000732 |
Torx Screw Nylon |
| 2400m |
517308230 |
Clip |
| 3200a |
517308165 |
Box Cover |
| 3200b |
517305779 |
Latch |
| 3200c |
732610072 |
Push Nut |
| 3200d |
517308246 |
Joint Seal |
| 3200f |
517308698 |
Reinforcement Support |
| 3220 |
517308260 |
Box Cap |
| 3410 |
250000725 |
Screw M4 X 16 |
| 3810 |
250000725 |
Screw M4 X 16 |
| 3811 |
250001131 |
Torx Truss PT K40 x 12 |
| 3812 |
250000759 |
Torx Truss Pt K40 X 16 |
| 0580142 |
0580142 |
LEAD ASST.,H.T. |
| 0580889 |
0581762 |
ARMATURE PLATE ASSY. This part replaces 0580889. |
