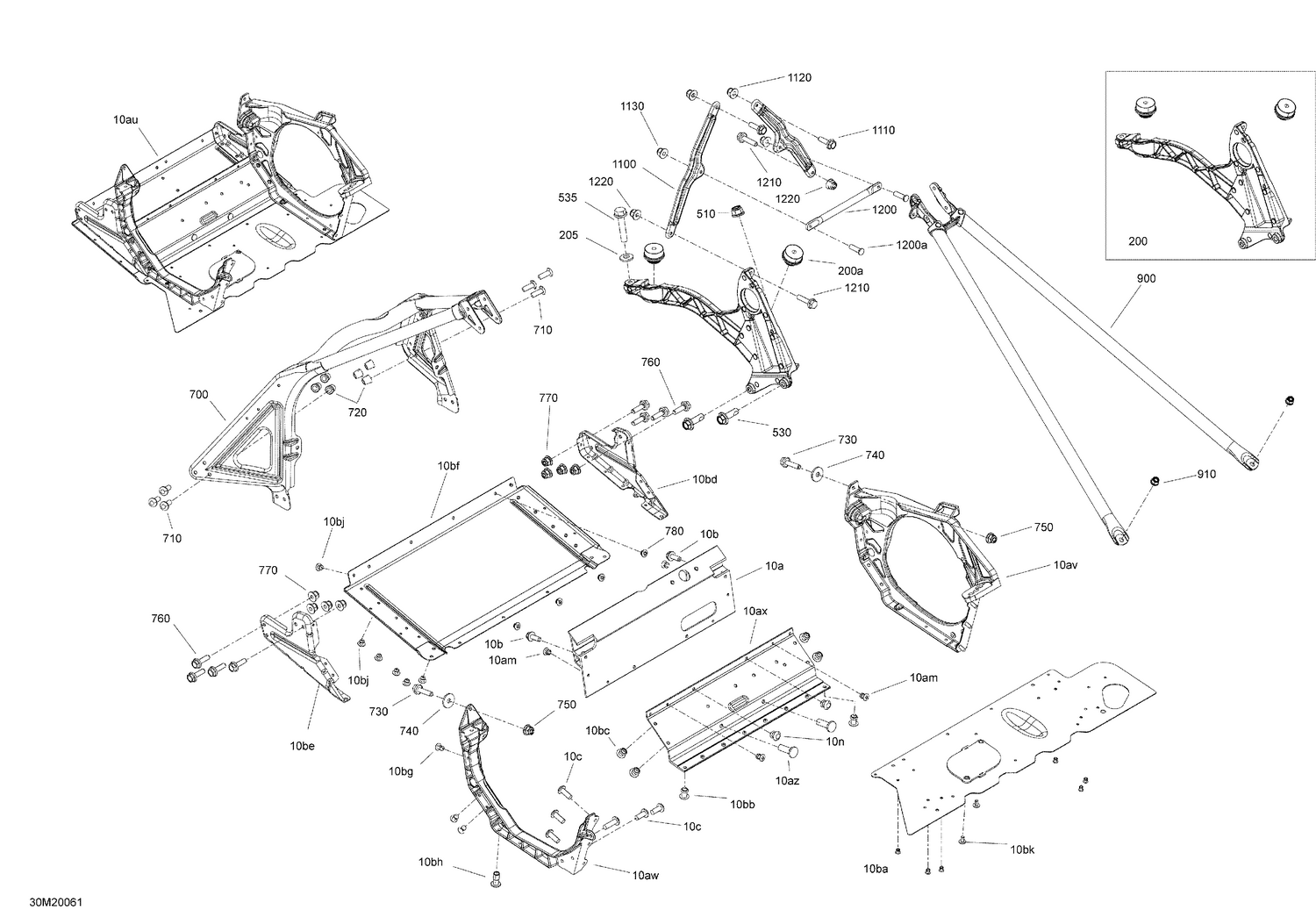

09- Frame - Front Section - Package-Sport
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 512061516 | Vibration Damper This part replaces 512060295. |
| 205 | 234281474 | Conical Spring Washer M8 |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 530 | 250000351 | Hex. Flange Screw M8 X 25, Nylon |
| 535 | 207584034 | Hex. Flange Screw, Scotch Grip |
| 700 | 518326557 | Front Member, S Module |
| 710 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 720 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 730 | 207662544 | Hex. Flange Screw M6 X 25 |
| 740 | 224061201 | Flat Washer |
| 750 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 760 | 207662044 | Hex. Flange Screw M6 X 20 |
| 770 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 780 | 390402200 | Pop Rivet 3/16" |
| 900 | 518326559 | Rear Member |
| 910 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1100 | 518326848 | Upper Column Support |
| 1110 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1130 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1200a | 250300027 | Clinch Stud M6 X 20 |
| 1210 | 207662544 | Hex. Flange Screw M6 X 25 |
