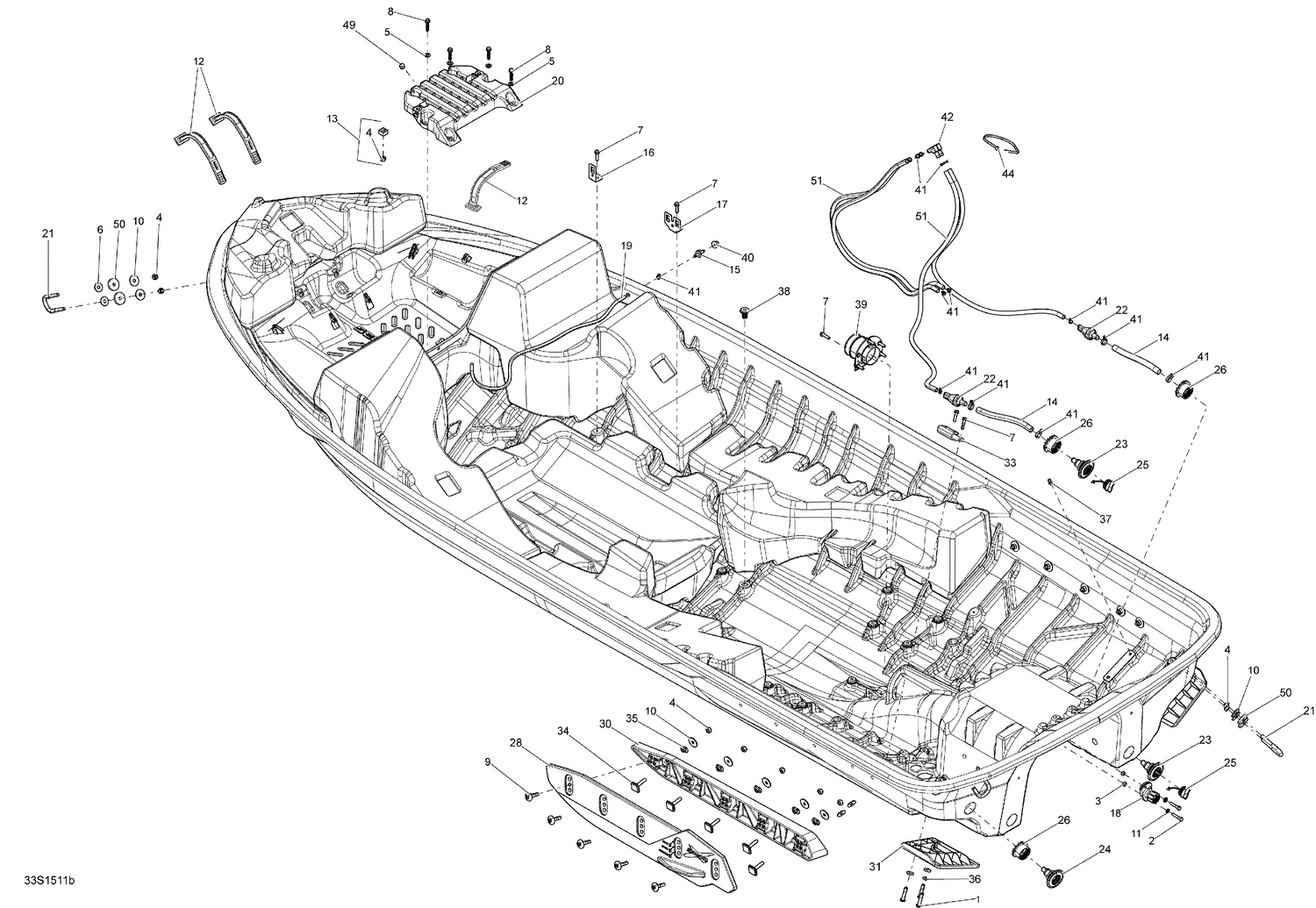

09- Hull LFI_33S1511b
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205983560 | SOCKET SCREW M8 X 35 - Call your local BRP dealership |
| 2 | 207063060 | Hex. Screw M6 X 30 |
| 3 | 232561200 | Brass Elastic Stop Nut M6 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass |
| 5 | 234080600 | Flat Washer M8, Stainless |
| 6 | 234082600 | Flat Washer 8 mm, Stainless |
| 7 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite |
| 8 | 243163060 | Hex. Flange Screw M6.81 X 30 |
| 9 | 250000994 | Torx-Head Screw M8 X 35 This part replaces 250000572. |
| 10 | 250200175 | Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 11 | 250200114 | Sealing Washer |
| 12 | 269502417 | Strap This part replaces 269500408. |
| 13 | 269501943 | Elastic Nut Housing M8 |
| 14 | 219704356 | Was 275500008 Hose 12 mm |
| 15 | 275500499 | CHECK VALVE - Call your local BRP dealership |
| 16 | 275500743 | STRAP CLIP 90 - Call your local BRP dealership |
| 17 | 275500798 | Double Strap Clip 90° |
| 18 | 277001881 | Cable Adaptor Ass'y |
| 19 | 275500446 | HOSE 6 MM - Call your local BRP dealership |
| 20 | 278002866 | Battery Base Ass'y |
| 21 | 292000933 | U-Clamp |
| 22 | 292001310 | Bailer Ass'y |
| 23 | 292001315 | Drain Neck Ass'y |
| 25 | 292002024 | Plug Drain Ass'y This part replaces 292001352. |
| 26 | 292001371 | Bushing |
| 28 | 292001871 | RH Sponson |
| 28 | 292001872 | Sponson LH |
| 30 | 292001873 | RH Spacer Sponson |
| 30 | 292001874 | Spacer Sponson LH |
| 31 | 292001430 | Trim Tab LH |
| 31 | 292001431 | TrimTab RH |
| 33 | 292001470 | MUFFLER SPACER - Call your local BRP dealership |
| 34 | 292001471 | Square Head Stud |
| 35 | 292001503 | Push Nut |
| 36 | 293050001 | Flat Washer M8.5 x 18 |
| 37 | 293150037 | Avdel Rivet 3/16" |
| 38 | 293450290 | INSERT CAPUCHON M8 - Call your local BRP dealership |
| 39 | 293450306 | HULL INSERT - Call your local BRP dealership |
| 40 | 293720029 | Grommet |
| 41 | 293750001 | Tie Wrap 94 mm |
| 42 | 293710117 | ELBOW FITTING 90 - Call your local BRP dealership |
| 44 | 293750008 | Tie Wrap 368 mm |
| 49 | 293830005 | Rubber Bumper |
| 50 | 293830037 | Rubber Washer |
