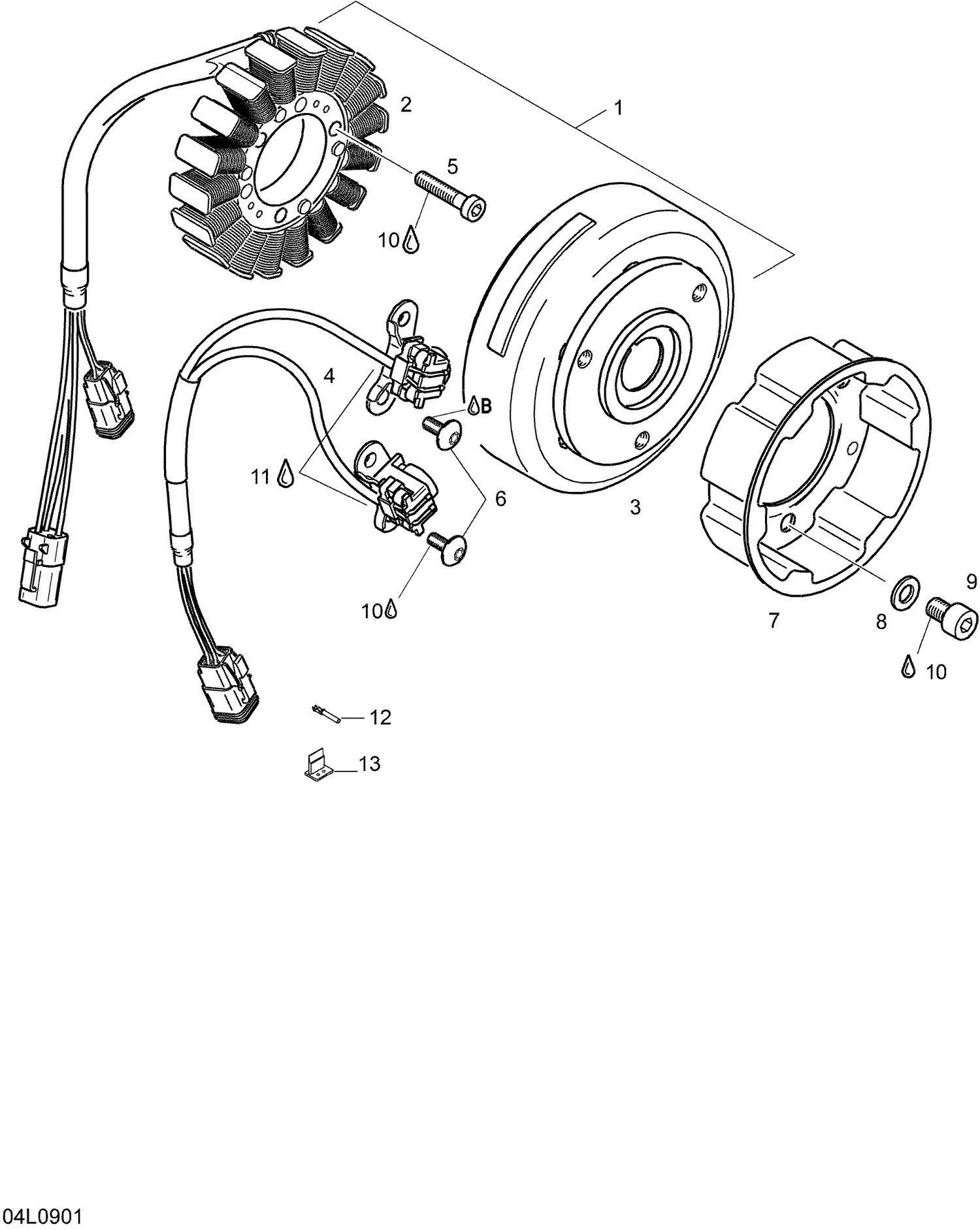

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Magnetto ass'y (12 V 360 W) |
| 2 |
420889905 |
Stator Plate A |
| 3 |
420665722 |
Flywheel |
| 4 |
410922948 |
Pickup Ass'y This part replaces 420966803. |
| 5 |
205063044 |
Socket Head Screw M6 X 30 This part replaces 420840880. |
| 6 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 7 |
420852590 |
Starting Pulley |
| 8 |
420827405 |
Flat Washer |
| 9 |
420841520 |
Socket Head Screw M8 X 12 |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
Not |
Available As Spare Part - Sikaflex 255, 310 ml |
| 12 |
278000632 |
Female Terminal |
