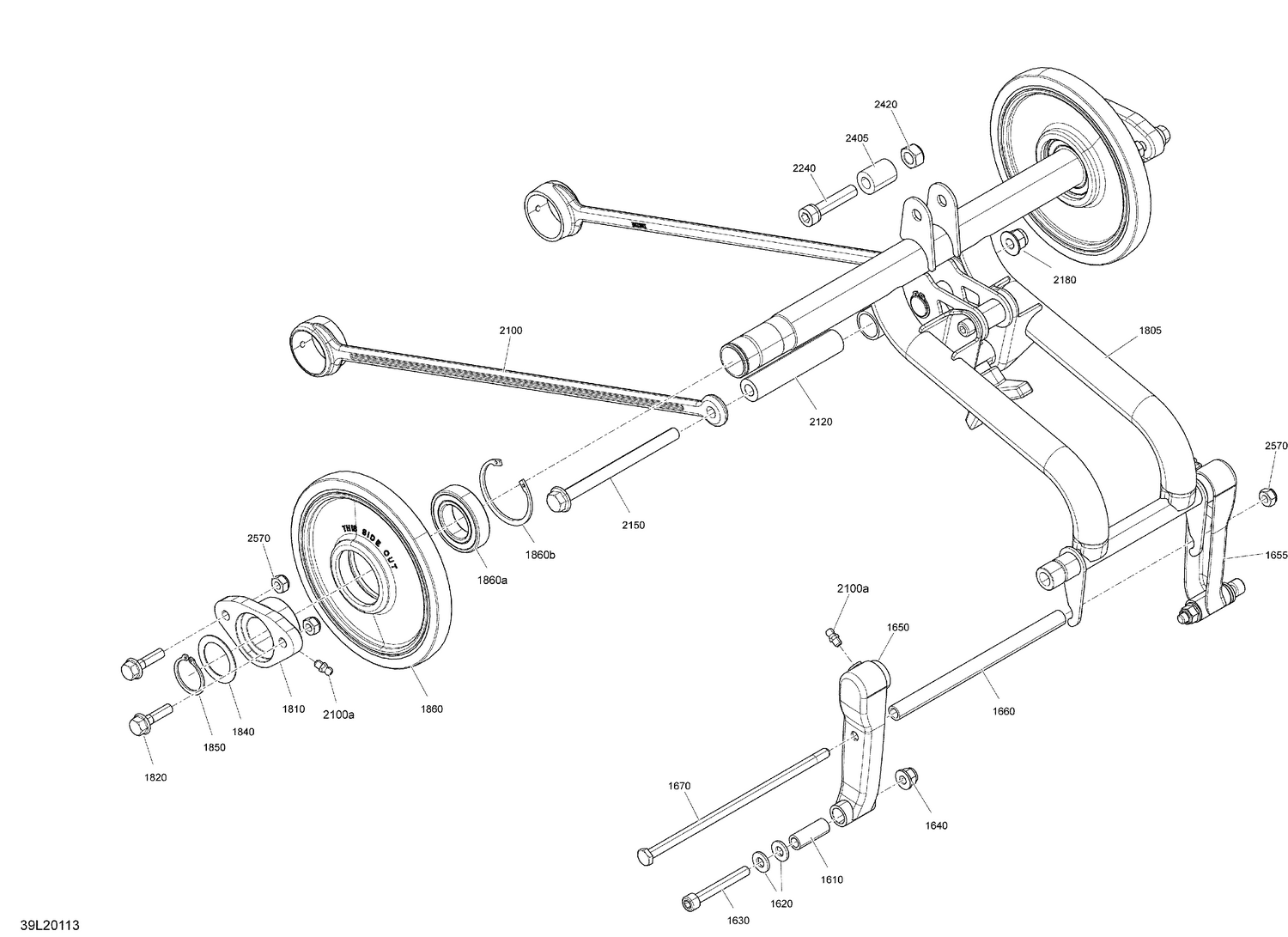

08- Suspension, Rear - System - Upper Section - PRO Touring kit
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1610 | 503194726 | Pivot Arm Axle |
| 1620 | 503192494 | Washer |
| 1630 | 205086044 | SOCKET HEAD SCREW M8 X 60 - Call your local BRP dealership |
| 1640 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1650 | 503195357 | LH Rear Swing Arm Ass'y |
| 1655 | 503195358 | RH Rear Swing Arm Ass'y |
| 1660 | 503195051 | Spacer |
| 1670 | 503195344 | Bolt M8 |
| 1805 | 503195361 | Rear Arm Ass'y |
| 1810 | 503195042 | Cushion |
| 1820 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1840 | 503195150 | Shim Ring 30X42X1.0 |
| 1850 | 293370143 | Circlip |
| 1860 | 503195041 | Wheel Ass'y 170 MM |
| 1860a | 503190396 | Ball Bearing |
| 1860b | 415129371 | Retaining Ring |
| 2100a | 408200700 | Grease Fitting |
| 2120 | 503194457 | Rod Shaft |
| 2150 | 230603044 | Hex. Flanged Screw DIN.6921 |
| 2180 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 2240 | 40134 | Screw Socket HD.DIN 912 |
| 2405 | 5446652 | Bushing |
| 2420 | 232500416 | Elastic Stop Nut M10 |
