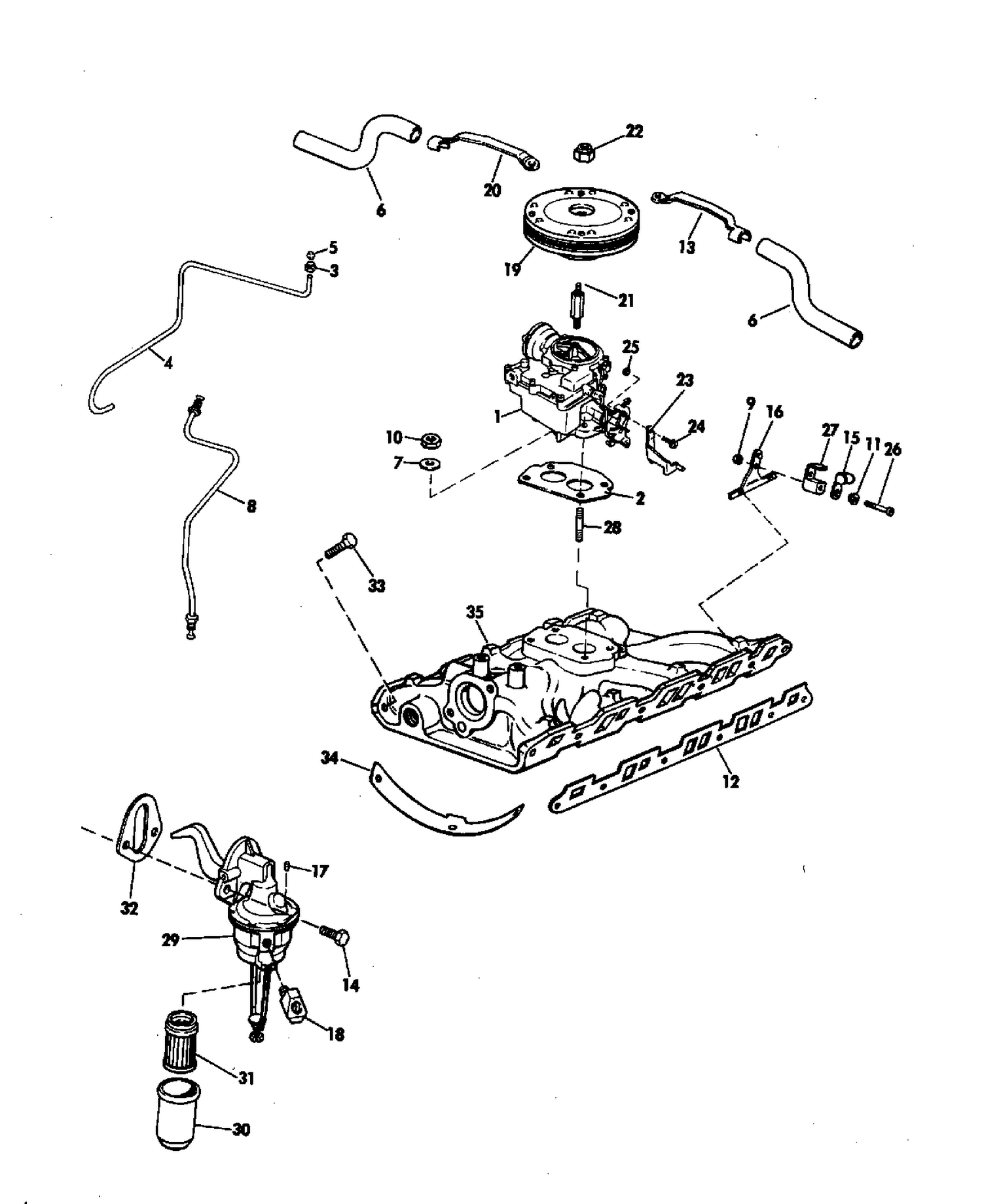

| Ref | Part Number | Description |
|---|
| 1 |
0382132 |
CARBURETOR & BASKET ASSEMBLY |
| 2 |
0312240 |
GASKET, Carb to manf 155 |
| 3 |
0306345 |
NUT, Tube |
| 4 |
0312715 |
TUBE, Carburetor to heat exchanger |
| 5 |
0306344 |
BALL SLEEVE |
| 6 |
3852435 |
HOSE Crankcase vent, 9" (229 mm) This part replaces 0312152. |
| 8 |
0381667 |
FUEL LINE ASSEMBLY |
| 11 |
0310688 |
SAPCER, Anchor block |
| 12 |
0312737 |
GASKET, Manifold to head |
| 13 |
0314058 |
CONNECTOR |
| 14 |
9417259 |
SCREW, Pump to engine |
| 15 |
0310687 |
DETENT SPRING, Anchor block |
| 16 |
0312716 |
BRACKET, Throttle cable |
| 17 |
0313333 |
PLUB, Fuel pump vent |
| 18 |
0310924 |
CLAMP, Main cable to adapter |
| 19 |
0382878 |
FLAME ARRESTOR |
| 20 |
0314058 |
CONNECTOR |
| 21 |
0310890 |
STUD, Flame arrestor |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 23 |
0381046 |
THROTTLE LEVER & PIN |
| 24 |
0307057 |
SCREW, Lever to carburetor |
| 25 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 26 |
0308238 |
SCERW,Anchor block |
| 27 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 28 |
0551830 |
STUD, Carburetor mounting |
| 29 |
0381688 |
FUEL PUMP & GASKET ASSY |
| 30 |
0381689 |
REPAIR KIT |
| 31 |
0381690 |
FILTER & BOWL GASKET |
| 32 |
0384154 |
BOWL & GASKET |
| 33 |
1371336 |
BOLT, Manifold to head, 3/8-16 x 1-3/8" |
| 34 |
1357738 |
SEAL |
