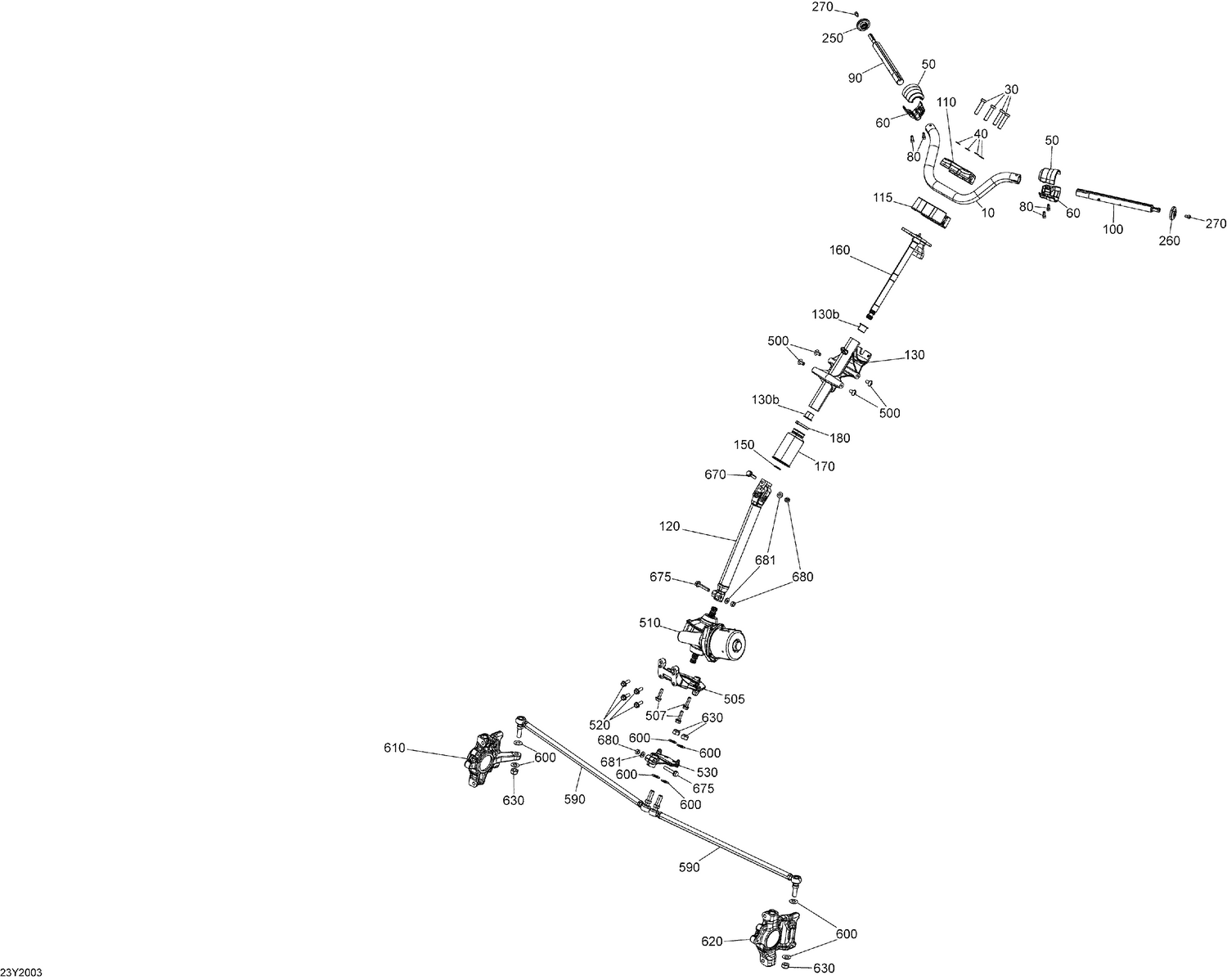

| Ref | Part Number | Description |
|---|
| 30 |
250000997 |
Thin Socket Screw, Scotch Grip, M10 |
| 40 |
250200105 |
Stainless Flat Washer, 10 mm |
| 50 |
709401914 |
Carbon Black, Upper Clamp |
| 60 |
709401916 |
Carbon Black, Lower Clamp |
| 80 |
205561660 |
Socket Head Screw M6 X 16, Scotch Grip |
| 90 |
709401939 |
RH Handlebar Tube |
| 100 |
709401952 |
LH HandleBar Tube |
| 110 |
709401904 |
Black, Central Handle Clamp |
| 115 |
709401906 |
Black, Central Handle Support |
| 120 |
709402421 |
Steering Column |
| 130b |
709402725 |
Steering Bushing This part replaces 709401733. |
| 150 |
709000089 |
O-Ring |
| 160 |
709401397 |
Upper Steering Column |
| 170 |
709400790 |
Bellows |
| 180 |
414115200 |
Tie-Rap 180 mm |
| 250 |
709402578 |
Handlebar End-Piece RH |
| 260 |
709402579 |
Handlebar End-Piece LH |
| 270 |
205061054 |
Screw-Socket Hd.Din.912 |
| 500 |
250000751 |
Torx Screw M8 X 16 |
| 505 |
709401771 |
DPS Support |
| 507 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 510 |
709402730 |
Power Steering Ass'y This part replaces 709402437. |
| 520 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 530 |
709401760 |
Pitman Arm |
| 590 |
709401820 |
Tie Rod Ass'y |
| 600 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 610 |
709402236 |
RH Knuckle Assembly |
| 620 |
709402233 |
LH Knuckle Assembly |
| 630 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 670 |
250001021 |
Hex. Flange Screw M8 X 35 |
| 675 |
207584587 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 680 |
232081417 |
Hex. Nut M8 |
