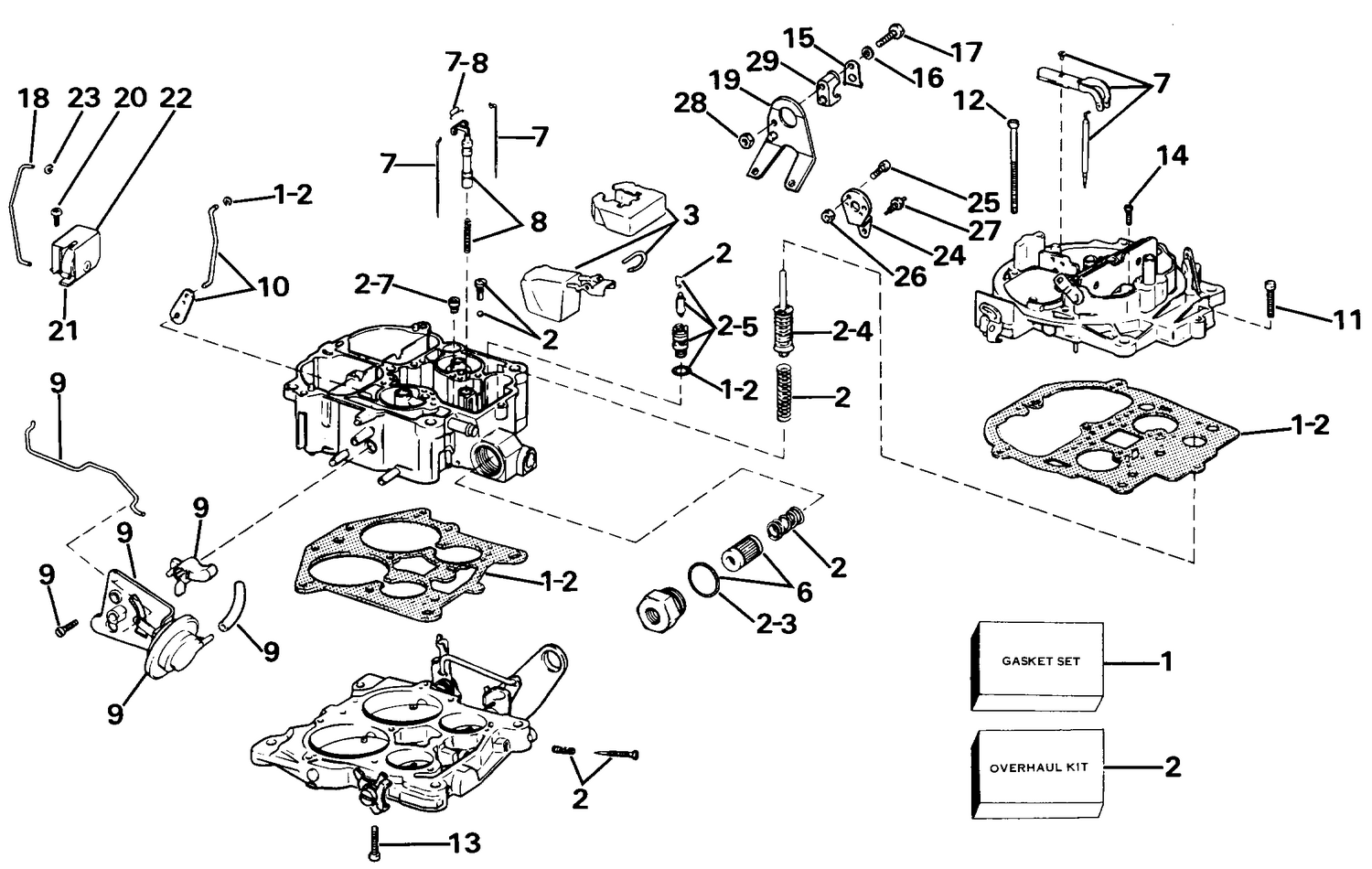

CARBURETOR GROUP - 4V
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0983864 | CARB. REPAIR KIT This part replaces 0983865. |
| 2 | 0983864 | CARB. REPAIR KIT |
| 3 | 0983871 | FLOAT & INSERT ASSY. |
| 4 | 0983872 | FLOAT & INSERT PKG |
| 5 | 0983873 | NEEDLE & SEAT ASSY |
| 6 | 0983870 | FILTER, Fuel inlet |
| 7 | 0983869 | METERING JET & ROD PKG |
| 8 | 0983868 | POWER PISTON ASSY |
| 9 | 0983867 | VACUUM BREAK ASSY |
| 10 | 0983866 | CHOKE LINK & LEVER pkg |
| 11 | 17063591 | SCREW, Air horn |
| 12 | 17063592 | SCREW, Air horn |
| 13 | 7035790 | SCREW Throttle body |
| 14 | 17073293 | SCREW, Air horn |
| 15 | 0909790 | RETAINER |
| 16 | 0328737 | RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 17 | 0309654 | SCREW |
| 18 | 3998966 | CHOKE, Rod |
| 19 | 0983063 | BRACKET ASSY, Lift |
| 20 | 0273513 | SCREW, Choke |
| 21 | 0326079 | THERM ASSY, Choke |
| 22 | 3998944 | COVER, Bi-metal choke |
| 23 | 3989067 | CLIP, Bi-metal choke |
| 24 | 0912809 | THROTTLE LEVER This part replaces 0910843. |
| 27 | 0910468 | PIN, Lever |
| 0983438 | 0983438 | CARBURETOR ASSY. |
