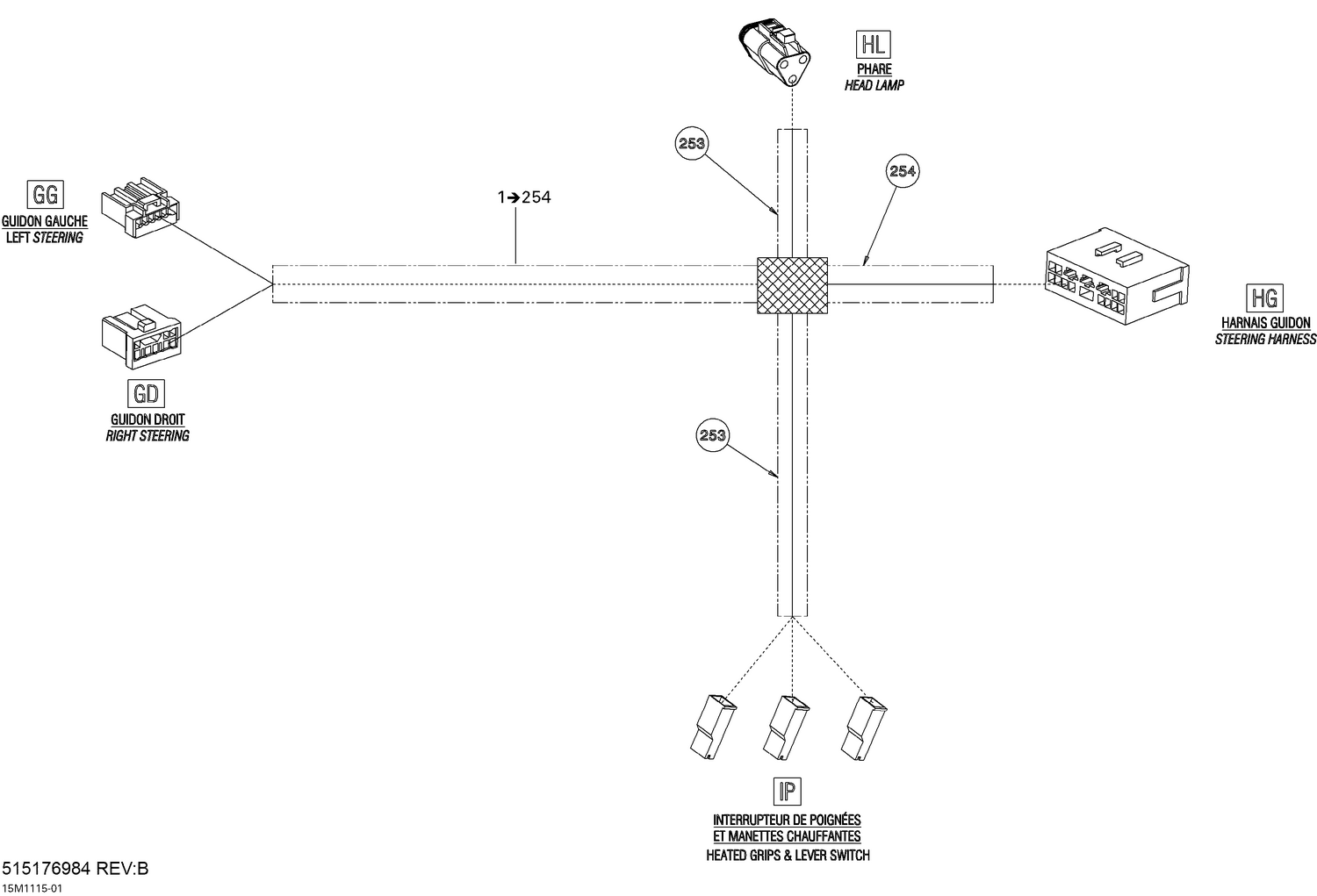

| Ref | Part Number | Description |
|---|
| GD |
515175231 |
Female Terminal |
| GD |
515175819 |
Female Terminal Housing, 8 Circuits |
| GG |
515175231 |
Female Terminal |
| GG |
515175543 |
Female Terminal Housing, 6 Circuits |
| HG |
515175232 |
Male Terminal |
| HG |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| HG |
515175351 |
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| HL |
278000632 |
Female Terminal |
| HL |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| HL |
409207200 |
Female Lock |
| IP |
409010100 |
Female Terminal |
| IP |
409010400 |
Female Terminal Housing, 1 Circuit |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
