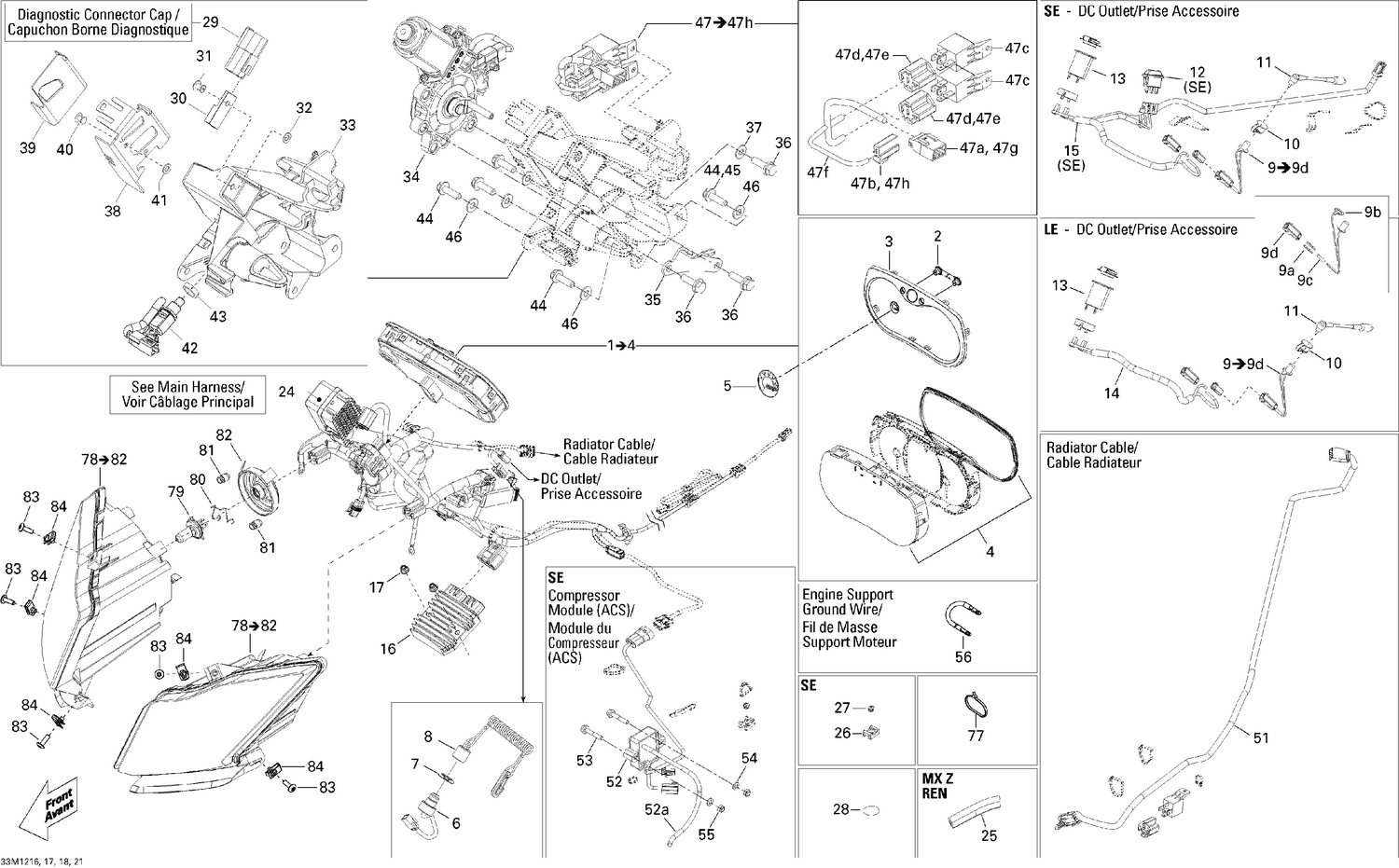

10- Electrical System
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 6 | 515177249 | DESS Switch |
| 7 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 8 | 515178284 | DESS This part replaces 515177057. |
| 9 | 515177837 | Visor Harness This part replaces 515177187. |
| 9a | 515175232 | Male Terminal |
| 9b | 515175172 | OPEN BARREL - Call your local BRP dealership |
| 9c | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 9d | 515175654 | Male Terminal Housing, 2 Circuits |
| 10 | 572103300 | Cap |
| 11 | 515175851 | Extension |
| 13 | 710001248 | DC Outlet |
| 16 | 710010539 | Voltage Regulator This part replaces 278002021. |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 24 | 515177107 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 29 | 515176234 | FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 30 | 270000141 | Clip |
| 31 | 390402200 | Pop Rivet 3/16" |
| 32 | 234051410 | Flat Washer M5 |
| 33 | 515177044 | PLATE - Call your local BRP dealership |
| 34 | 515178574 | Electrical Motor Ass'y This part replaces 515177038. |
| 35 | 515177039 | PLATE - Call your local BRP dealership |
| 36 | 207662044 | Hex. Flange Screw M6 X 20 |
| 37 | 224061121 | Flat Washer |
| 38 | 515177549 | Fuse Support - Call Your Local BRP Dealership This part replaces 515176514. |
| 39 | 515176637 | PROTECTOR - Call your local BRP dealership |
| 40 | 390402200 | Pop Rivet 3/16" |
| 41 | 234051410 | Flat Washer M5 |
| 42 | 515176472 | Switch Ass'y |
| 43 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 44 | 210262040 | Hex. Flange Screw M6 X 20 |
| 45 | XXX | Not Available As Spare Parts |
| 46 | 250200039 | Flat Washer |
| 47 | 515176760 | REVERSE CABLE - Call your local BRP dealership |
| 47a | 515175232 | Male Terminal |
| 47b | 515175282 | Female Terminal |
| 47c | 710010053 | Relay This part replaces 410113200. |
| 47d | 409209900 | Female Housing, 5 Circuits |
| 47e | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| 47f | 219704407 | Tubing 10 MM 1000MM Long |
| 47g | 515175846 | Male Terminal Housing, 4 Circuits |
| 47h | 515176550 | Female Terminal Housing |
| 51 | 515177646 | Fan Harness This part replaces 515177105. |
| 56 | 515177289 | Ground Wire This part replaces 515176861. |
| 77 | 293750001 | Tie Wrap 94 mm |
| 77 | 293750002 | Tie Wrap 142 mm |
| 77 | 293750008 | Tie Wrap 368 mm |
| 77 | 293750027 | Tie-Rap 206 mm |
| 77 | 414115200 | Tie-Rap 180 mm |
| 79 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 80 | 515176493 | BULB HOLDER - Call your local BRP dealership |
| 81 | 515176498 | Cap |
| 82 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 83 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
