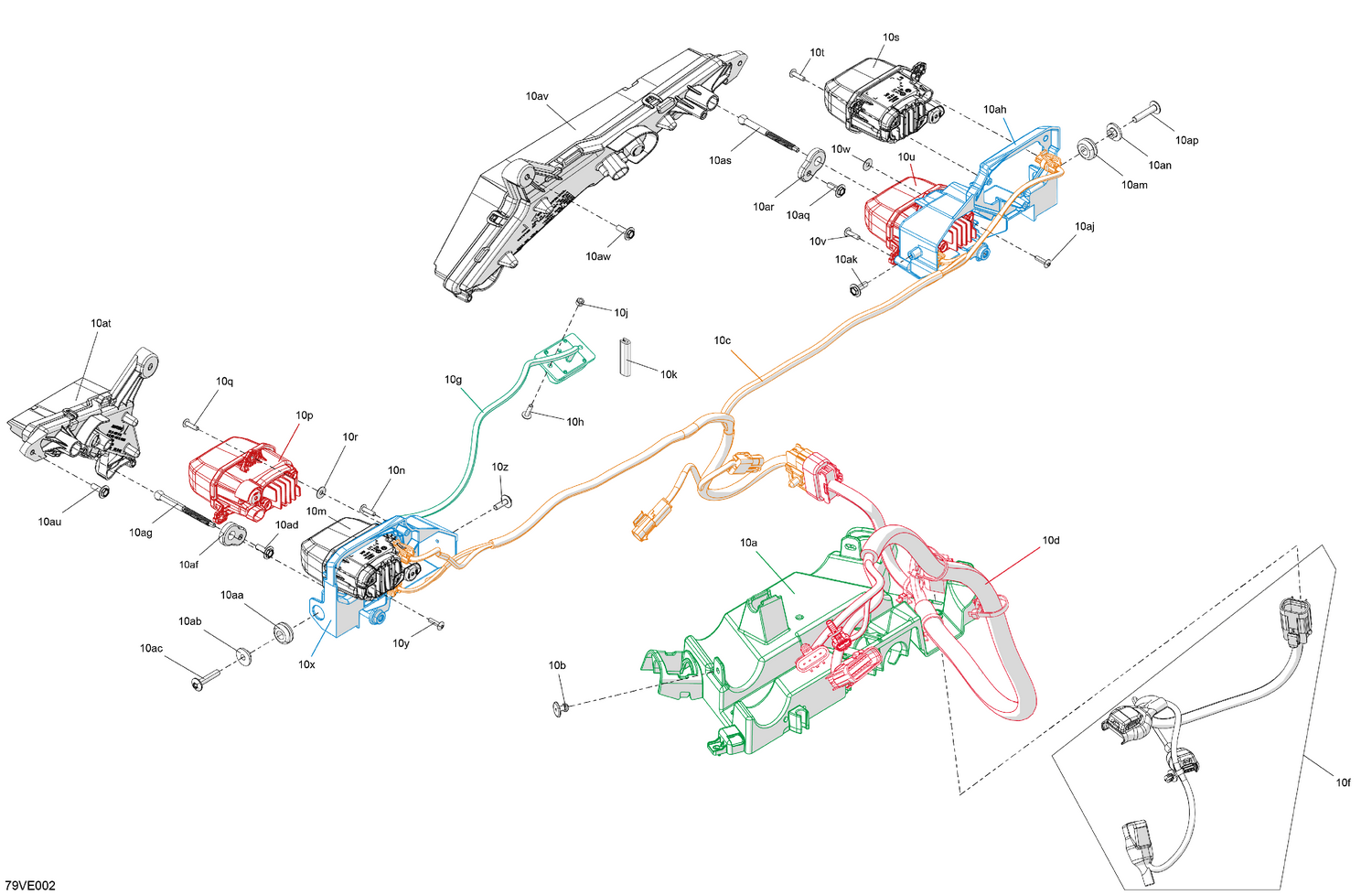

08- Electric - Front Section
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710007813 | Multi Porpuse Support |
| 10aa | 293720130 | Overmolded Grommet |
| 10ab | 710004749 | Shoulder Bushing |
| 10ac | 250000842 | Stainless, Torx Screw M6 X 30 |
| 10ad | 250000959 | Screw PT Type K-50 X 16 |
| 10af | 293900157 | Ball Socket |
| 10ag | 710005837 | Ajustment Screw |
| 10ah | 708500014 | RH Front Headlight Support |
| 10aj | 250000759 | Torx Truss Pt K40 X 16 |
| 10ak | 250000959 | Screw PT Type K-50 X 16 |
| 10am | 293720130 | Overmolded Grommet |
| 10an | 710004749 | Shoulder Bushing |
| 10ap | 250000842 | Stainless, Torx Screw M6 X 30 |
| 10aq | 250000959 | Screw PT Type K-50 X 16 |
| 10ar | 293900157 | Ball Socket |
| 10as | 710005837 | Ajustment Screw |
| 10at | 710007638 | LH Auxiliary LED Light |
| 10au | 250000959 | Screw PT Type K-50 X 16 |
| 10av | 710007644 | RH Auxiliary LED Light |
| 10b | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 10c | 710007725 | Headlight Wiring Harness |
| 10d | 710007724 | Junction Wiring Harness |
| 10f | 710007357 | Differential Wiring Harness |
| 10g | 710007892 | Camera |
| 10h | 250000797 | Torx Head Screw M4 X 16 |
| 10j | 232541484 | Elastic Stop Nut M4 |
| 10k | 219704548 | Edge Cut Trim 1000Mm |
| 10m | 710008089 | Low Beam Light |
| 10n | 250000759 | Torx Truss Pt K40 X 16 |
| 10p | 710006911 | High Beam Light |
| 10q | 250000759 | Torx Truss Pt K40 X 16 |
| 10r | 517309027 | Washer Cal |
| 10s | 710008089 | Low Beam Light |
| 10t | 250000759 | Torx Truss Pt K40 X 16 |
| 10u | 710006911 | High Beam Light |
| 10v | 250000759 | Torx Truss Pt K40 X 16 |
| 10w | 517309027 | Washer Cal |
| 10x | 708500013 | LH Front Headlight Support |
| 10y | 250000759 | Torx Truss Pt K40 X 16 |
| 10z | 250000959 | Screw PT Type K-50 X 16 |
