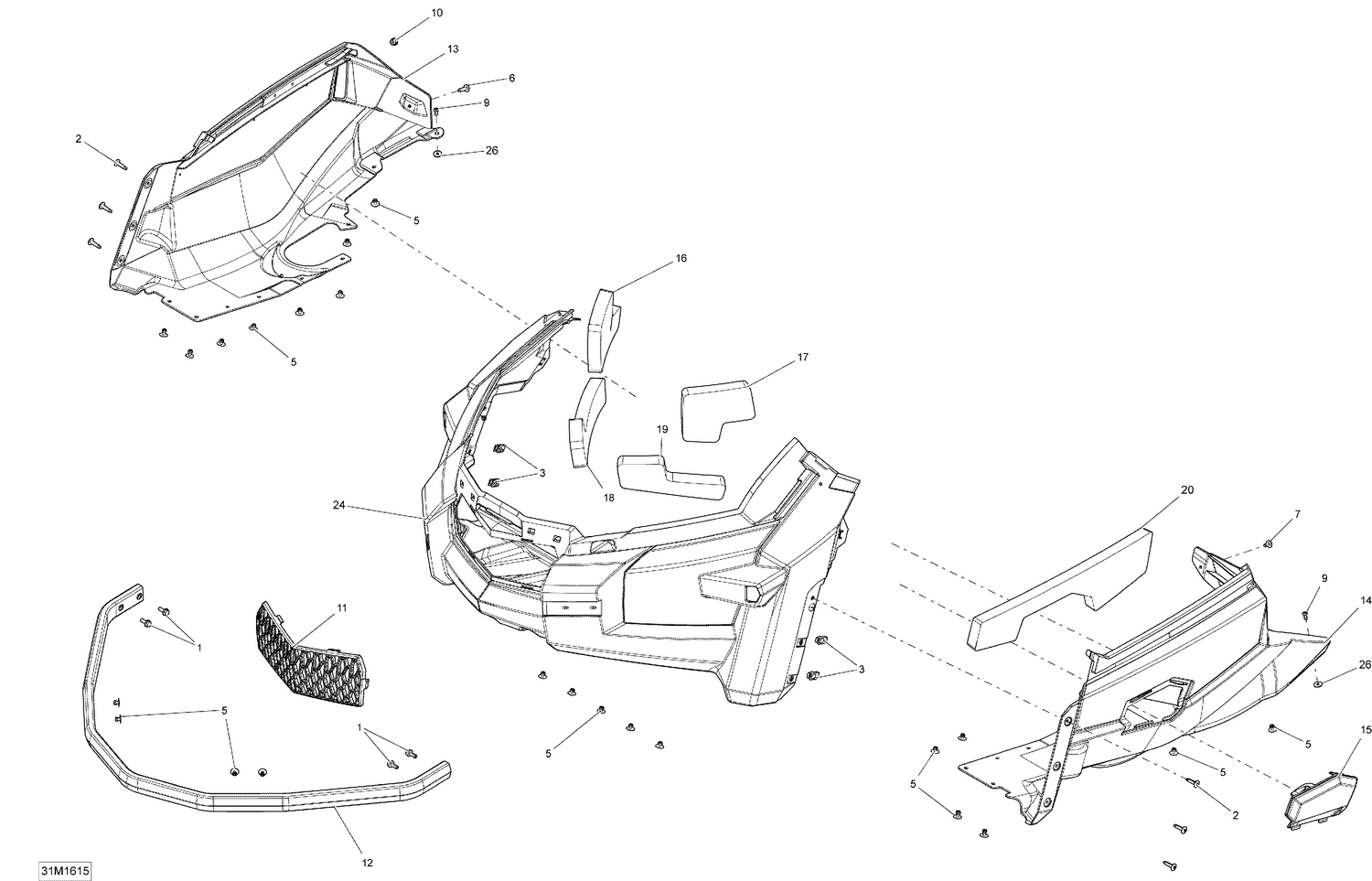

09- Bottom Pan
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 250000618 | Torx Screw M6 X 25 |
| 3 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 5 | 293150104 | Pop Rivet 3/16" |
| 6 | 250000705 | Torx Truss Screw M6 X 20 |
| 7 | 250000767 | Torx Truss Screw M6 X 12 |
| 9 | 390402300 | Pop Rivet 3/16" |
| 10 | 293450275 | Insert |
| 11 | 502006887 | Botton Pan Grille |
| 12 | 502007121 | Black Front Bumper |
| 13 | 502006965 | Black RH Bottom Pan |
| 14 | 502006966 | Black LH Bottom Pan |
| 15 | 502006970 | Black Bottom Pan Door |
| 16 | 502007204 | RH Upper Bottom Pan Foam |
| 17 | 502007205 | LH Upper Bottom Pan Foam |
| 18 | 502007206 | RH Lower Bottom Pan Foam |
| 19 | 502007207 | LH Lower Bottom Pan Foam |
| 20 | 502007208 | LH Bottom Pan Foam |
| 24 | 502007361 | Black, Bottom Pan |
