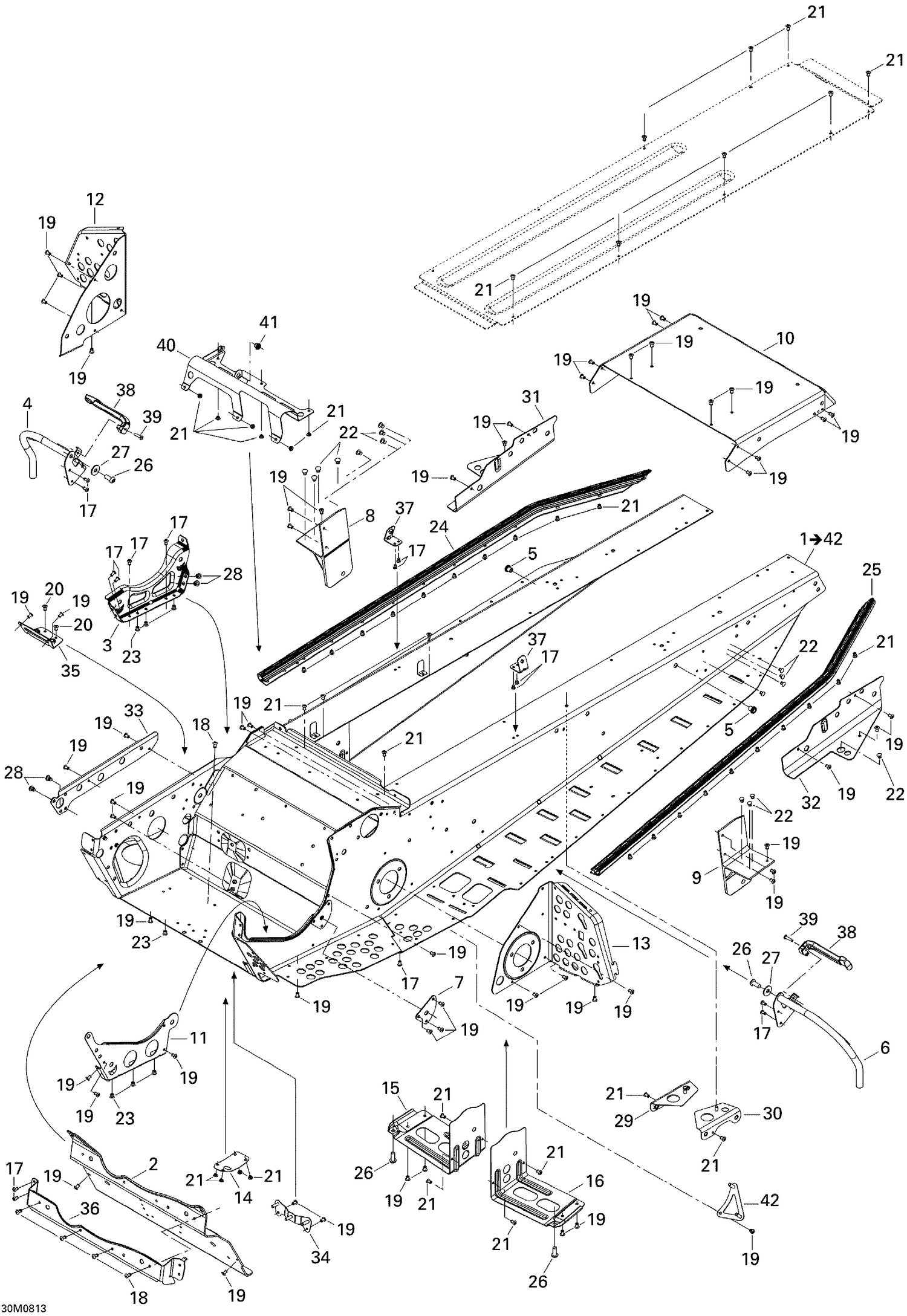

| Ref | Part Number | Description |
|---|
| 2 |
518325042 |
FRONT PAN - Call your local BRP dealership |
| 3 |
518323346 |
ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 4 |
518324162 |
RH TOE HOLD SUPPORT - Call your local BRP dealership |
| 5 |
293450275 |
Insert This part replaces 415107300. |
| 6 |
518324163 |
LH TOE HOLD SUPPORT - Call your local BRP dealership |
| 7 |
518323507 |
OUTER REINFORCEMENT - Call your local BRP dealership |
| 8 |
518325343 |
RH Slide Bracket |
| 9 |
518325344 |
LH SLIDE BRACKET - Call your local BRP dealership |
| 10 |
518324199 |
FRAME EXTENTION - Call your local BRP dealership |
| 11 |
518323995 |
INNER REINFORCEMENT - Call your local BRP dealership |
| 12 |
518323805 |
RH Footrest Reinforcement |
| 13 |
518324527 |
LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 14 |
518324169 |
PLATE - Call your local BRP dealership |
| 15 |
518325345 |
RH Footrest Reinforcement, Black |
| 16 |
518325346 |
LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership |
| 17 |
390909200 |
Avex Rivet |
| 18 |
390909100 |
Avex Rivet |
| 19 |
390402200 |
Pop Rivet 3/16" |
| 20 |
390402300 |
Pop Rivet 3/16" |
| 21 |
390402400 |
Pop Rivet 3/16" |
| 22 |
Not |
Available As Spare Part - Rivet |
| 23 |
390910300 |
HENROB RIVET - Call your local BRP dealership |
| 24 |
518324957 |
RH ROLLER - Call your local BRP dealership |
| 25 |
518324958 |
LH ROLLER - Call your local BRP dealership |
| 26 |
205982086 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 27 |
234082410 |
Flat Washer 8 mm |
| 28 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 29 |
518324385 |
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership |
| 30 |
518324386 |
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership |
| 31 |
518325039 |
RH TUNNEL LINER - Call your local BRP dealership |
| 32 |
518325040 |
LH Tunnel Liner |
| 33 |
518323328 |
RH TUNNEL STIFFENER - Call your local BRP dealership |
| 34 |
518324599 |
Holder |
| 35 |
518324207 |
HOLDER PLATE - Call your local BRP dealership |
| 36 |
518324220 |
FRONTAL REINFORCEMENT - Call your local BRP dealership |
| 37 |
518324688 |
TRUNK BRACKET - Call your local BRP dealership |
| 38 |
517302448 |
Panel Latch |
| 39 |
390410100 |
Pop Rivet 3/16” |
| 40 |
518323532 |
INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership |
| 41 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450232. |
