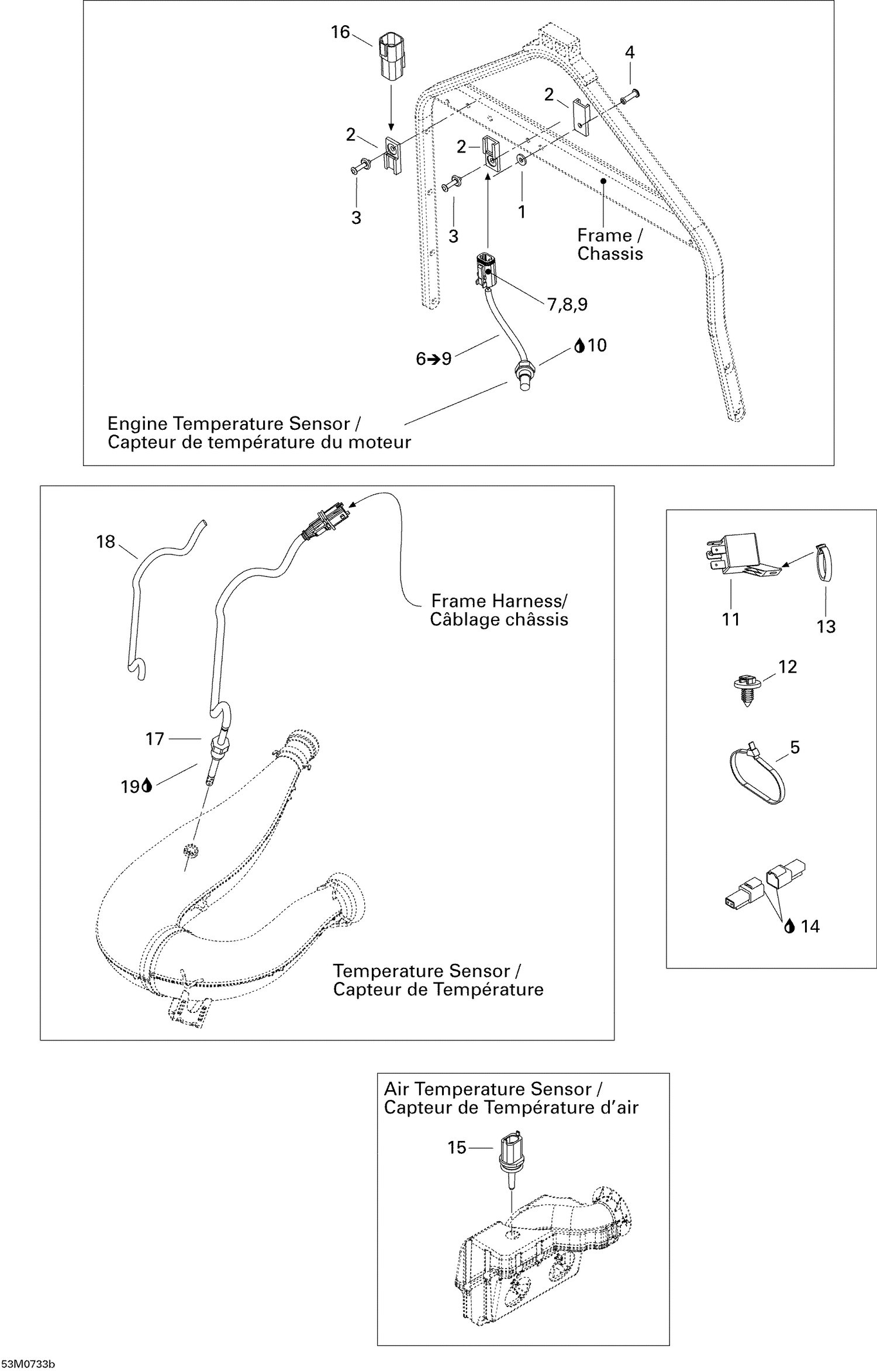

| Ref | Part Number | Description |
|---|
| 1 |
517225900 |
Flat Washer |
| 2 |
270000141 |
Clip This part replaces 515175917. |
| 3 |
293150037 |
Avdel Rivet 3/16" |
| 4 |
390410100 |
Pop Rivet 3/16” |
| 5 |
293750008 |
Tie Wrap 368 mm |
| 7 |
278000739 |
Male Connector, 4 Circuits |
| 8 |
278000632 |
Female Terminal |
| 9 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 10 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 11 |
710010053 |
Relay This part replaces 410113200. |
| 12 |
293730040 |
Mount Dart This part replaces 293730018. |
| 13 |
414115200 |
Tie-Rap 180 mm |
| 14 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 15 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 16 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 17 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 18 |
219704425 |
Tubing 6 Mm 3000Mm Long |
