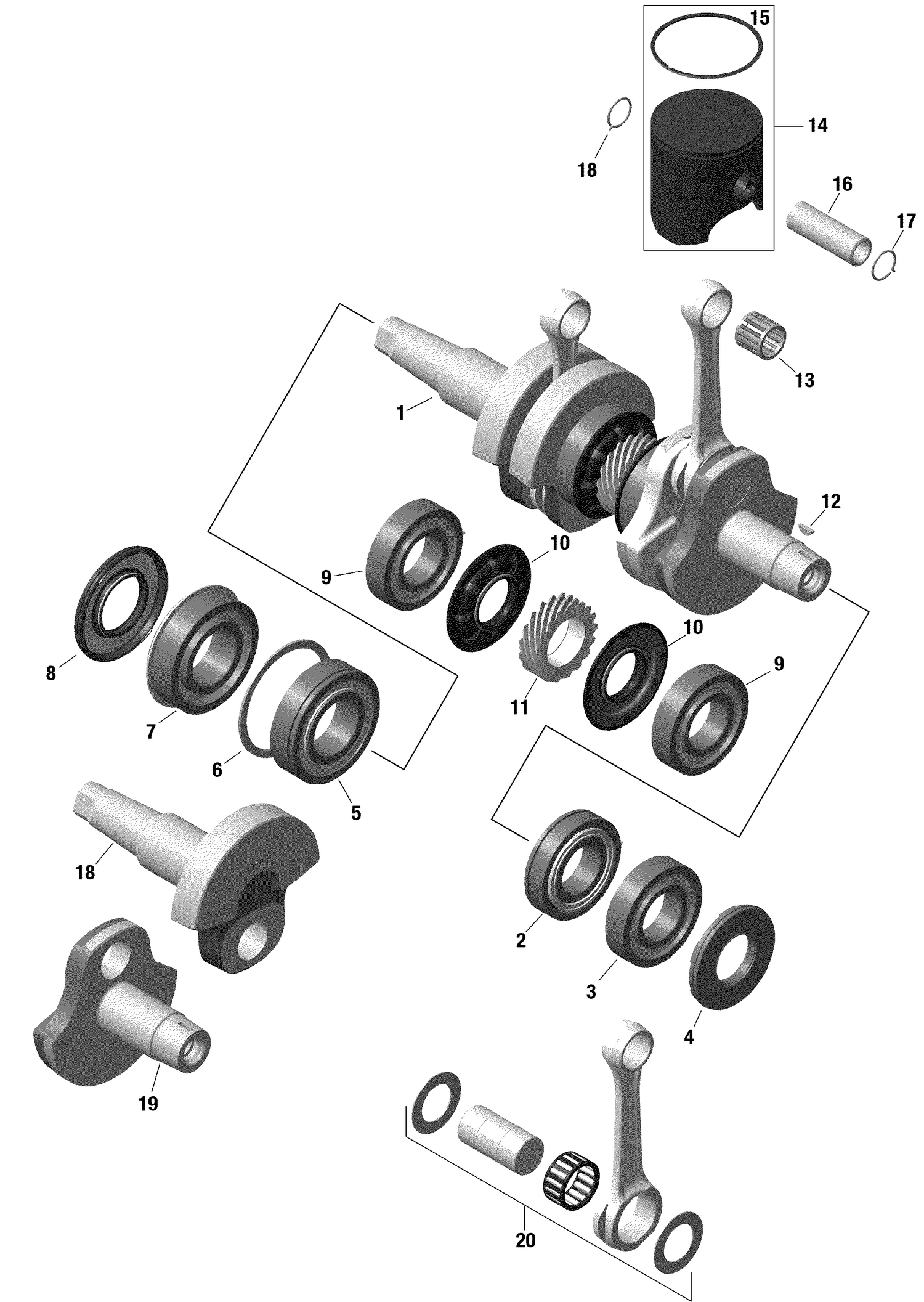

01- Engine - Crankshaft And Pistons - 600R E-TEC
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832175 | Ball Bearing |
| 3 | 420832575 | Ball Bearing 6207 |
| 4 | 420831956 | Oil Seal |
| 5 | 420832672 | Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 6 | 420926190 | Retaining disk |
| 7 | 420832702 | Ball bearing 6208 |
| 8 | 420931284 | Oil Seal |
| 9 | 420832575 | Ball Bearing 6207 |
| 10 | 420931455 | Oil seal |
| 11 | 420834565 | CENTRAL GEAR - Call your local BRP dealership |
| 12 | 420246015 | Woodruff Key |
| 13 | 420832445 | Piston pin bearing |
| 15 | 420815470 | Semi Trapez Ring |
| 16 | 420916412 | Piston Pin |
| 17 | 420845106 | Piston Circlip |
| 18 | Not | Available As Spare Part - Crnakshaft PTO Side |
| 19 | Not | Available As Spare Part - Crnakshaft MAG Side |
| 20 | 420890959 | Rod repair kit (MAG side) |
