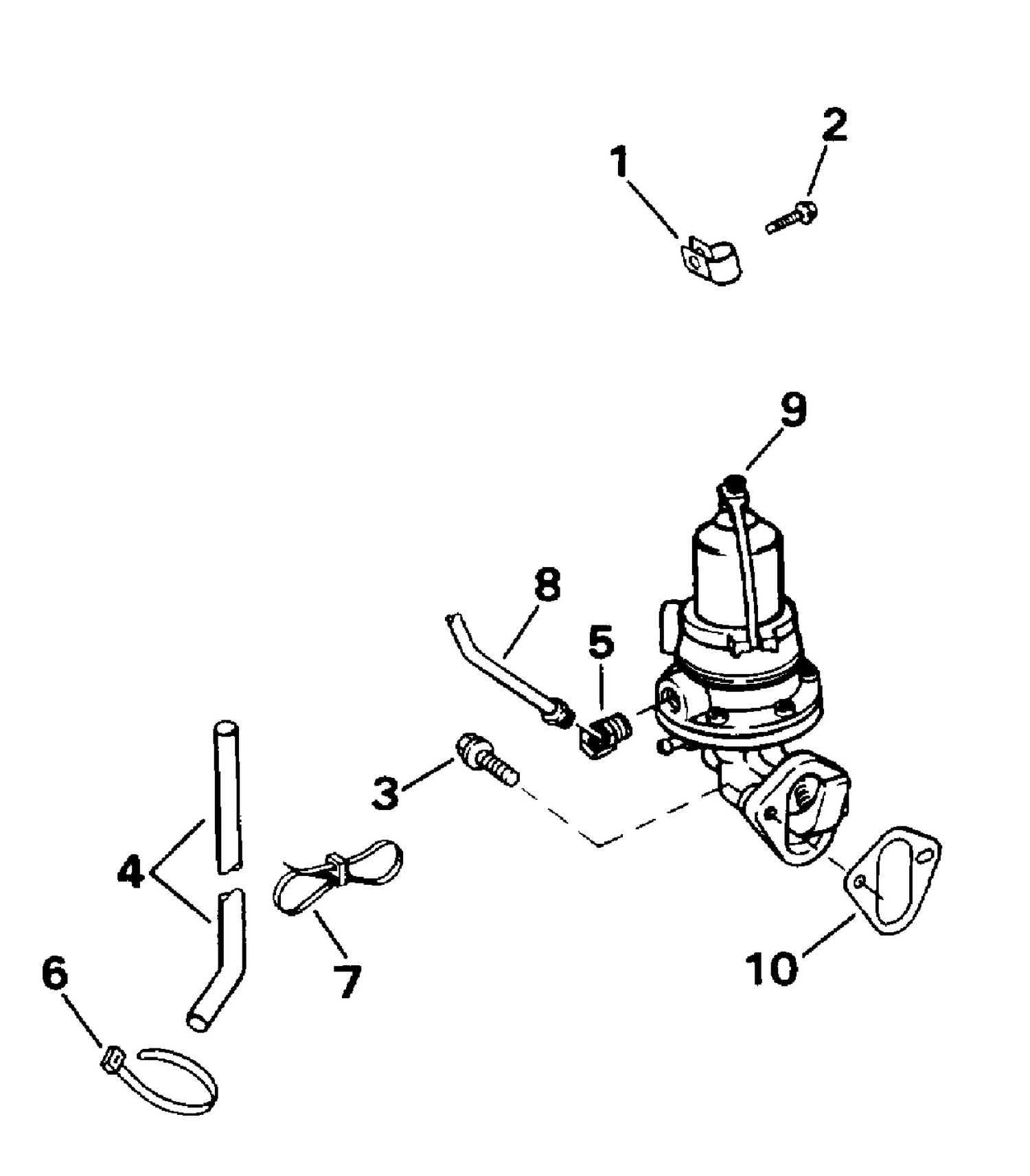

FUEL PUMP & FILTER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3852427 | CLAMP, Fuel line to bracket |
| 2 | 3852473 | SCREW, Cap to gimbal |
| 3 | 3853397 | SCREW, Bracket to engine |
| 4 | 0909938 | HOSE, Fuel overflow This part replaces 3854242. |
| 5 | 3852453 | FITTING, Cover, return line |
| 6 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 8 | 3854869 | FUEL LINE, Pump to carburetor |
| 9 | 3854858 | FUEL PUMP |
| 3855104 | 3855104 | FILTER & GASKET |
