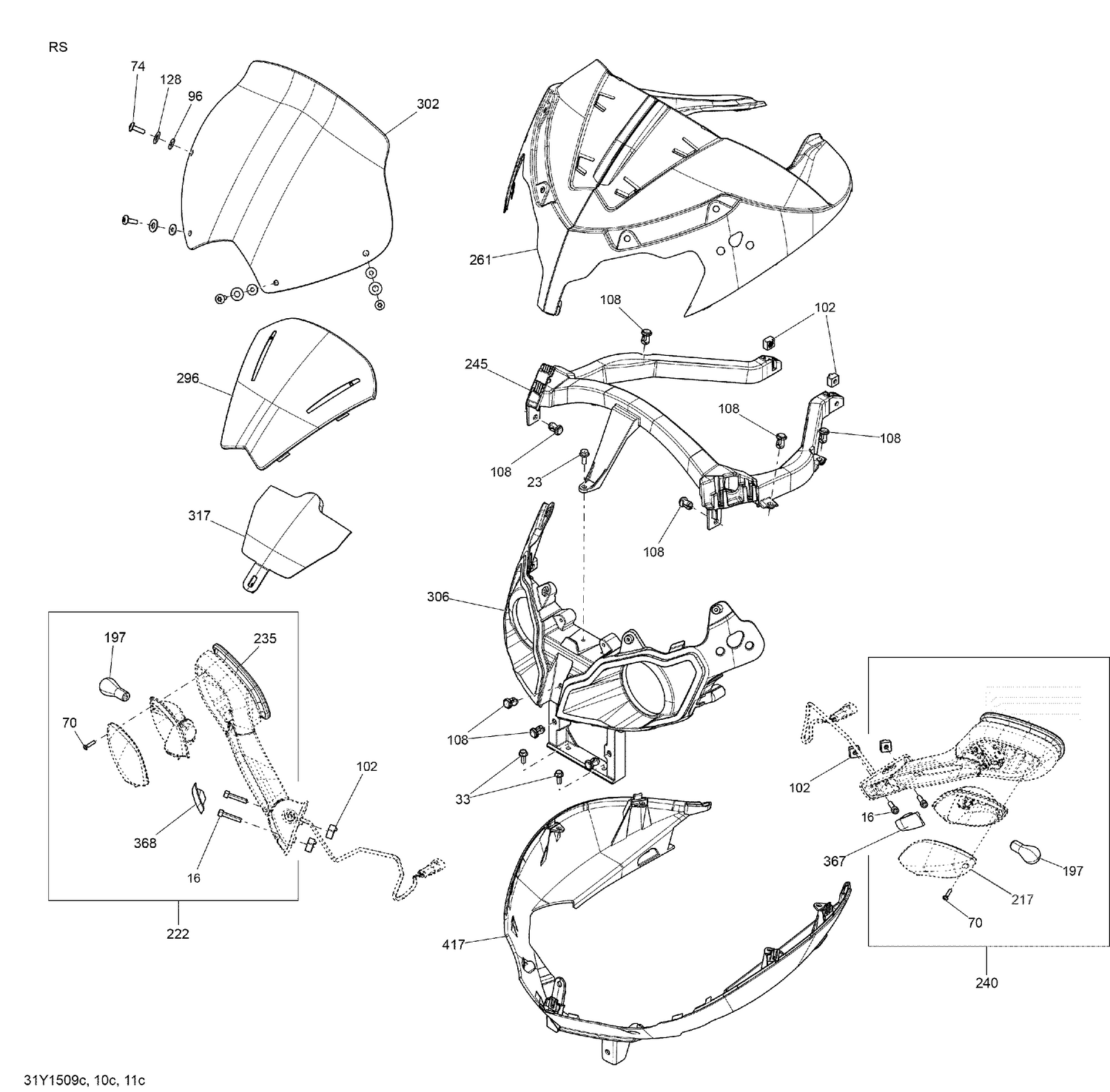

| Ref | Part Number | Description |
|---|
| 16 |
250000417 |
ALLEN SCREW M6 X 30 - Call your local BRP dealership |
| 23 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 47 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 70 |
219800049 |
SCREW M3.9 X 19 - Call your local BRP dealership |
| 74 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 96 |
250200024 |
Rubber Washer 5 mm |
| 102 |
269500725 |
M6 Nut Housing Ass'y |
| 108 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 128 |
234062670 |
Stainless Steel Flat Washer |
| 197 |
219800046 |
BULB 12V 21W, AMBER - Call your local BRP dealership |
| 217 |
219800047 |
LH MIRROR LENS - Call your local BRP dealership |
| 222 |
705005575 |
RH Mirror Ass'y |
| 235 |
219800048 |
RH MIRROR LENS - Call your local BRP dealership |
| 240 |
705005574 |
LH Mirror Ass'y |
| 245 |
705001548 |
Console Support |
| 261 |
705002082 |
Upper Console |
| 296 |
705002712 |
UPPER CONSOLE DEFLECTOR - Call your local BRP dealership |
| 302 |
219800077 |
WINDSHIELD - Call your local BRP dealership |
| 306 |
705004795 |
BLACK UPPER HEADLAMP - Call your local BRP dealership |
| 317 |
705009360 |
Guide Chart |
| 367 |
705002704 |
LH MIRROR CAP - Call your local BRP dealership |
| 368 |
705002705 |
RH MIRROR CAP - Call your local BRP dealership |
| 417 |
705005882 |
Lower Console |
| 502 |
705007642 |
Center Panel This part replaces 705007646. |
| 523 |
705005574 |
LH Mirror Ass'y |
