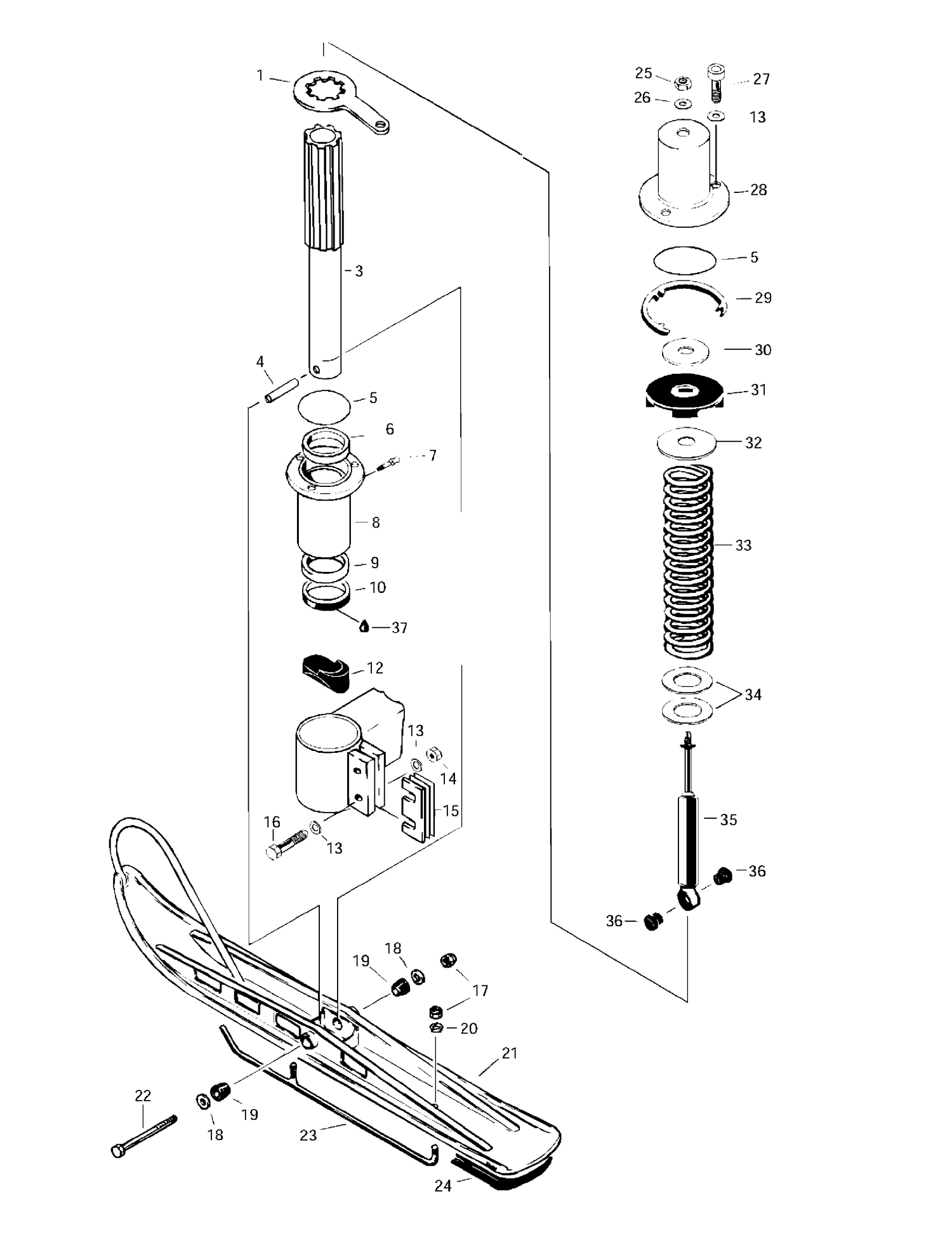

| Ref | Part Number | Description |
|---|
| M5340387 |
Leg |
Housing L.H M5340387 |
| M5440594 |
Douille |
LTS 5 mm M5440594 |
| M5440594 |
LTS |
Bushing 5 mm M5440594 |
| 1 |
5340383 |
Steering Arm 8Te This part replaces M5340383. |
| 3 |
M5240384 |
Ski Leg |
| 4 |
549716 |
Ski Cushion This part replaces M549716. |
| 5 |
M5440031 |
O-Ring |
| 6 |
414803100 |
Upper Cushion |
| 7 |
M34100 |
Grease Fitting |
| 8 |
M5340388 |
Leg Housing R.H |
| 9 |
414803200 |
Lower Cushion |
| 10 |
316373 |
Seal - Call your local BRP dealership This part replaces M316373. |
| 12 |
M5341750 |
STOPPER - Call your local BRP dealership |
| 13 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 14 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 15 |
M5440595 |
LTS Bushing 4 mm |
| 16 |
M40286 |
Socket Head Screw M8 X 45 |
| 17 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 18 |
M20012 |
WASHER-BLACK - Call your local BRP dealership |
| 19 |
547543 |
Cone Rubber This part replaces M547543. |
| 20 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 21 |
M528870 |
Welded Ski |
| 22 |
M40338 |
Screw |
| 23 |
M536131 |
Carbide Ski Runner |
| 24 |
ME52930541 |
Standard Plastic Ski Liner 155 mm |
| 25 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 26 |
M20015 |
Lock Washer |
| 27 |
M40286 |
Socket Head Screw M8 X 45 |
| 28 |
M5240019 |
Welded cover |
| 29 |
503145600 |
SPACER - Call your local BRP dealership |
| 30 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M5440399. |
| 31 |
570025800 |
Stopper |
| 32 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M549432. |
| 33 |
M549756 |
Spring |
| 34 |
549493 |
Washer This part replaces M549493. |
| 35 |
M23017 |
Shock |
| 36 |
572034500 |
Cushion |
