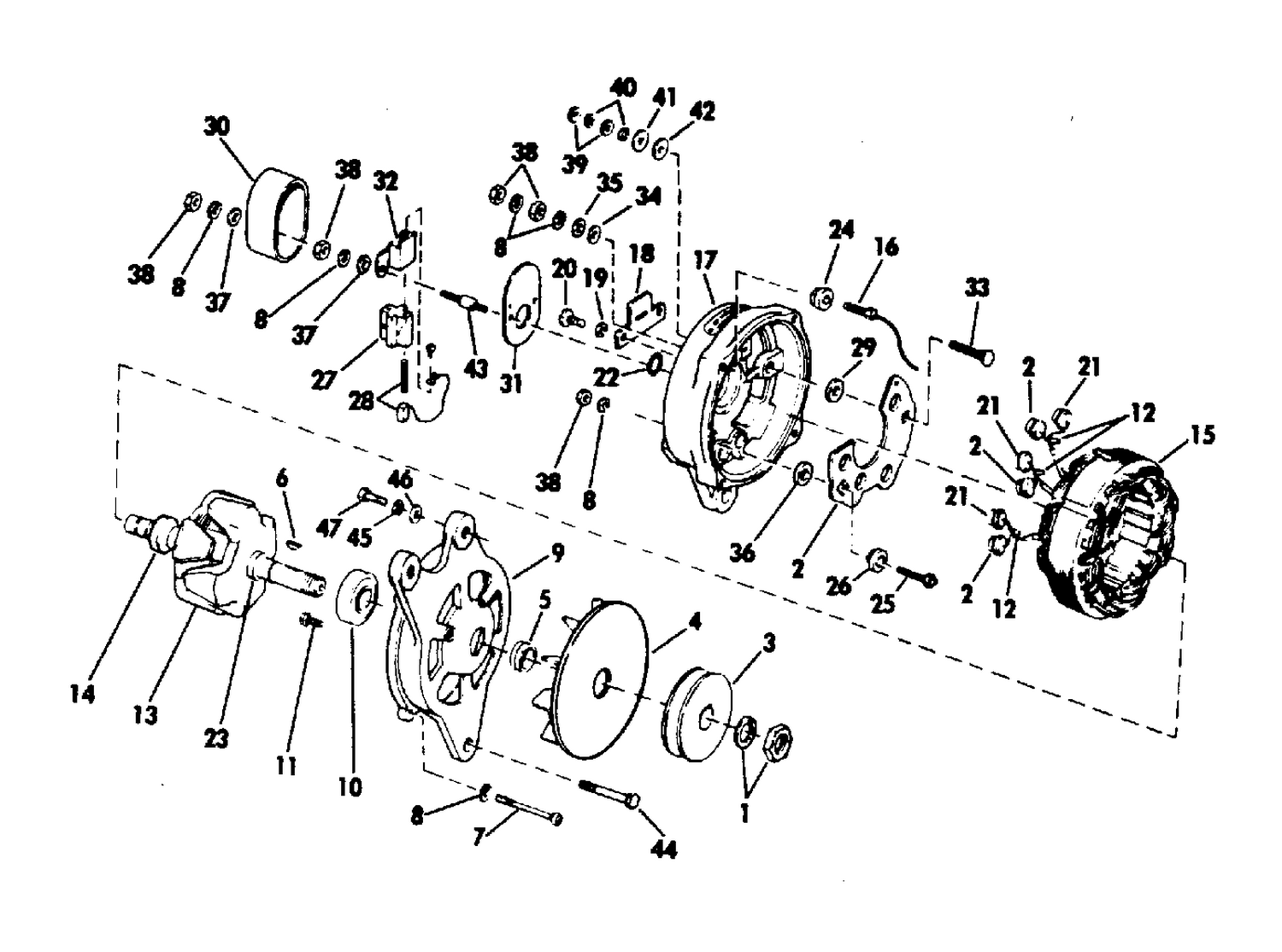

| Ref | Part Number | Description |
|---|
| 1 |
0982275 |
NUT & L'WASHER ASSY |
| 2 |
0383897 |
PL & RECT ASSY, Pos |
| 3 |
0311312 |
PULLEY, Drive |
| 4 |
0311313 |
FAN,Ventilating |
| 5 |
0311301 |
SPACER,Rotor shaft |
| 6 |
0311315 |
KEY, Rotor shaft |
| 7 |
0981678 |
THRU BOLT PACKAGE |
| 9 |
0981675 |
HEAD ASSEMBLY,Drive end |
| 12 |
0382009 |
EVELET PACKAGE |
| 13 |
0981676 |
ROTOR & BEARING ASSY |
| 15 |
0981677 |
STATOR ASSEMBLY |
| 17 |
0981674 |
HEAD ASSEMBLY,Slip ring end |
| 19 |
LOCKWASHER,Insul.10 |
Ref: 20 SCREW,Insulation,10-32 |
| 22 |
0313048 |
O RING |
| 23 |
0312486 |
RETAINER, Felt washer |
| 27 |
0382005 |
BR HLDRS ASSY |
| 30 |
0909127 |
COVER, Slip ring |
| 31 |
0313047 |
PL, Back-up, br bldr |
| 43 |
0909174 |
STUD, Cover slip ring |
| 44 |
0201809 |
SCEW,Starter to cylinder |
| 0981581 |
0981581 |
ALTERNATOR ASSY,Complete |
