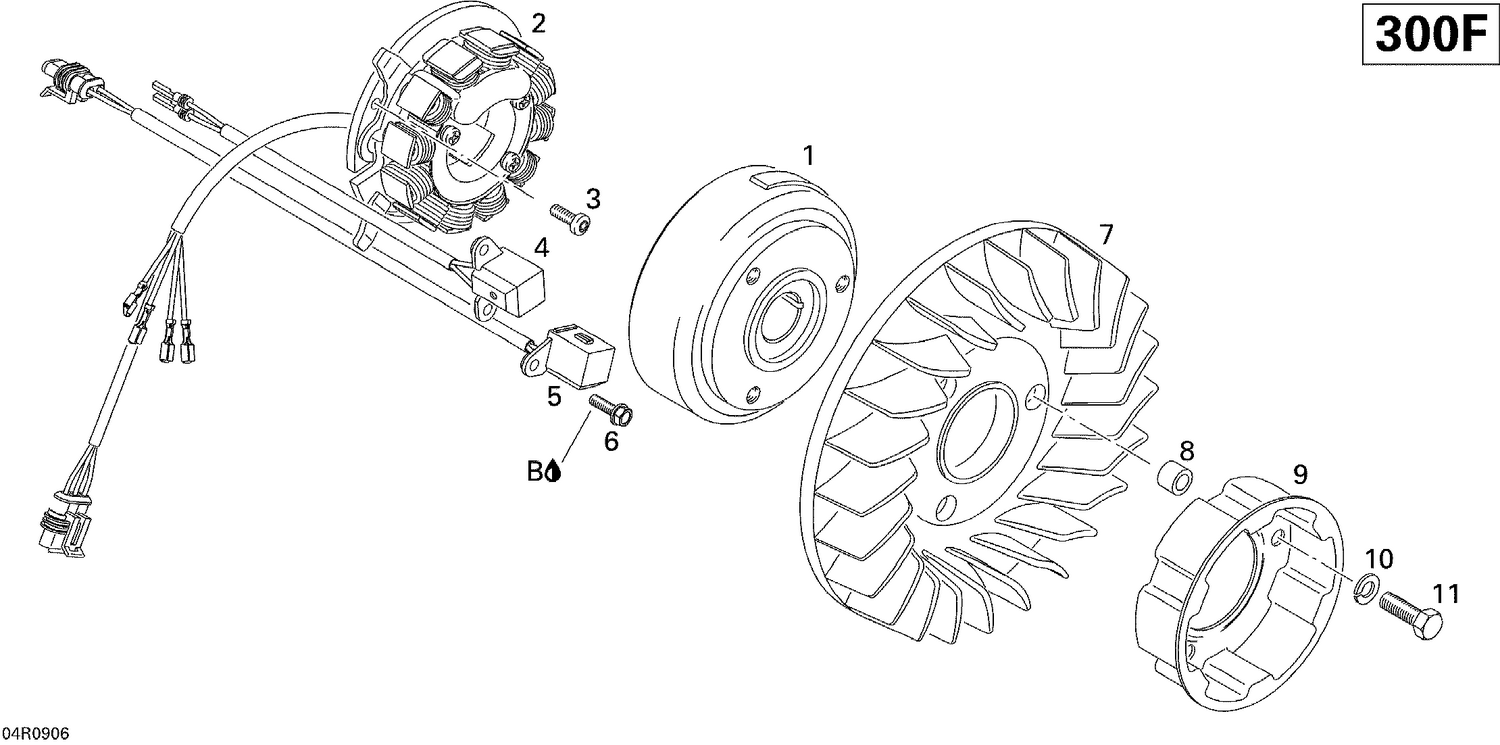

| Ref | Part Number | Description |
|---|
| 1 |
420665370 |
FLYWHEEL - Call your local BRP dealership |
| 2 |
420889369 |
Stator Plate A |
| 3 |
420641521 |
Screw |
| 4 |
420966543 |
PICK UP - Call your local BRP dealership |
| 5 |
420966541 |
PICK UP - Call your local BRP dealership |
| 6 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 7 |
420866435 |
FAN - Call your local BRP dealership |
| 8 |
420847440 |
SPACER BUSHING - Call your local BRP dealership |
| 9 |
420852590 |
Starting Pulley |
| 10 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 11 |
207182544 |
Hex. Screw M8 X 25 |
