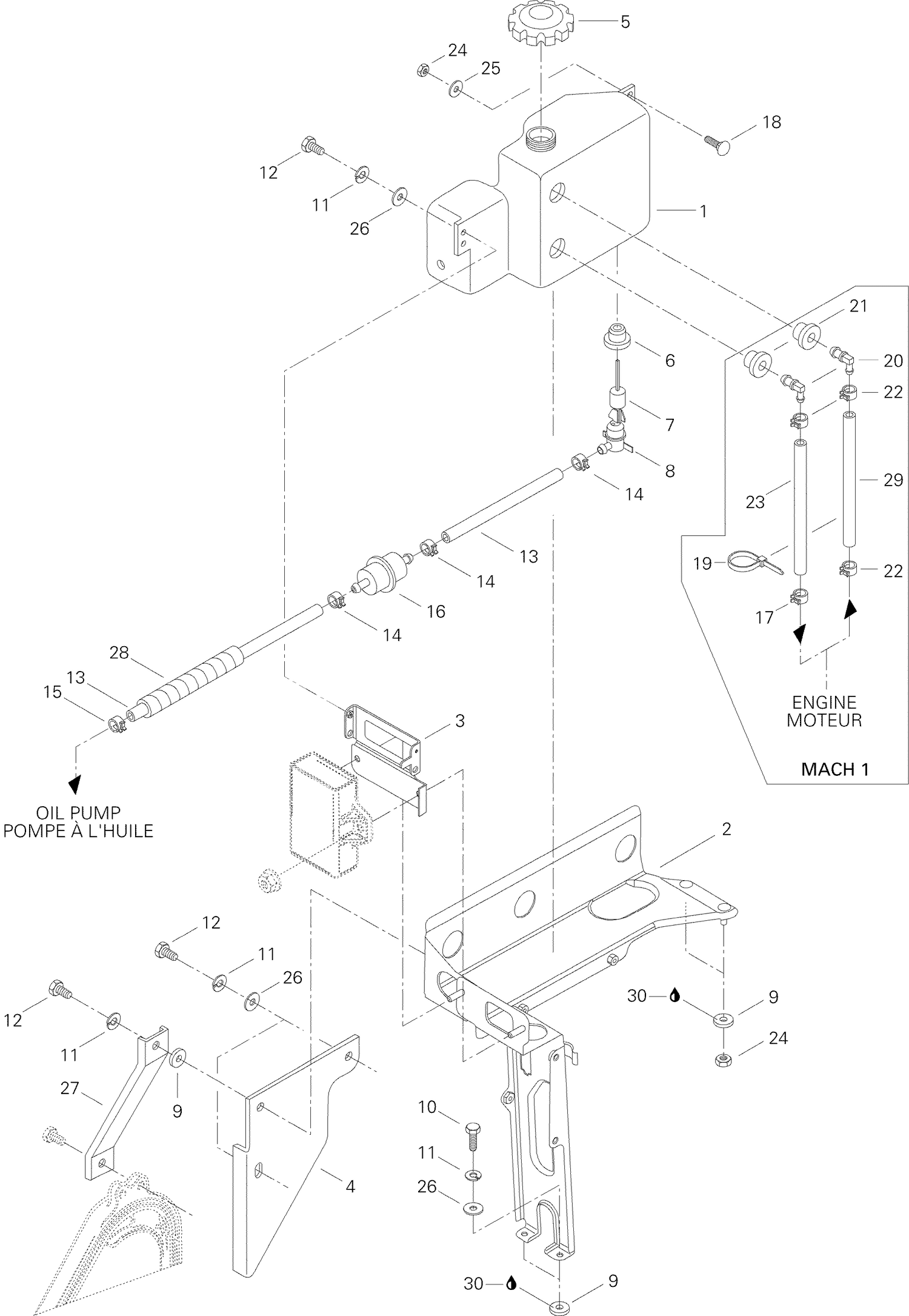

| Ref | Part Number | Description |
|---|
| 1 |
572043100 |
Injection Oil Tank |
| 2 |
517285100 |
Support |
| 3 |
517260300 |
Upper Support |
| 4 |
517275900 |
Deflector |
| 5 |
519000044 |
CAP - Call your local BRP dealership This part replaces 572071000. |
| 6 |
570023000 |
Insulating Ring |
| 7 |
414681900 |
Float |
| 8 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 9 |
414454400 |
Rubber Spacer |
| 10 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 11 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 12 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 13 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 14 |
414415200 |
Spring Clamp |
| 15 |
414420700 |
Spring Clamp |
| 16 |
414536500 |
Filter |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
207762044 |
Carriage Bolt M6 X 20 This part replaces 222262065. |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
XXX |
Not Available As Spare Parts |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 25 |
224061201 |
Flat Washer |
| 26 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 27 |
517254101 |
Welded Side Support |
| 28 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 29 |
XXX |
Not Available As Spare Parts |
