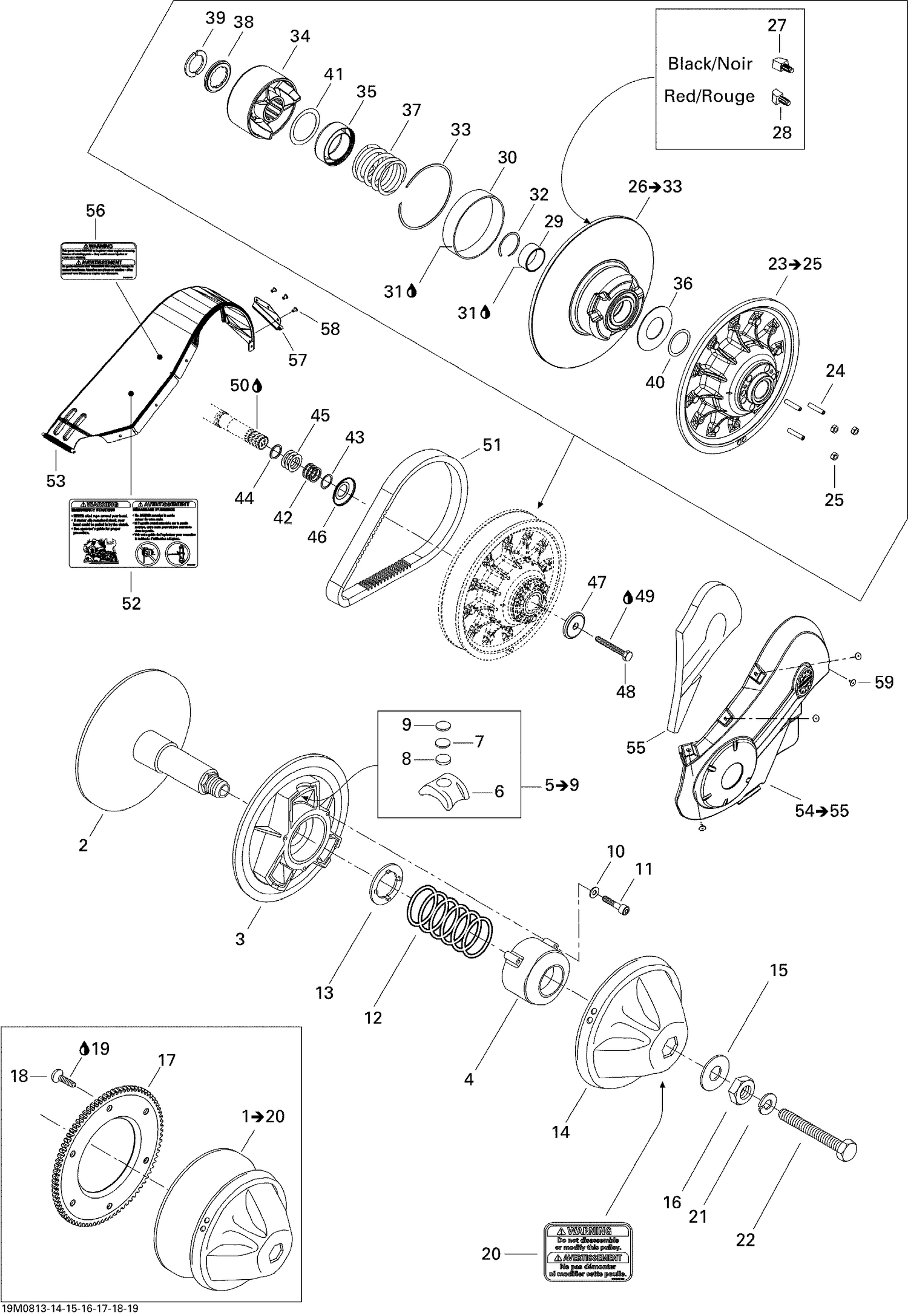

| Ref | Part Number | Description |
|---|
| 2 |
415128975 |
INNER FLANGE - Call your local BRP dealership |
| 3 |
417126692 |
SLIDING FLANGE - Call your local BRP dealership |
| 4 |
415128602 |
SPRING COVER - Call your local BRP dealership |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
XXX |
Not Available As Spare Parts |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
420245370 |
WASHER - Call your local BRP dealership |
| 11 |
415128606 |
SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership |
| 12 |
415129220 |
Spring, Violet-Yellow-Green |
| 13 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 14 |
415128609 |
Cap |
| 15 |
415128610 |
WASHER - Call your local BRP dealership |
| 16 |
417118300 |
NUT - Call your local BRP dealership |
| 17 |
417222833 |
Ring Gear |
| 18 |
236281684 |
Hex. Screw M8 X 16 |
| 19 |
293800005 |
Loctite 271, 10 ml |
| 20 |
516001726 |
Security Label |
| 21 |
392002800 |
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 22 |
417113800 |
BOLT - Call your local BRP dealership |
| 24 |
250000408 |
Screw Socket Set DIN.913 S.Grip This part replaces 206262599. |
| 25 |
233061414 |
Hex. Flange Nut M6 |
| 27 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 28 |
417126374 |
Front Cam Slider Shoe, Black |
| 29 |
417126901 |
BUSHING - Call your local BRP dealership |
| 30 |
417126902 |
BUSHING - Call your local BRP dealership |
| 31 |
413408300 |
Loctite, Black Max, 3 ml |
| 32 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 33 |
417126878 |
CIRCLIP - Call your local BRP dealership |
| 34 |
417126445 |
CAM ASS'Y - Call your local BRP dealership This part replaces 417126574. |
| 35 |
417126381 |
GUARD - Call your local BRP dealership |
| 36 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 37 |
417127061 |
Spring |
| 38 |
417126733 |
SPACER - Call your local BRP dealership |
| 39 |
417126734 |
HALF KEY - Call your local BRP dealership |
| 40 |
504112300 |
SHIM - Call your local BRP dealership |
| 41 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 42 |
417300252 |
Spacer |
| 43 |
417300265 |
Spacer |
| 44 |
417300252 |
Spacer |
| 45 |
504112000 |
Shim |
| 46 |
417300238 |
PROTECTOR - Call your local BRP dealership |
| 47 |
517302322 |
Strength Washer |
| 48 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 49 |
293800060 |
Loctite 243, 10 ml |
| 50 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 51 |
415060600 |
Drive Belt |
| 52 |
516002674 |
EMERGENCY STARTING LABEL - Call your local BRP dealership |
| 53 |
417300269 |
BELT GUARD - Call your local BRP dealership |
| 55 |
417300246 |
Foam |
| 56 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 57 |
417300216 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 58 |
390909200 |
Avex Rivet |
