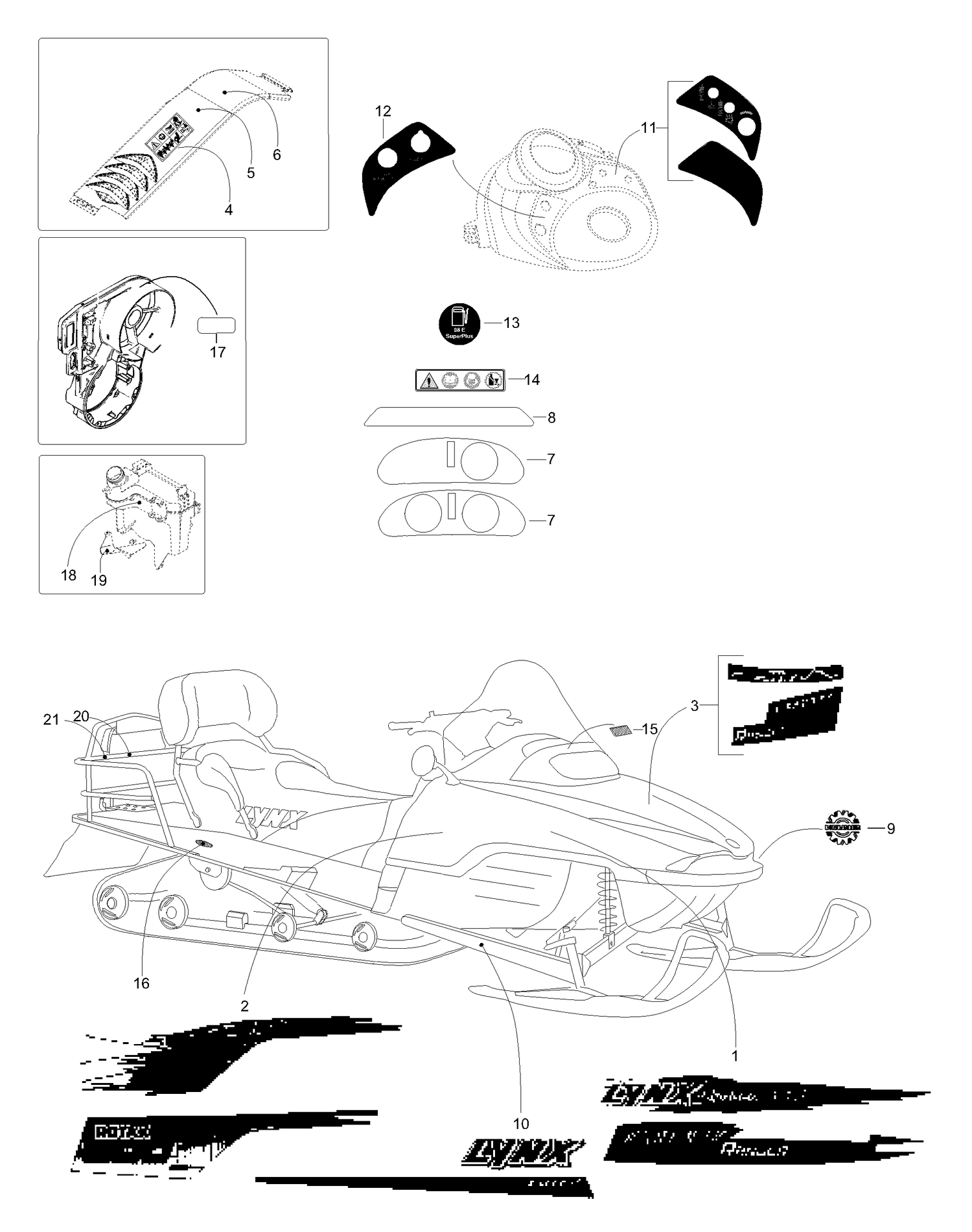

09- Decals
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605349731 | R.H. Hood decal, upper |
| 1 | 605349732 | L.H. Hood decal, upper |
| 2 | 605349733 | R.H. lower decal, hood |
| 2 | 605349734 | L.H. lower decal, hood |
| 3 | 605349737 | Hood decal, front |
| 4 | 605448801 | Instruction symbol decal |
| 5 | 5447014 | Pulley decal |
| 6 | 5447012 | Oil check decal |
| 7 | 5347662 | Control panel decal |
| 8 | 5346800 | Instruction decal |
| 9 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 10 | 605349735 | Decal, swing arm |
| 11 | 5447918 | Grip heater decal/RER |
| 12 | 5448062 | Decal |
| 13 | 5447020 | Fuel label |
| 14 | 5447124 | Instruction symbol decal |
| 15 | 21060 | Reflector, bright |
| 16 | 21135 | Reflector, yellow |
| 17 | 5447016 | Instruction label |
| 18 | 605449628 | Label, oil level |
| 19 | 605449565 | Instruction label |
| 20 | 5447930 | Instruction symbol decal |
