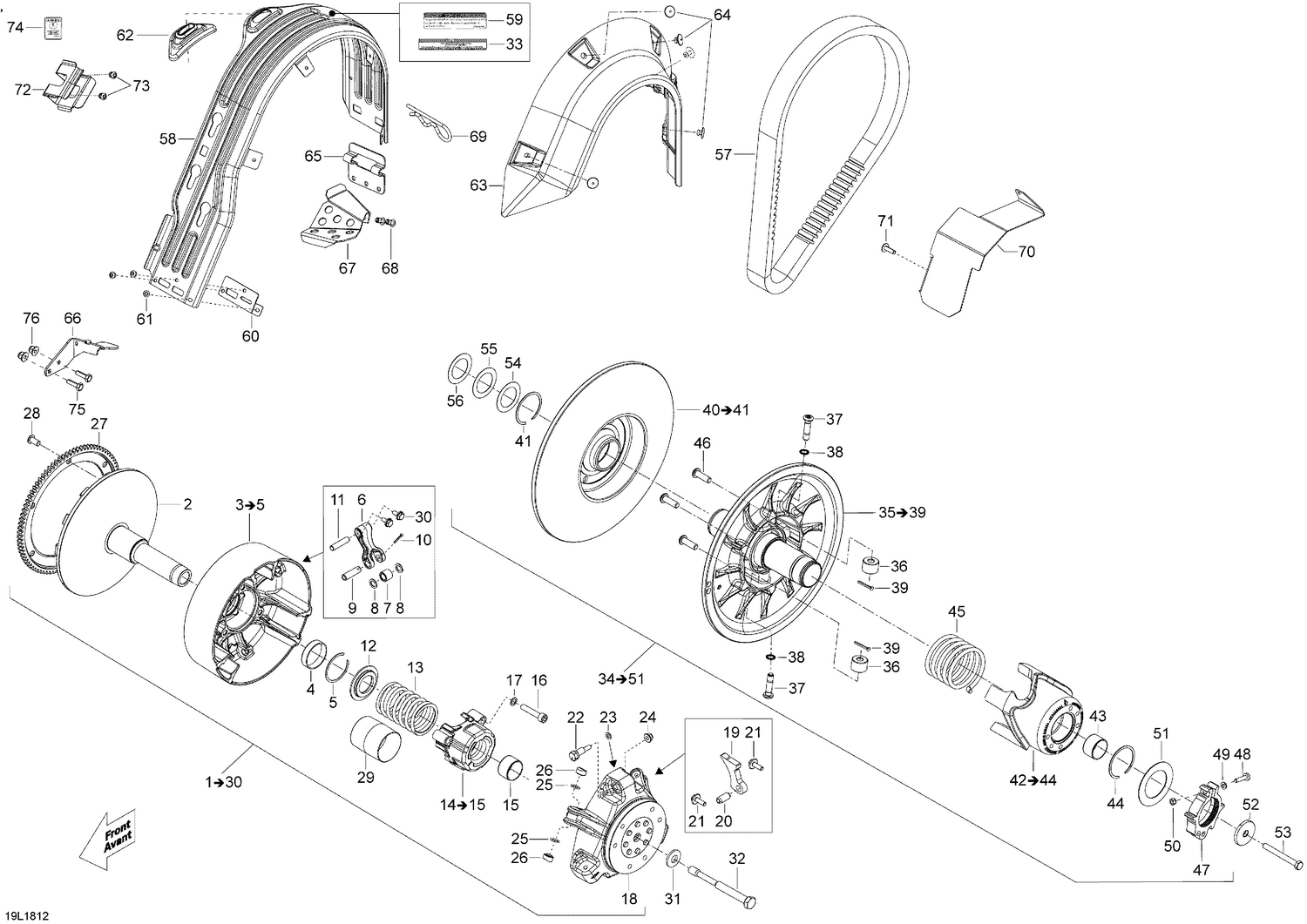

05- Pulley Skandic - 600HO E-TEC
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222937 | Fixed Flange Ass'y |
| 4 | 417222758 | Bushing |
| 5 | 293370037 | Circlip |
| 6 | 417222671 | Lever |
| 7 | 417222947 | Roller |
| 8 | 417004302 | Stopper Washer |
| 9 | 417222594 | Pin |
| 10 | 250400060 | Cotter Pin |
| 11 | 417223164 | Lever Axle |
| 12 | 417222312 | Spring Seat |
| 13 | 414993000 | Tra Spring |
| 15 | 417009204 | Bushing |
| 16 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 17 | 250200009 | Lock Washer 8 mm |
| 18 | 417223669 | Governor Cup Ass'y |
| 19 | 417222444 | Ramp 600 |
| 20 | 250400050 | Spring Pin M10 X 22 |
| 21 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 22 | 417223501 | Calibration Screw |
| 23 | 417005600 | Washer |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 732401030 | O-Ring |
| 26 | 417223271 | Slider Shoe |
| 27 | 417225070 | Ring Gear_Starter This part replaces 417223738. |
| 28 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 29 | 417009205 | Guard |
| 30 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 31 | 250200144 | Conical Spring Washer M14 |
| 32 | 417120000 | Drive Pulley Bolt |
| 33 | 516005503 | Decal English |
| 35 | 417127466 | Fixed Flange Ass'y |
| 40 | 417127366 | Slider Flange Ass'y |
| 42 | 417127459 | Cam Ass'y |
| 45 | 417127243 | Spring, White |
| 47 | 415129604 | Calibration Ass'y |
| 48 | 205052544 | Socket Screw M5 X 25 |
| 49 | 234051410 | Flat Washer M5 |
| 50 | 232551414 | Elastic Stop Nut M5 |
| 51 | 417127155 | Washer |
| 52 | 517302322 | Strength Washer |
| 53 | 207287544 | Hex. Cap Screw M8 X 75 |
| 54 | 417300252 | Spacer |
| 55 | 417300265 | Spacer |
| 56 | 504112000 | Shim |
| 57 | 417300551 | Drive Belt This part replaces 417300383. |
| 58 | 417300357 | Belt Guard |
| 59 | 516006900 | Security Label, Belt Guard |
| 60 | 417300380 | Reinforcement |
| 61 | 390909200 | Avex Rivet |
| 62 | 417300381 | Guide |
| 63 | 417300356 | Side Protector |
| 64 | 293150103 | Pop Rivet 3/16" |
| 66 | 417300451 | BELT GUARD BRACKET - Call your local BRP dealership |
| 68 | 293150163 | Rivet Hucklok |
| 69 | 114045200 | Hair Pin |
| 71 | 250000722 | Torx Screw M6 X 20 |
| 72 | 517281905 | Bracket |
| 73 | 390909100 | Avex Rivet |
