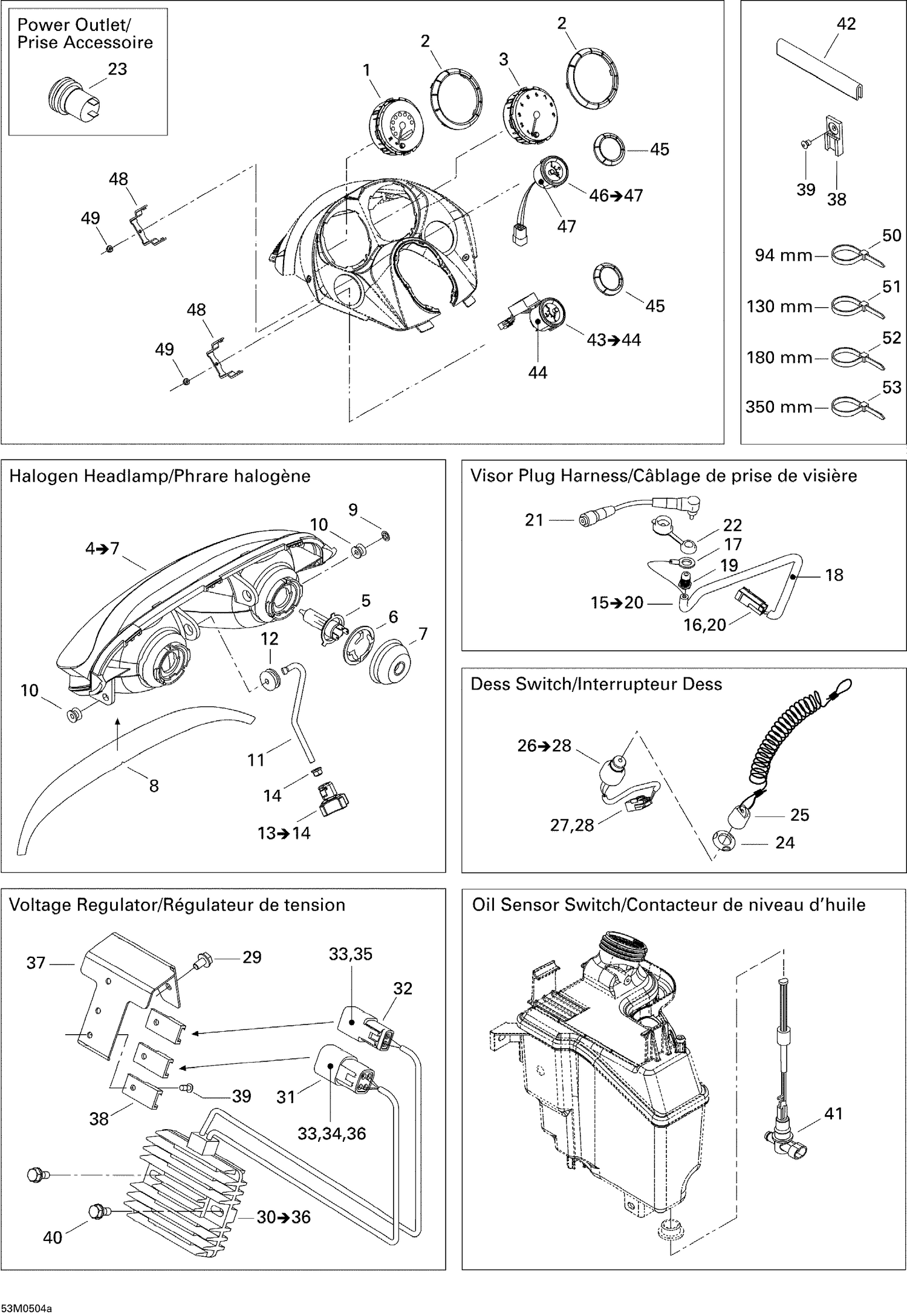

10- Electrical Accessories 1 (800HO)

10- Electrical Accessories 1 (800HO)

Parts (37)

RefPart NumberDescription
3 515176275 Tachometer
5 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
6 515176385 BULB HOLDER - Call your local BRP dealership This part replaces 515175910.
7 515175911 COVER - Call your local BRP dealership
8 516001328 HEADLAMP DECAL - Call your local BRP dealership
9 732610072 Push Nut
10 515175760 HEADLAMP BUSHING - Call your local BRP dealership
11 515175521 ADJUSTER ROD - Call your local BRP dealership
12 415100800 Grommet - Call your local BRP dealership
14 233261414 Hex. Flange Elastic Nut M6 x 1.0
16 515175232 Male Terminal
17 515175172 OPEN BARREL - Call your local BRP dealership
18 219704424 Vinyl Tubing, Low Temp 3000Mm Long
19 415096100 Visor Plug
20 515175654 Male Terminal Housing, 2 Circuits
21 515175851 Extension
22 572103300 Cap
24 278002963 Safety Nut (DESS Switch) This part replaces 278000508.
25 515178284 DESS This part replaces 515166900.
27 515175232 Male Terminal
28 515175494 Male Housing, 3 Circuits
29 210261050 Hex. Forming Screw M6 X 10 This part replaces 210261080.
31 278001477 FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
32 278001674 Mâle Terminal Housing, 2 Circuits
33 515175568 Male Terminal
34 278001478 MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
35 278001672 Male Lock, 2 Circuits
36 293000052 Sealing Cap
37 515176191 HOUSING SUPPORT - Call your local BRP dealership
38 270000141 Clip This part replaces 515175917.
39 293150037 Avdel Rivet 3/16"
40 210262050 Hexagonal Head Screw This part replaces 210262080.
41 515176327 OIL LEVEL SENSOR - Call your local BRP dealership This part replaces 515176016.
42 509000263 TRIM - Call your local BRP dealership
50 293750001 Tie Wrap 94 mm
51 293750002 Tie Wrap 142 mm
52 414115200 Tie-Rap 180 mm
