Home / BRP / 2016 / Xtrim / Xtrim RE (2-Stroke), 2016 000LEGA00 000LEGB00 000LEGC00 000LEGD00 / 07- Front Suspension And Ski

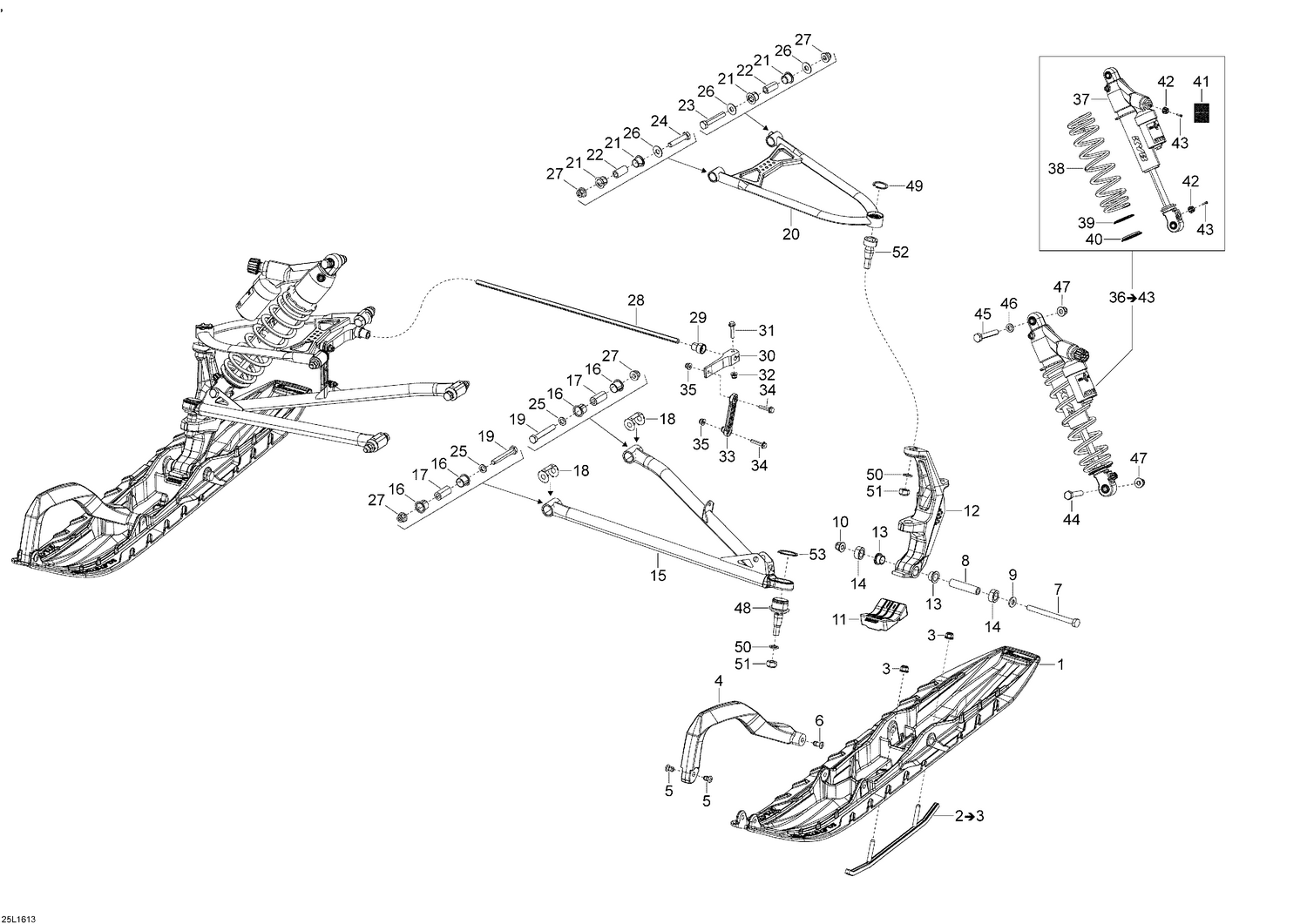

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (54)

RefPart NumberDescription
1 505073834 Black DS Blade Ski
3 233281414 Hex. Flange Elastic Nut M8
4 505073109 Handle
5 505071812 Retainer 17mm long
6 505072133 Retainer 23mm Long
7 250000703 Hex. Screw M10 X 130 This part replaces 230003044.
8 506133300 Ski Axle
9 732900049 Washer
10 233201414 Hex. Flanged Elastic Nut M10
11 505072594 Ski Stopper
12 505073630 Black LH Ski Leg (6L)
12 505073631 Black RH Ski Leg (6R)
13 505072690 Leg Bushing
14 505072807 Spacer
15 505073583 Black LH Lower Arm
15 505073584 Black RH Lower Arm
16 505073330 Bushing
17 505072209 Bushing
18 505072634 Wear Plate
19 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
20 505073588 Black LH Upper Arm
20 505073589 Black RH Upper Arm
21 505073329 Bushing
22 505072143 Bushing
23 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
24 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
25 503189564 Washer
26 505072392 Washer
27 250100165 Hex. Flanged Elastic Nut M10
28 505072602 Stabilisator
29 505072064 Bushing
30 505072394 Stabilisator Lever
31 207663046 Hex. Flange Screw M6 X 30
32 233261416 Elastic Flanged Nut M6 X 1.0
33 505072204 Sway Bar Double Joint Link
34 207663046 Hex. Flange Screw M6 X 30
35 233261416 Elastic Flanged Nut M6 X 1.0
37 505073157 LH Shock
37 505073158 RH Shock
38 505073228 Spring (280mm - 20N/mm)
39 505073150 Washer
40 503194270 Spring Stopper
41 516005534 Shock Adjustment Decal
42 505072753 Adjustment Knob
43 250000644 Allen Screw M3 X 0.5 X 10
44 207005544 Hex. Cap Screw M10 x 55
45 207006544 Hex. Cap Screw M10 x 65
46 503189564 Washer
47 233201414 Hex. Flanged Elastic Nut M10
48 505073636 Ball Joint
49 293370070 Circlip
50 234021410 Flat Washer
51 250100089 Nut M12
52 505072913 Upper Ball Joint
