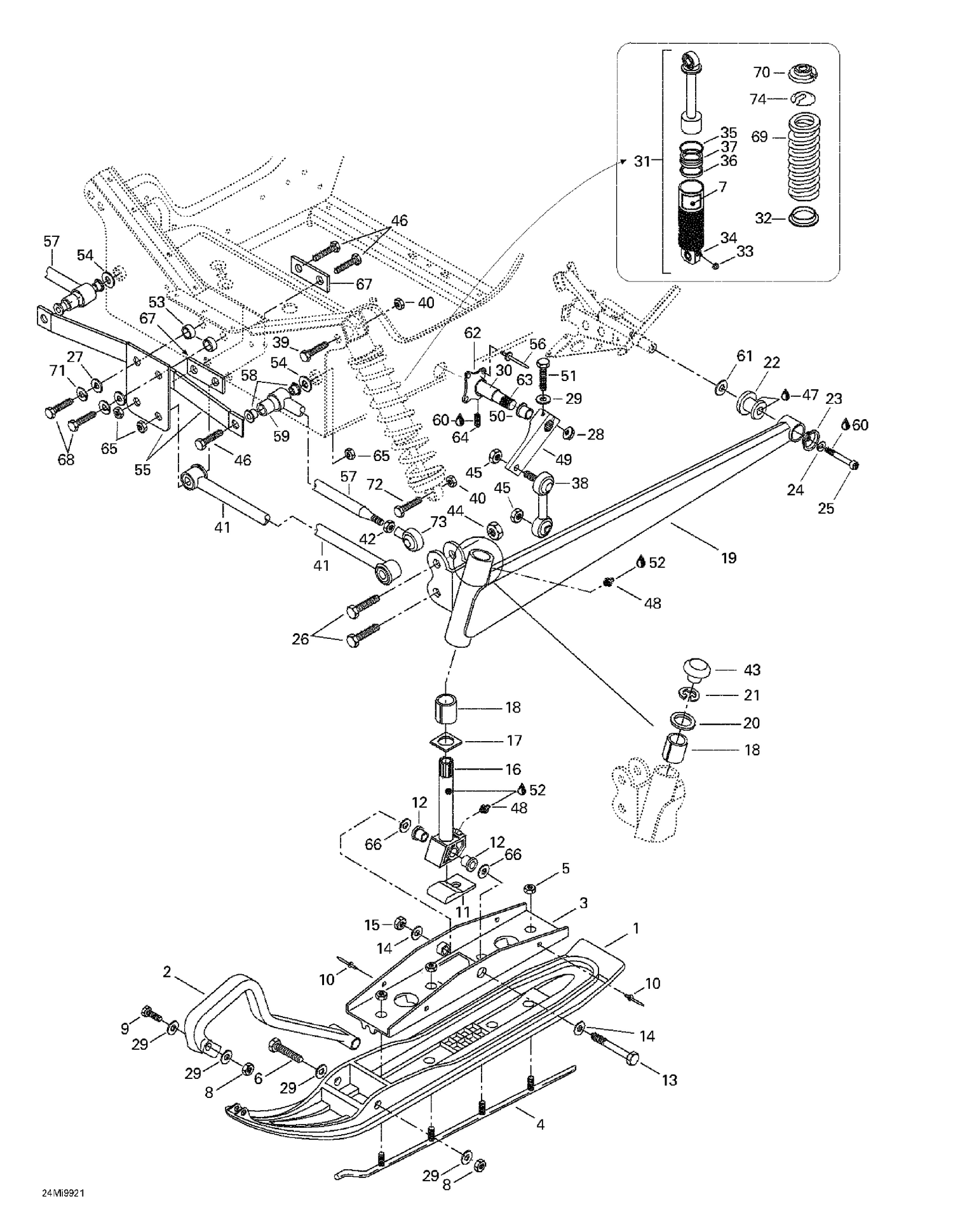

| Ref | Part Number | Description |
|---|
| 1 |
505070189 |
Ski-Liner Flex |
| 2 |
505070963 |
Black, Handle This part replaces 572101000. |
| 3 |
505070251 |
Bridge Ass'y |
| 5 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 6 |
230080044 |
SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 7 |
516000183 |
Shock Decal |
| 8 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 9 |
207085044 |
Hex. Screw M8 X 50 |
| 10 |
390911100 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 11 |
570053300 |
Ski Stopper |
| 12 |
414530600 |
CUSHION - Call your local BRP dealership |
| 13 |
230022044 |
HEX. SCREW M12 X 120 - Call your local BRP dealership |
| 14 |
506136400 |
FLAT WASHER - Call your local BRP dealership |
| 15 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 16 |
506144500 |
Ski Leg |
| 17 |
506081200 |
Wear Plate |
| 18 |
572069900 |
Cushion |
| 19 |
505070195 |
LH Swing Arm (Yellow) |
| 20 |
506080900 |
Thrust Washer |
| 21 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 22 |
570062200 |
DAMPER - Call your local BRP dealership |
| 23 |
506079600 |
CUP - Call your local BRP dealership |
| 24 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 25 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 |
222025565 |
Hex. Screw M12 x 55 |
| 27 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 29 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 30 |
506136200 |
Main Tube |
| 32 |
505070306 |
Spring Seat |
| 33 |
415127405 |
Air Valve Cap |
| 34 |
414888314 |
AIR VALVE - Call your local BRP dealership |
| 35 |
414888312 |
O-Ring |
| 36 |
503189308 |
Piston Ring |
| 37 |
503189309 |
FREE PISTON - Call your local BRP dealership |
| 38 |
415042300 |
Double Ball Joint |
| 39 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 40 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 41 |
580650800 |
Arm Ass'y |
| 42 |
232170411 |
Hex. Jam Nut M14 This part replaces 228371042. |
| 43 |
572091300 |
Cap |
| 44 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 45 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 46 |
230020044 |
Hex. Screw M12 x 100 |
| 47 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 48 |
408200700 |
Grease Fitting |
| 49 |
506145600 |
Lever-Stabilizer |
| 50 |
415039500 |
CUSHION - Call your local BRP dealership |
| 51 |
207084544 |
Hex. Screw M8 X 45 |
| 52 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 53 |
506146300 |
Spacer |
| 54 |
732900050 |
WASHER - Call your local BRP dealership |
| 55 |
415065300 |
Plate Link |
| 56 |
390404900 |
Rivet pop 1/4" |
| 58 |
506149100 |
CUSHION - Call your local BRP dealership |
| 59 |
506149200 |
Bushing |
| 60 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 61 |
503146700 |
WASHER - Call your local BRP dealership |
| 62 |
506139000 |
Housing |
| 63 |
506134300 |
Stabilizator |
| 64 |
414440800 |
Socket Set Screw M8 X 10 |
| 65 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 66 |
732900048 |
Washer |
| 67 |
415061100 |
Link Low Plate |
| 68 |
207086044 |
HEX. SCREW M8 X 60 - Call your local BRP dealership This part replaces 222086065. |
| 69 |
505070233 |
Shock Spring (Yellow) |
| 70 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 71 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 72 |
207005544 |
Hex. Screw M10 X 55 This part replaces 222005565. |
| 73 |
415042500 |
RH Ball Joint |
| 505070193 |
RH |
Swing Arm (Yellow) 505070193 |
