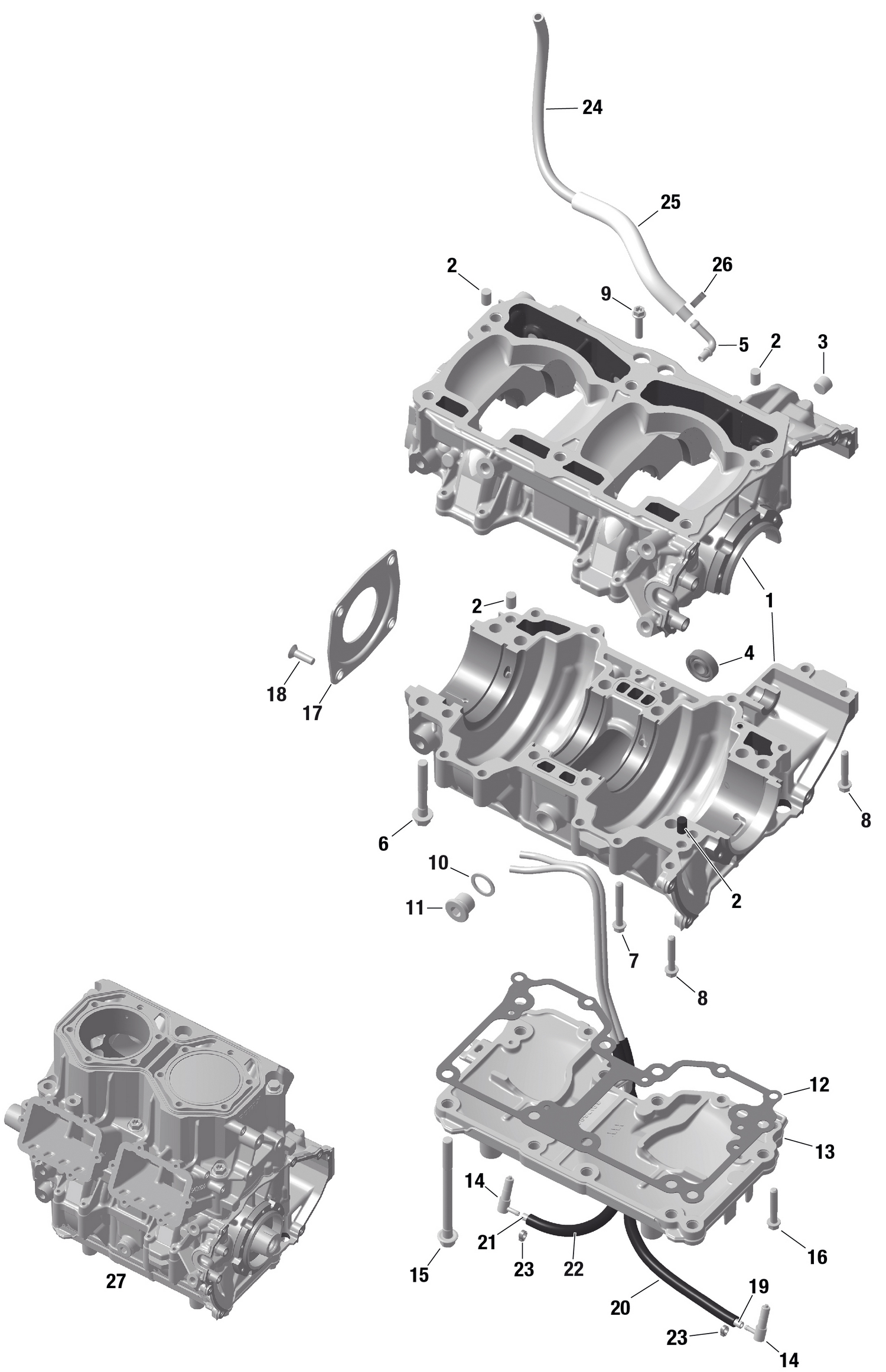

01- ROTAX - Crankcase
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420840658 | Plug Screw M12x1,5 |
| 4 | 420232100 | Ball Bearing |
| 5 | 420924802 | Fittin 90D |
| 6 | 420941627 | Hex. Screw M8 X 56.5 |
| 7 | 420440324 | Torx Flange Screw M6 X 45 |
| 8 | 420440274 | Torx Flange Screw M6 X 35 |
| 9 | 420440234 | Torx Flange Screw M6 X 25 |
| 11 | 420640457 | Plug Screw |
| 13 | 420812688 | Engine Support |
| 14 | 420956511 | Check Valve |
| 15 | 420941518 | Screw M8x105 |
| 16 | 420440274 | Torx Flange Screw M6 X 35 |
| 17 | 420812422 | Oil Seal Cover |
| 18 | 420941436 | Screw M6 X 20 |
| 19 | 420201569 | Oil Line 520MM |
| 20 | 420460015 | Corrugated Tube 305MM |
| 21 | 420201569 | Oil Line 520MM |
| 22 | 420460016 | Corrugated Tube 225MM |
| 23 | 420851508 | Clamp |
| 24 | 420201960 | Oil Line 405MM This part replaces 420201578. |
| 25 | 420660702 | Protection Tube 150MM |
| 26 | 420853653 | Clamp |
