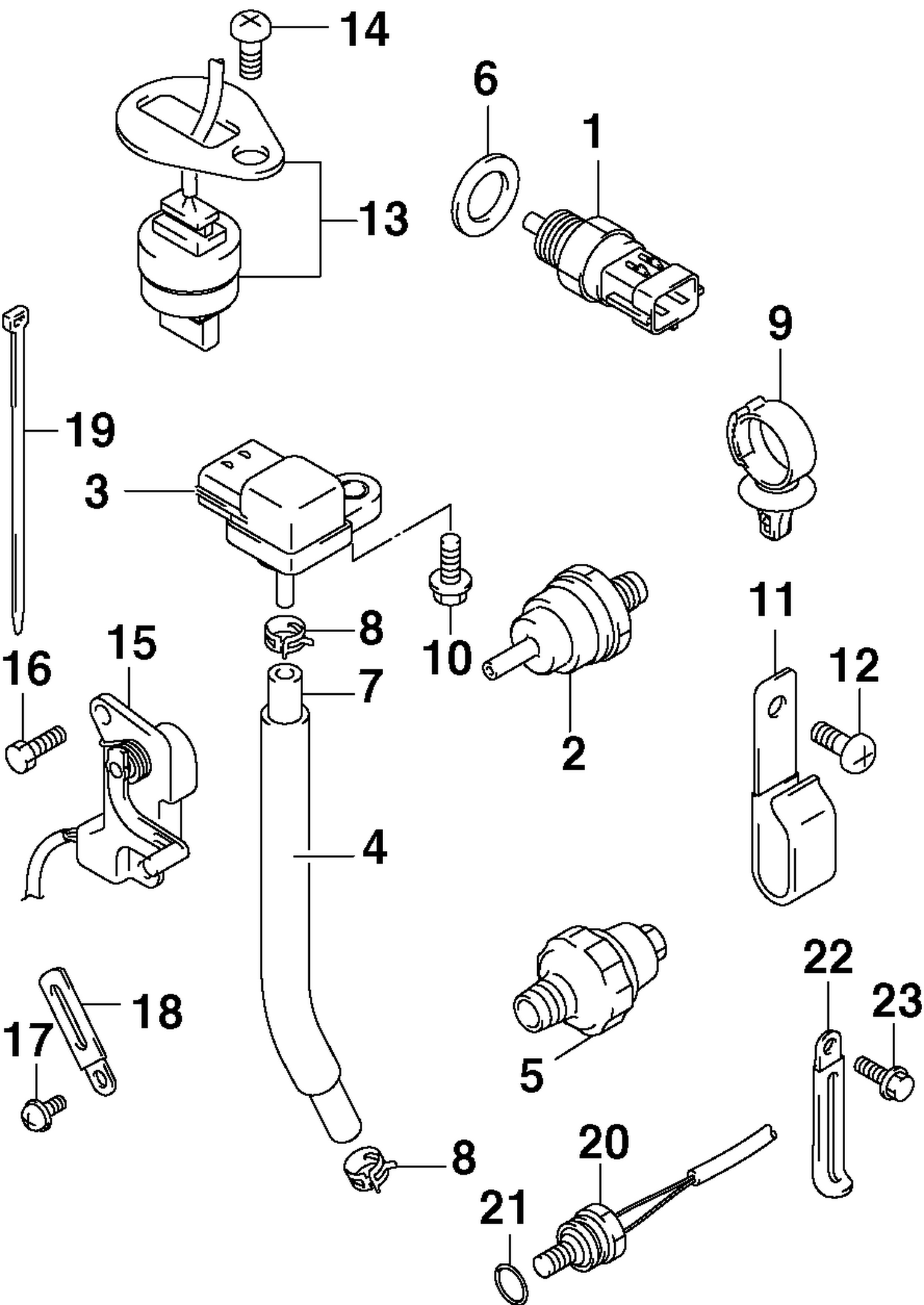

SENSOR GROUP
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030687 | SENSOR, Air inlet temperature |
| 2 | 5030749 | FILTER, Fuel |
| 3 | 5030757 | SENSOR, MAP |
| 4 | 5030810 | PROTECTOR, HOSE |
| 5 | 5030826 | SWITCH ASSY, OIL PRESSURE |
| 6 | 5030467 | GASKET |
| 8 | 5030576 | CLAMP |
| 9 | 5031279 | CLAMP, HARNESS |
| 11 | 5030585 | CLAMP |
| 13 | 5030813 | SENSOR, Cylinder temp |
| 14 | 5031009 | BOLT, Breather plate |
| 15 | 5036054 | SENDER ASSY, TRIM This part replaces 5031474. |
| 16 | 5031117 | BOLT |
| 17 | 5030409 | SCREW |
| 18 | 5030135 | BRIDE |
| 20 | 5032669 | SENSOR Assy, TEMP |
| 22 | 5030135 | BRIDE |
