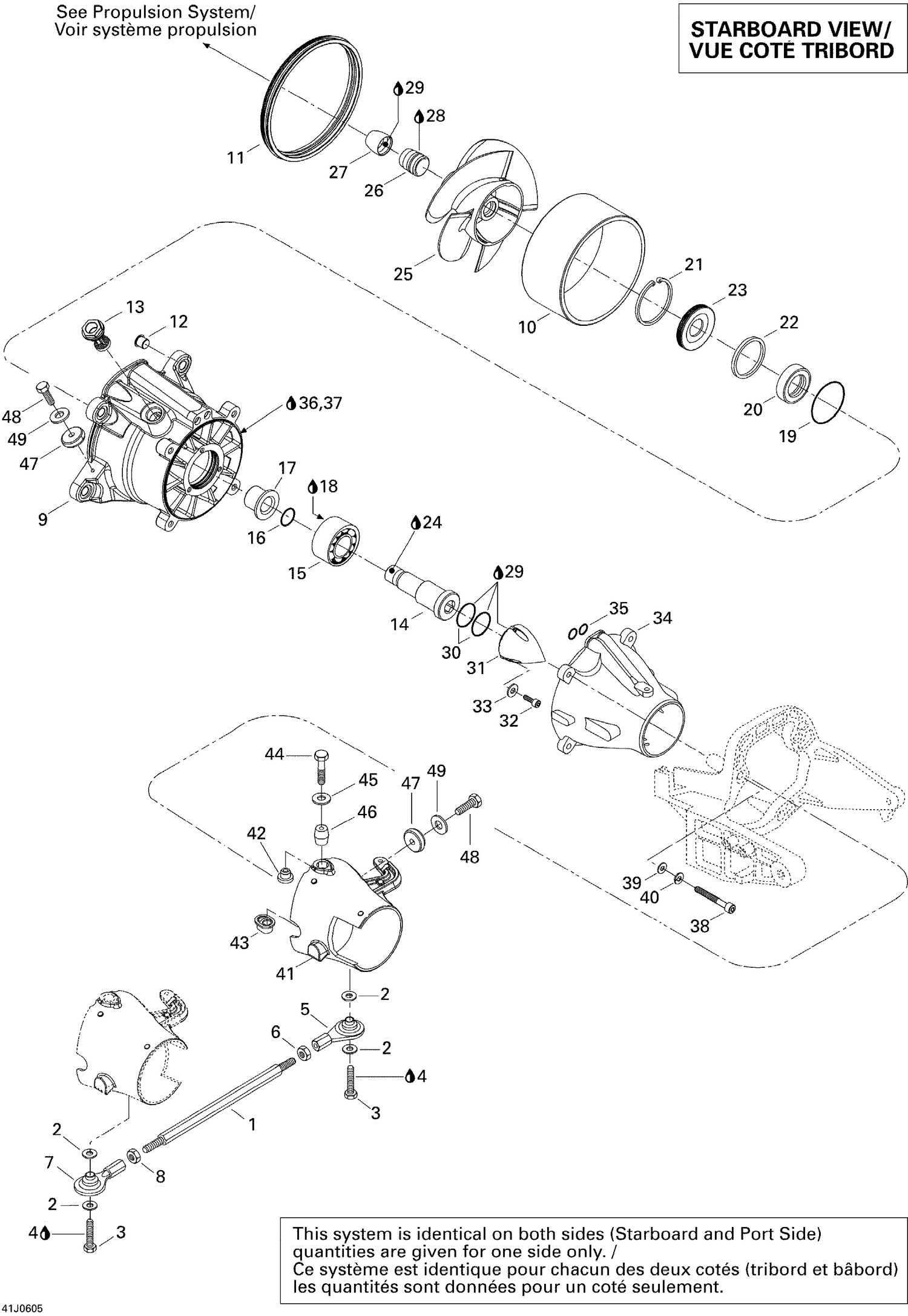

05- Pump
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204120255 | LINK ROD - Call your local BRP dealership |
| 2 | 234061600 | Stainless Flat Washer M6 |
| 3 | 207162560 | Hex. Screw M6 X 25 |
| 4 | 293800060 | Loctite 243, 10 ml |
| 5 | 204120074 | BALL JOINT - Call your local BRP dealership |
| 6 | 277000439 | HEX. NUT 5/16-24 - Call your local BRP dealership |
| 7 | 204120075 | BALL JOINT - Call your local BRP dealership |
| 8 | 211100034 | HEX. NUT 5/16-24 - Call your local BRP dealership |
| 9 | 267000084 | Impeller Housing |
| 10 | 267000419 | Wear Ring This part replaces 267000104. |
| 11 | 293200087 | Neoprene Seal |
| 12 | 267000093 | Bushing |
| 13 | 267000282 | Plug This part replaces 271001235. |
| 14 | 267000054 | Impeller Shaft |
| 15 | 267000900 | Angled Bearing This part replaces 267000030. |
| 16 | 505070315 | O-Ring |
| 17 | 267000318 | Shaft Sleeve |
| 18 | 293550032 | Jet Pump Bearing Grease, 110 G |
| 19 | 293300090 | O-Ring |
| 20 | 271002071 | Seal This part replaces 293200086. |
| 21 | 293370038 | Circlip |
| 22 | 271001393 | Spacer |
| 23 | 293200089 | Oil Seal |
| 24 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 25 | 267000673 | Impeller Assy This part replaces 267000115. |
| 26 | 271001152 | IMPELLER BOOT - Call your local BRP dealership |
| 27 | 271001153 | IMPELLER RING - Call your local BRP dealership |
| 28 | 293550010 | Synthetic Grease, 400 G |
| 29 | 293550032 | Jet Pump Bearing Grease, 110 G |
| 30 | 293300086 | O-Ring |
| 31 | 267000262 | Impeller Cover This part replaces 267000055. |
| 32 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 33 | 234061600 | Stainless Flat Washer M6 |
| 34 | 204160302 | Black, Venturi - Call your local BRP dealership This part replaces 271001485. |
| 35 | 293300013 | O-Ring |
| 36 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 38 | 231181060 | Socket Screw M8 X 110, Scotch Grip |
| 39 | 293050001 | Flat Washer M8.5 x 18 |
| 40 | 234181601 | Lock Washer 8 mm, Stainless |
| 41 | 204160293 | STEERING NOZZLE - Call your local BRP dealership |
| 41 | 204160296 | STEERING NOZZLE - Call your local BRP dealership |
| 42 | 293900001 | Venturi Bushing |
| 43 | 293900010 | Plastic Bushing |
| 44 | 211000047 | SCREW-SPECIAL M8 - Call your local BRP dealership |
| 45 | 293050001 | Flat Washer M8.5 x 18 |
| 46 | 271001816 | Sleeve This part replaces 271000122. |
| 47 | 271001813 | Anode Zinc This part replaces 271001487. |
| 48 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
