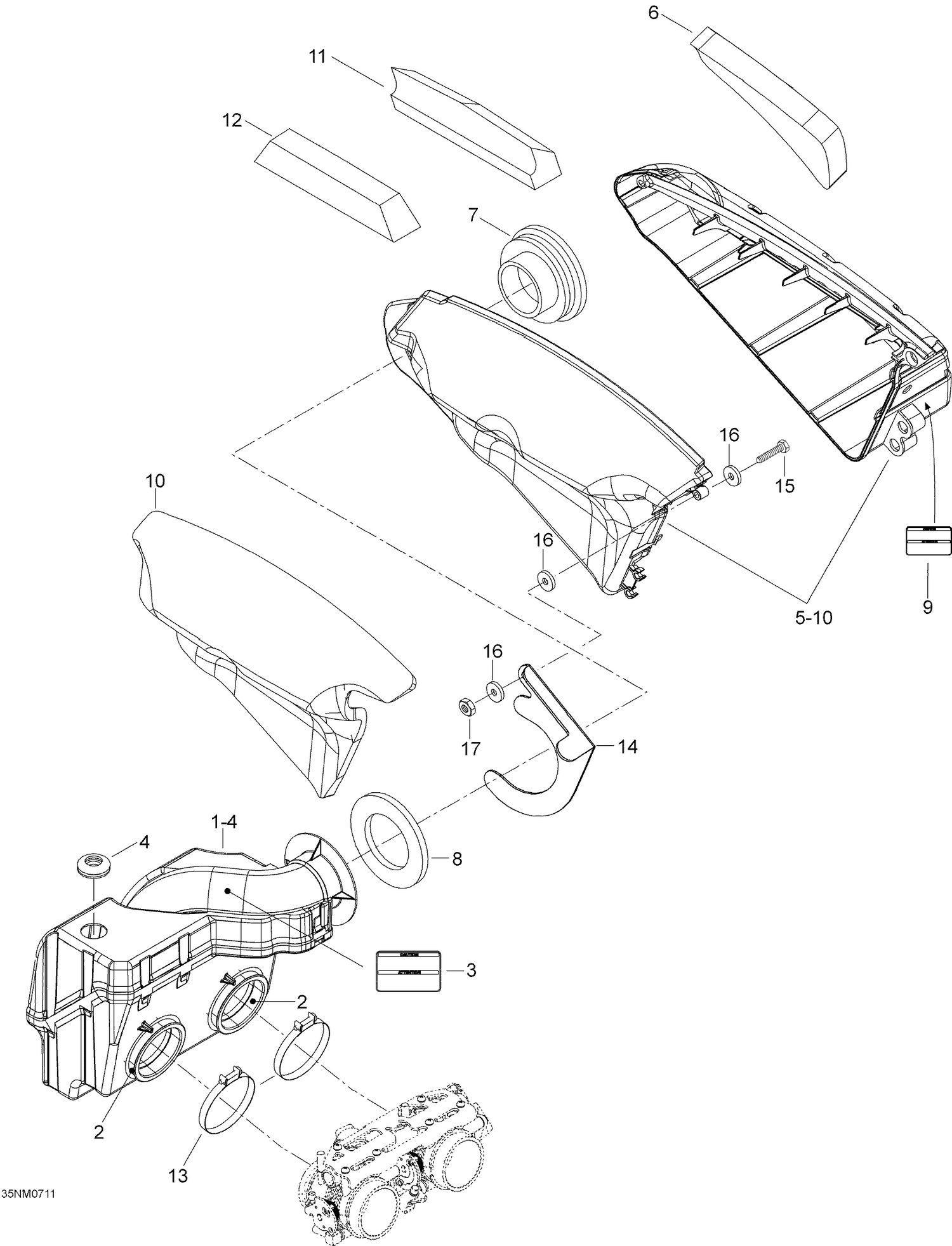

02- Air Silencer
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000374 | Air intake adaptor |
| 3 | 516001191 | Caution Label, Air Intake |
| 4 | 570065500 | GROMMET - Call your local BRP dealership |
| 6 | 508000145 | Inner foam |
| 7 | 508000240 | GUIDE - Call your local BRP dealership |
| 8 | 508000199 | OUTER FOAM - Call your local BRP dealership |
| 9 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 10 | 508000310 | OUTER FOAM - Call your local BRP dealership |
| 11 | 508000394 | Air filter |
| 12 | 605354029 | Air filter |
| 13 | 508000346 | Clamp |
| 14 | 605351817 | Bracket |
| 15 | 40083 | Hex. screw M6 x 30 |
| 16 | 20003 | Washer A6,4 |
