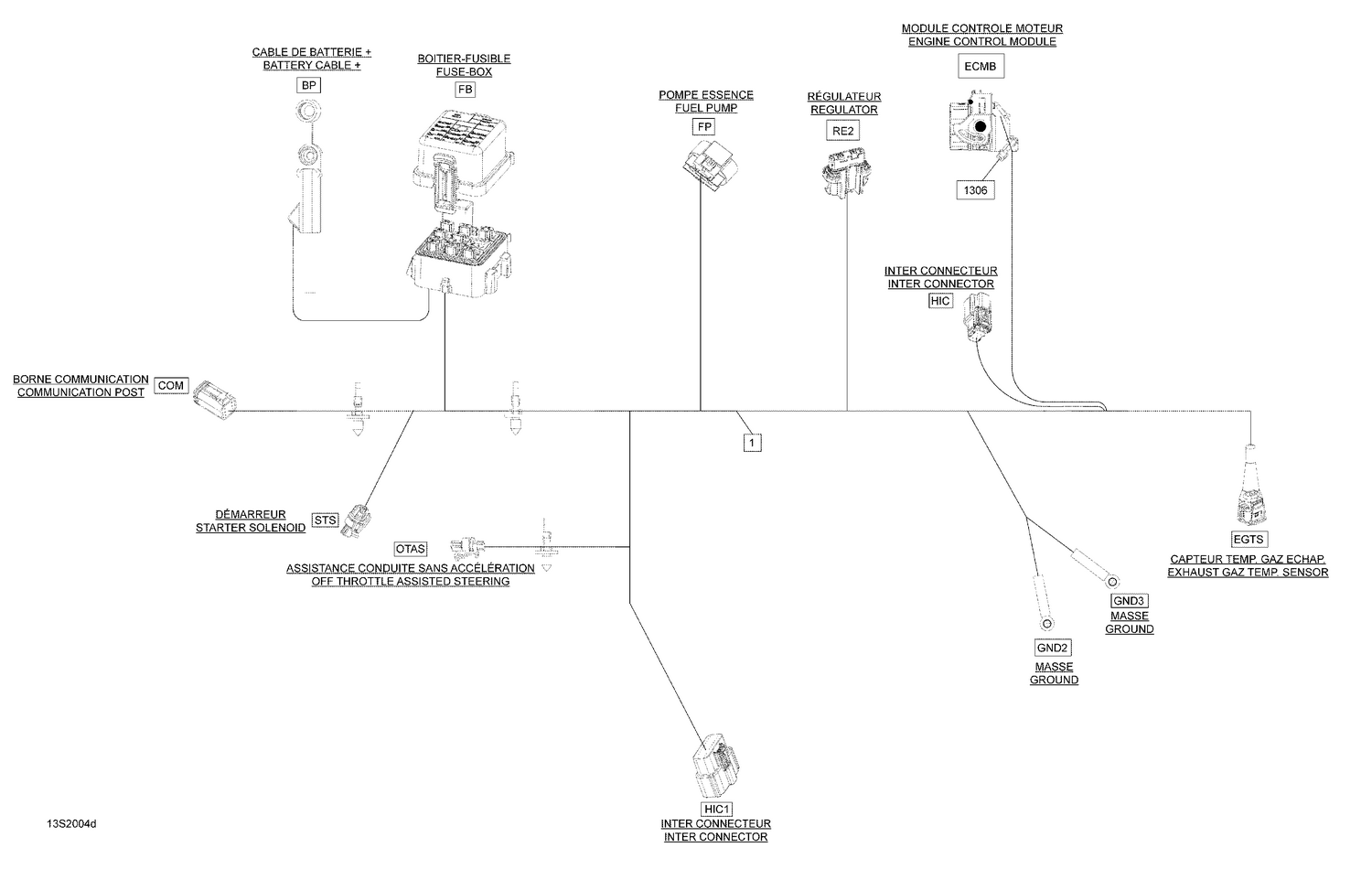

10- Electrical Harness Main 278003803
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| BP | 415128501 | Seal |
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| ECMB | 710001588 | Female Terminal Housing, 48 Circuits |
| ECMB | 710001589 | Female Terminal |
| ECMB | 710001590 | Female Terminal |
| ECMB | 710001591 | Cover, 48 positions |
| ECMB | 710001592 | Plug |
| ECMB | 710001593 | Plug |
| ECMB | 710001727 | Female Terminal |
| EGTS | 278001484 | RUBBER CAP - Call your local BRP dealership |
| EGTS | 515177177 | Female Terminal |
| EGTS | 710001136 | Housing |
| EGTS | 710001137 | Female Terminal |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 278002880 | Seal Plug |
| FB | 278003448 | Fuse Base Ass'y |
| FB | 278003828 | Relay 30 Amp This part replaces 278002822. |
| FB | 278003879 | Fuse Cover This part replaces 278003469. |
| FB | 515177192 | Female Housing, 2 Circuits |
| FB | 710000742 | Little Fuse, 5 Amperes |
| FB | 710000745 | Little Fuse, 15 Ampere |
| FB | 710000747 | Little Fuse, 30 Amperes |
| FB | 710000877 | Female Terminal |
| FB | 710000890 | Female Terminal |
| FB | 710000918 | Female Terminal |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 278002186 | Wire Seal |
| FP | 278002187 | Female Terminal |
| FP | 710001222 | Lock |
| GND2 | 278001392 | Open Barrel Terminal |
| GND3 | 278001392 | Open Barrel Terminal |
| HIC | 278002642 | Female Terminal |
| HIC | 278003715 | Battery Cable |
| HIC1 | 278002453 | Female Terminal |
| HIC1 | 278002642 | Female Terminal |
| HIC1 | 278002858 | Female Housing 20 Circuits |
| HIC1 | 278002860 | Sealing Cap |
| OTAS | 278002387 | Female Terminal Housing 3 Circuits |
| OTAS | 710000925 | Terminal |
| OTAS | 710001153 | Seal Wire |
| RE2 | 278003535 | Female Housing, 4 circuits |
| RE2 | 710000879 | Female Housing, 3 Circuits |
| RE2 | 710000881 | Seal |
| STS | 710000048 | Wire Seal |
| STS | 710000925 | Terminal |
| STS | 710001152 | Lock |
| 1 | 278003803 | Main Wiring Harness |
