08- Rear Suspension

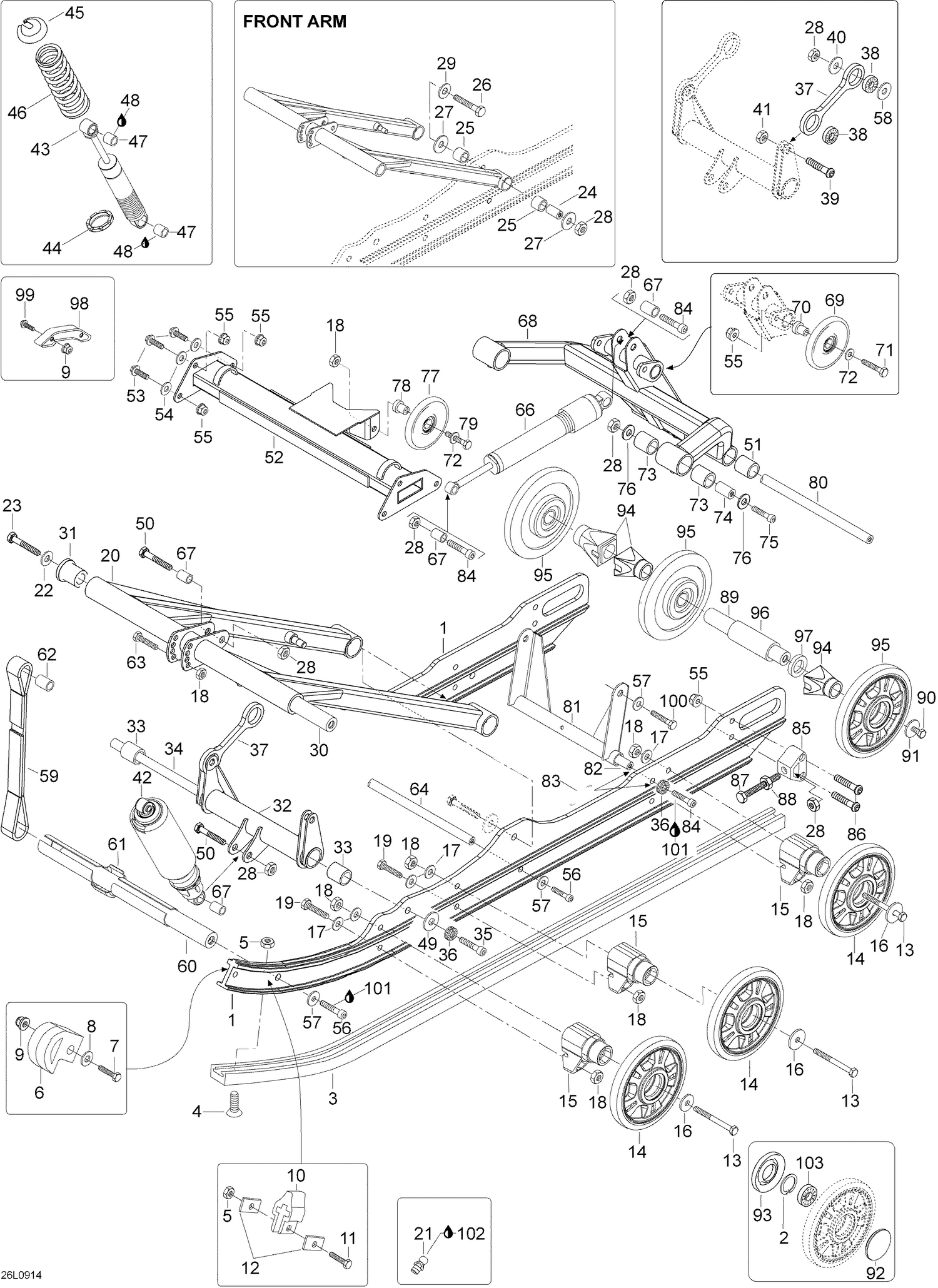

08- Rear Suspension

Parts (102)

RefPart NumberDescription
1 605355361 Runner
2 371901700 CIRCLIP - Call your local BRP dealership
3 605355362 Slider shoe
4 40845 Socket head screw M6 x 25
5 33010 Lock Nut M6 (1=10Pcs)
6 605348954 Runner protector
7 40031 Hex. screw M6 x 25
8 20003 Washer A6,4
9 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
10 5442328 STOPPER-RUBBER - Call your local BRP dealership
11 40032 Hex. screw M6 x 30
12 548470 Support plate
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503191313 Idler wheel, 141/Full Moon
15 605451906 Support
16 503183100 Washer
17 234081410 Flat Washer 8 mm This part replaces 20004.
18 232581414 Hex. Elastic Stop Nut M8
19 40037 Hex. screw M8 x 25
20 605354944 Front arm
21 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
22 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
23 40243 Hex. screw M12 x 60
24 605354157 Shaft
25 31065 Cushion
26 40021 Hex. screw M10 x 70
27 605355801 Washer
28 33012 Elastic stop nut M10
29 503183300 Lock washer
30 605355981 Shaft
31 31024 Cushion
32 605355772 Front Aarm
33 31024 Cushion
34 605355800 Shaft
35 40852 Socket head screw M10 x 55
36 20068 Lock washer D10
37 605254159 Link plate
38 605631003 Ball bearing
39 605640021 Socket head screw M10 x 25
40 20012 Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership
41 33055 Elastic stop nut M10
43 605623040 Shock, front arm
43 605623041 Shock, rear arm
44 230078 Adjusting Cam
45 230076 Spring stopper
46 605625014 Spring, rear arm
46 605625015 Spring, front arm
47 31094 Cushion
48 32161 Loctite 641, 50ml
49 512056700 Lock washer
50 40016 Hex. screw M10 x 45
51 31024 Cushion
52 605354961 Upper arm
53 40037 Screw M8 x 25
54 605620002 Washer A8,4
55 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
56 40136 Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership
57 20005 WASHER M10 - Call your local BRP dealership
58 25004 Cup Spring
59 605355116 Stopper strap
60 605353958 Shaft
61 605355096 Limiter
62 605455335 Sleeve
63 207084544 Hex. Screw M8 X 45 This part replaces 40008.
64 5343471 Shaft
65 40014 Hex. Screw M10 x 40
67 5446652 Bushing
68 605354962 Rear arm
69 46100 Idler wheel 133/black
70 605454461 Sleeve
71 207084544 Hex. Screw M8 X 45 This part replaces 40008.
72 20077 M8 Washer
73 31065 Cushion
74 605354157 Shaft
75 40254 Socket head screw M10 x 65
76 234002410 Flat Washer 10 mm This part replaces 20011.
77 572043500 Idler Wheel
78 605454167 Sleeve
79 207083544 Hex. Screw M8 X 35
80 605355118 Shaft
81 605353953 Pivot arm
82 605355119 Shaft
83 5446786 Sopport plate
84 40852 Socket head screw M10 x 55
85 5341633 Tensioner
86 40392 Socket head screw M8 x 45
87 40239 Hex. screw M10 x 100
88 232006414 Hex. Nut M10 This part replaces 33004.
89 503190429 Rear Axle
90 40050 Hex. screw M10 x 35
91 503190439 Washer
92 570063600 Cap
93 503190434 Labyrinth Seal
94 503190428 Rear Wheel Spacer
95 503191110 Idler wheel 165/Full Moon
96 503196317 Spacer This part replaces 503190430.
97 503190432 Washer
98 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
99 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
100 40134 Screw Socket HD.DIN 912
101 293800005 Loctite 271, 10ml
102 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
