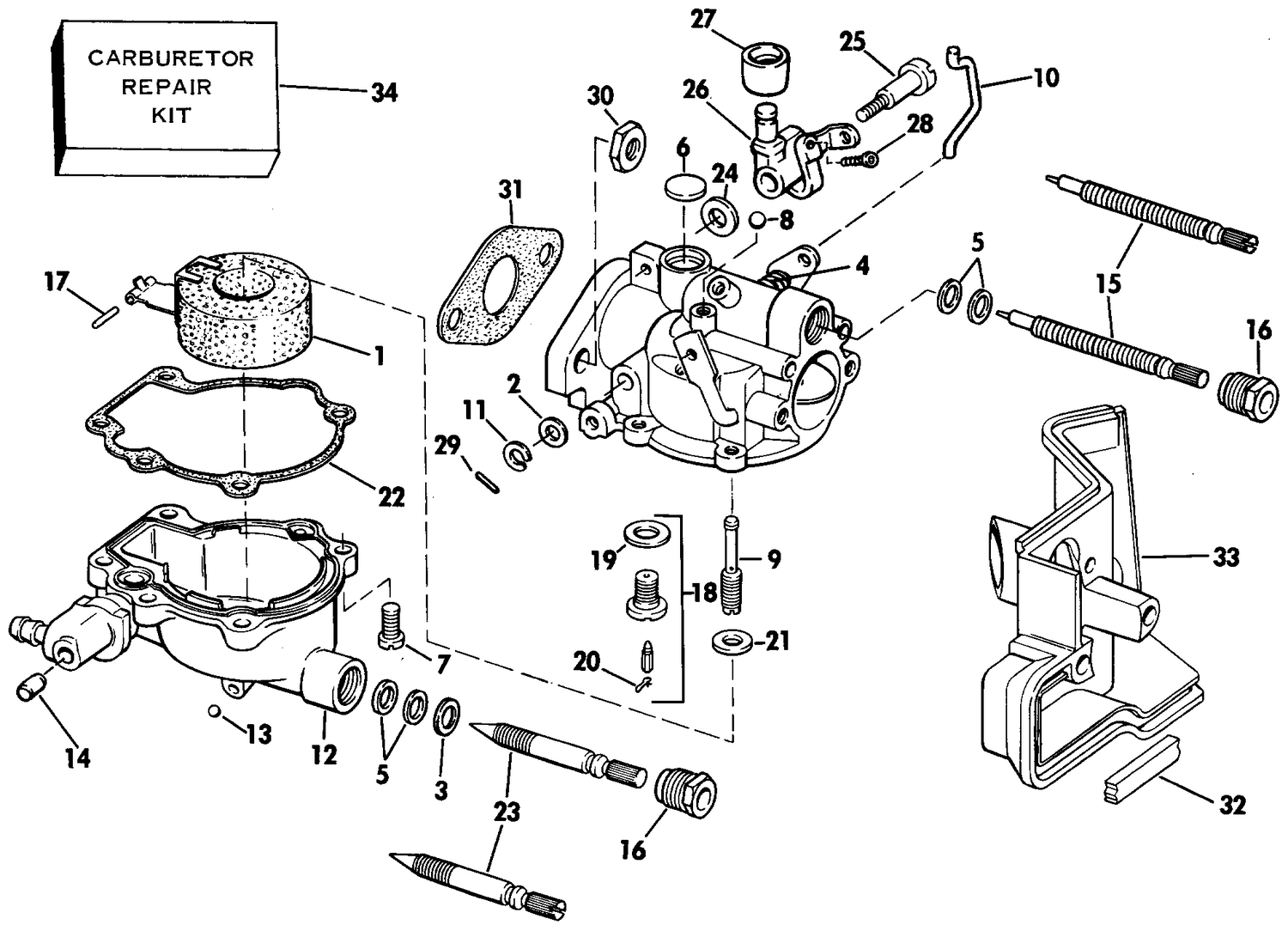

| Ref | Part Number | Description |
|---|
| 7 |
0330189 |
SCREW |
| 9 |
0314264 |
NOZZLE, High speed |
| 10 |
0330286 |
LINK, Cam follower |
| 11 |
0203949 |
E RING LINK This part replaces 0202755. |
| 12 |
0382999 |
FLOAT CAHMBER ASSY. |
| 15 |
0392128 |
NEEDLE VALVE, Low speed |
| 15 |
0431629 |
NEEDLE VALVE, Low speed This part replaces 0390145. |
| 17 |
0300096 |
HINGE PIN |
| 20 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
0302984 |
GASKET |
| 23 |
0327461 |
NEEDLE VALVE, High speed |
| 24 |
0316980 |
NEEDLE VALVE, High speed |
| 27 |
0323326 |
GALET, came |
| 30 |
0328742 |
NUT This part replaces 0306338. |
| 31 |
0303003 |
GASKET |
| 32 |
0320406 |
SEAL, Air silencer |
| 33 |
0322119 |
AIR SILENCER |
| 0389941 |
0397387 |
CARBURETOR ASSY. This part replaces 0389941. |
| 0392127 |
0397386 |
CARBURETOR ASSY. This part replaces 0392127. |
