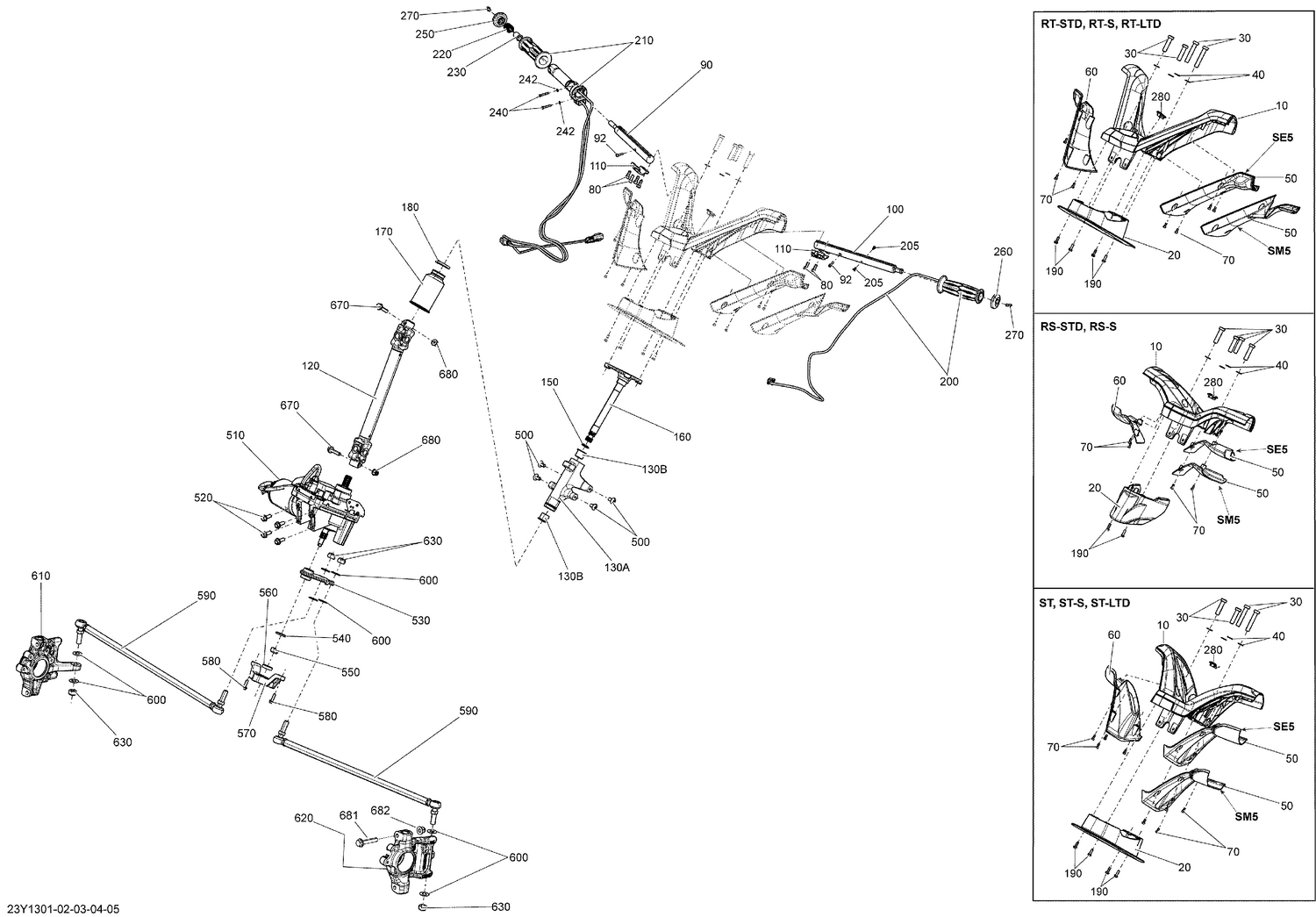

| Ref | Part Number | Description |
|---|
| 20 |
709400579 |
Handlebar Central Cover |
| 30 |
250000456 |
Thin Socket Screw M10 X 40, Scotch Grip |
| 40 |
250200105 |
Stainless Flat Washer, 10 mm |
| 60 |
709400578 |
RH Steering Cover |
| 70 |
205041054 |
Screw-Socket Hd.DIN.912 This part replaces 205041094. |
| 80 |
205561644 |
Socket Screw M6 X 16, Scotch Grip |
| 90 |
709401150 |
RH HANDLEBARS - Call your local BRP dealership |
| 92 |
250000494 |
Socket Screw, M4 X 16 Scotch Grip |
| 100 |
709401152 |
LH Handlebars |
| 110 |
709400631 |
Handlebar Clamp |
| 120 |
709401411 |
Lower Steering Column This part replaces 709400832. |
| 130B |
Not |
Available As Spare Part - Cushion |
| 150 |
709000089 |
O-Ring |
| 160 |
709401682 |
Steering Colum, Black This part replaces 709400774. |
| 170 |
709400790 |
Bellows |
| 180 |
414115200 |
Tie-Rap 180 mm |
| 190 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 200 |
709400625 |
Heating Handle Grip |
| 205 |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 210 |
709402720 |
Heated Throttle Grip This part replaces 709400929. |
| 220 |
709401937 |
Spring This part replaces 709400773. |
| 230 |
219800381 |
Bushing End Piece Kit This part replaces 709400782. |
| 240 |
205042594 |
Socket Screw, M4 X 25 |
| 242 |
234040600 |
Flat Washer 4 mm |
| 250 |
219800381 |
Bushing End Piece Kit This part replaces 709400765. |
| 260 |
709400793 |
Handlebar End Piece LH |
| 270 |
205061054 |
Screw-Socket Hd.Din.912 This part replaces 205061094. |
| 500 |
250000746 |
Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 510 |
709401061 |
POWER STEERING MODULE - Call your local BRP dealership |
| 520 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 530 |
709401417 |
PITMAN ARM - Call your local BRP dealership This part replaces 709400922. |
| 540 |
250200113 |
Flat Washer, 12 mm |
| 550 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 560 |
293200113 |
Seal Ring |
| 570 |
709400455 |
SENSOR SUPPORT - Call your local BRP dealership |
| 580 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 590 |
709401821 |
Tie Rod Ass'y This part replaces 709400833. |
| 600 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 610 |
709401864 |
RH Knuckle This part replaces 709401217. |
| 620 |
709401865 |
LH Knuckle This part replaces 709401216. |
| 630 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 670 |
250001021 |
Hex. Flange Screw M8 X 35 This part replaces 207583587. |
| 680 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 681 |
207605534 |
Hex. Flange Screw |
