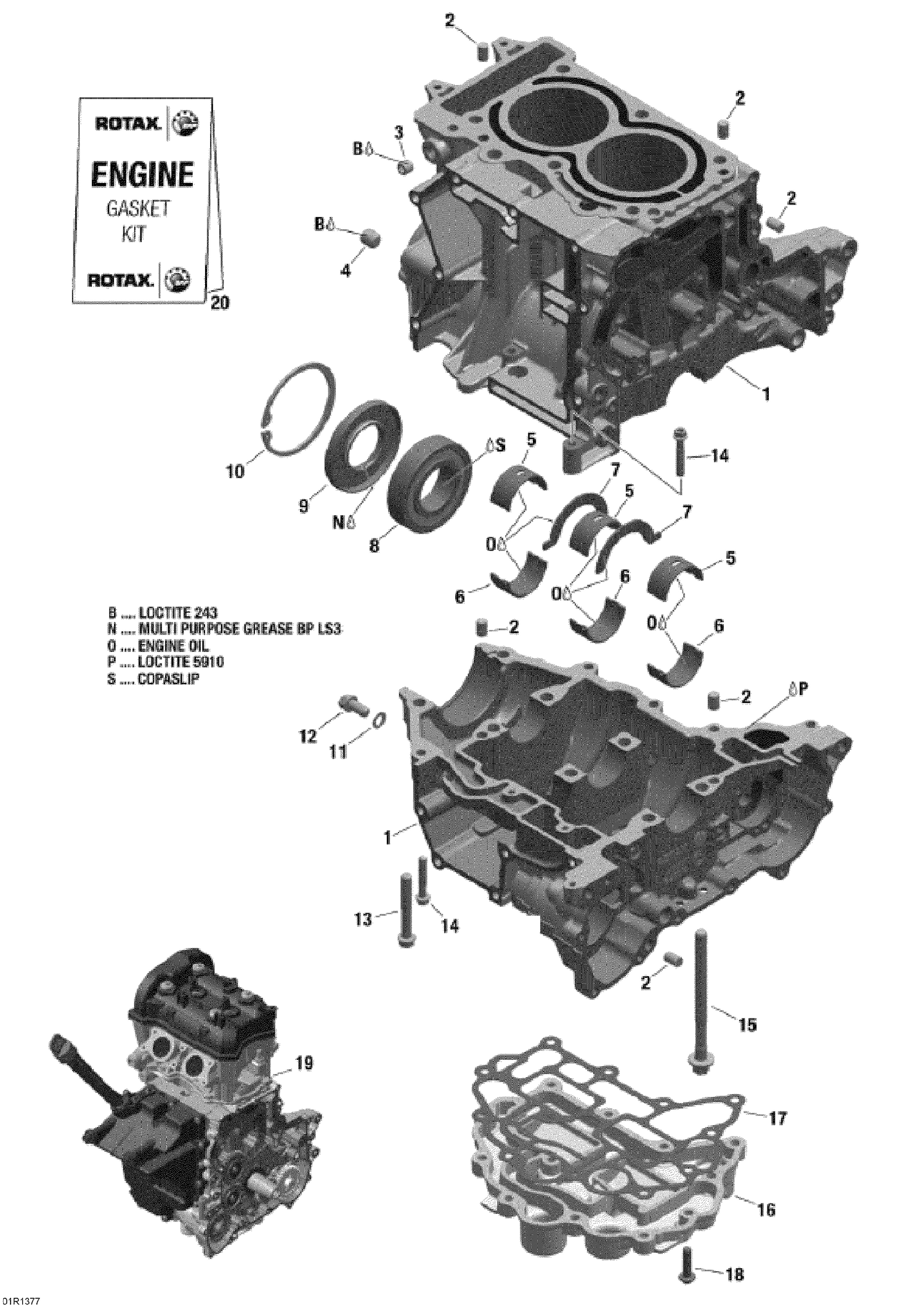

01- Engine Block
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| N | Not | Available As Spare Part - Multipurpose Grease BP LS3 |
| O | Not | Available As Spare Part - Engine Oil |
| P | 293800081 | Loctite 5910, 300 ml |
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641323 | Plug Screw M10 X 1 |
| 4 | 420840500 | Threaded Pin |
| 5 | 420933180 | Cushion |
| 6 | 420933185 | Cushion |
| 7 | 420933140 | Ring Half |
| 8 | 420832232 | Ball Bearing |
| 10 | 420845790 | Retaining Ring |
| 12 | 420440852 | Torx Flange Screw M8 X 16 |
| 13 | 420641213 | Torx Flange Screw M8 X 55 |
| 14 | 420641258 | Torx Flange Screw M6 X 35 |
| 15 | 420940945 | Torx Flange Screw M9 X 113 |
| 16 | 420911124 | Oil Sump This part replaces 420911122. |
| 19 | 420060203 | Long Block 602 This part replaces 420060201. |
| 20 | 420686024 | Gasket Set Engine 602 This part replaces 420686020. |
