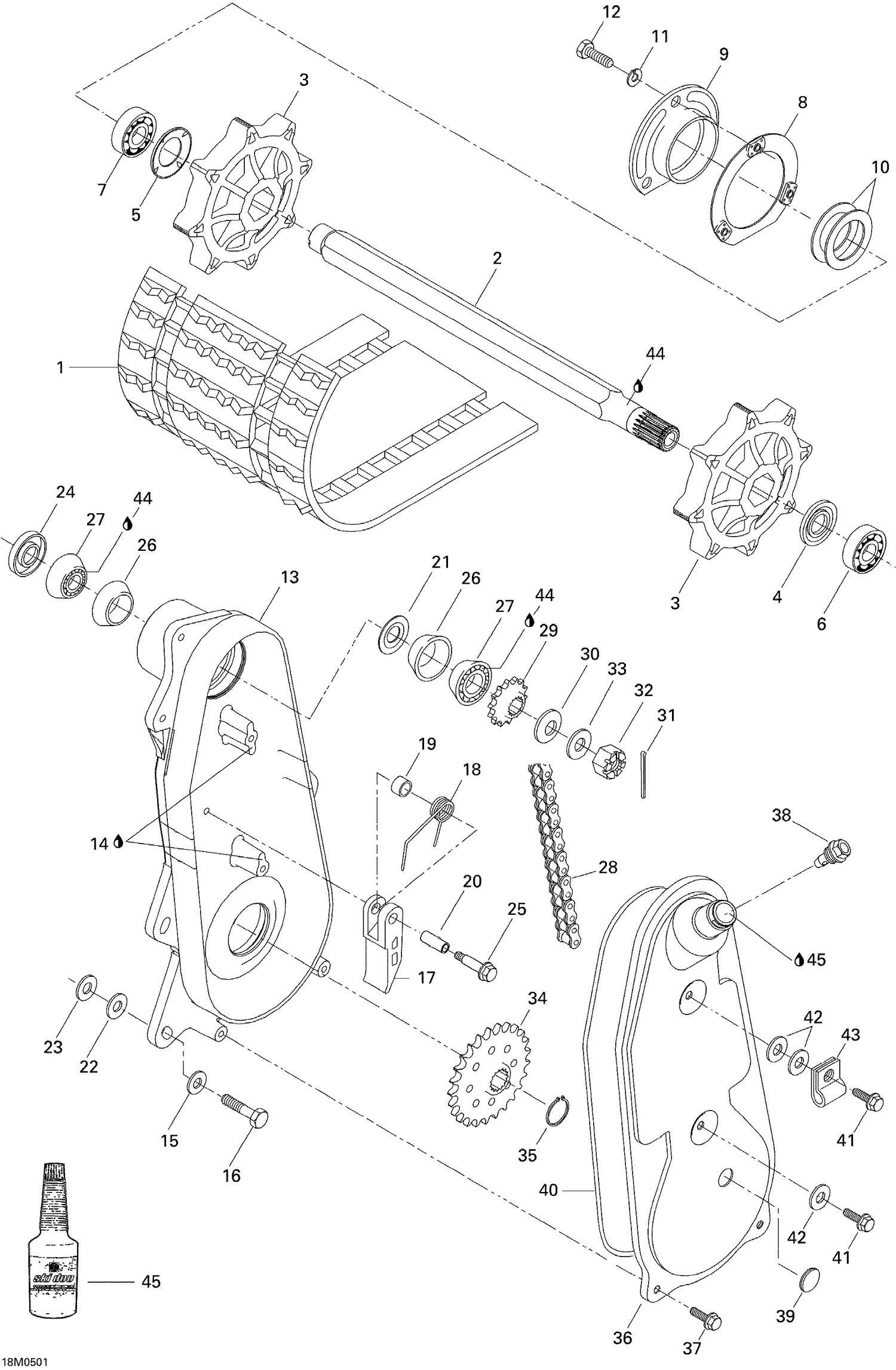

05- Transmission
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504151833 | Track 15" X 139" X 0.7" Ass'y |
| 2 | 504151800 | DRIVE AXLE - Call your local BRP dealership |
| 3 | 504151817 | SPROCKET 8 TOOTH - Call your local BRP dealership |
| 4 | 504152076 | Seal Oil Ass'y |
| 5 | 501017400 | BEARING PROTECTOR - Call your local BRP dealership |
| 6 | 293350115 | Ball Bearing This part replaces 504152006. |
| 7 | 293350115 | Ball Bearing This part replaces 503190795. |
| 8 | 501015200 | Welded Retaining Ring |
| 9 | 501019500 | Bearing Housing |
| 10 | 501020500 | WASHER - Call your local BRP dealership |
| 11 | 234161471 | Lock Washer M6, Black |
| 12 | 207161644 | Hex. Screw M6 X 16 |
| 13 | 504088000 | Machined Chain Case |
| 14 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml |
| 15 | 506151245 | Washer |
| 16 | 207182544 | Hex. Screw M8 X 25 |
| 17 | 572041600 | CHAIN TENSIONER - Call your local BRP dealership |
| 18 | 414130600 | Spring |
| 19 | 504018200 | SPACER - Call your local BRP dealership |
| 20 | 504051600 | Spacer |
| 21 | 504005800 | Oil Deflector |
| 22 | 504073700 | WASHER - Call your local BRP dealership |
| 23 | 250200001 | WASHER - Call your local BRP dealership |
| 24 | 406300600 | Oil Seal |
| 25 | 210264080 | HEX. SCREW M6 X 40 - Call your local BRP dealership |
| 26 | 405000300 | Cup Bearing |
| 27 | 405000400 | CONE BEARING - Call your local BRP dealership |
| 28 | 412106300 | Driving Chain |
| 29 | 504088500 | SPROCKET 14 TOOTH - Call your local BRP dealership |
| 30 | 414823700 | Washer |
| 31 | 371800800 | COTTER PIN - Call your local BRP dealership |
| 32 | 232220413 | HEX. CASTELLATED NUT M12 - Call your local BRP dealership |
| 33 | 504049500 | Special Washer |
| 34 | 504088600 | Sprocket 25 Tooth |
| 35 | 371904900 | External Circlip |
| 36 | 504088100 | PAINT CHAINCASE COVER - Call your local BRP dealership |
| 37 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 38 | 572040600 | Breather |
| 39 | 570040600 | Plug |
| 40 | 570045900 | Seal |
| 41 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 42 | 234062410 | Flat Washer 6 mm |
| 43 | 414351600 | CLIP - Call your local BRP dealership |
| 44 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
