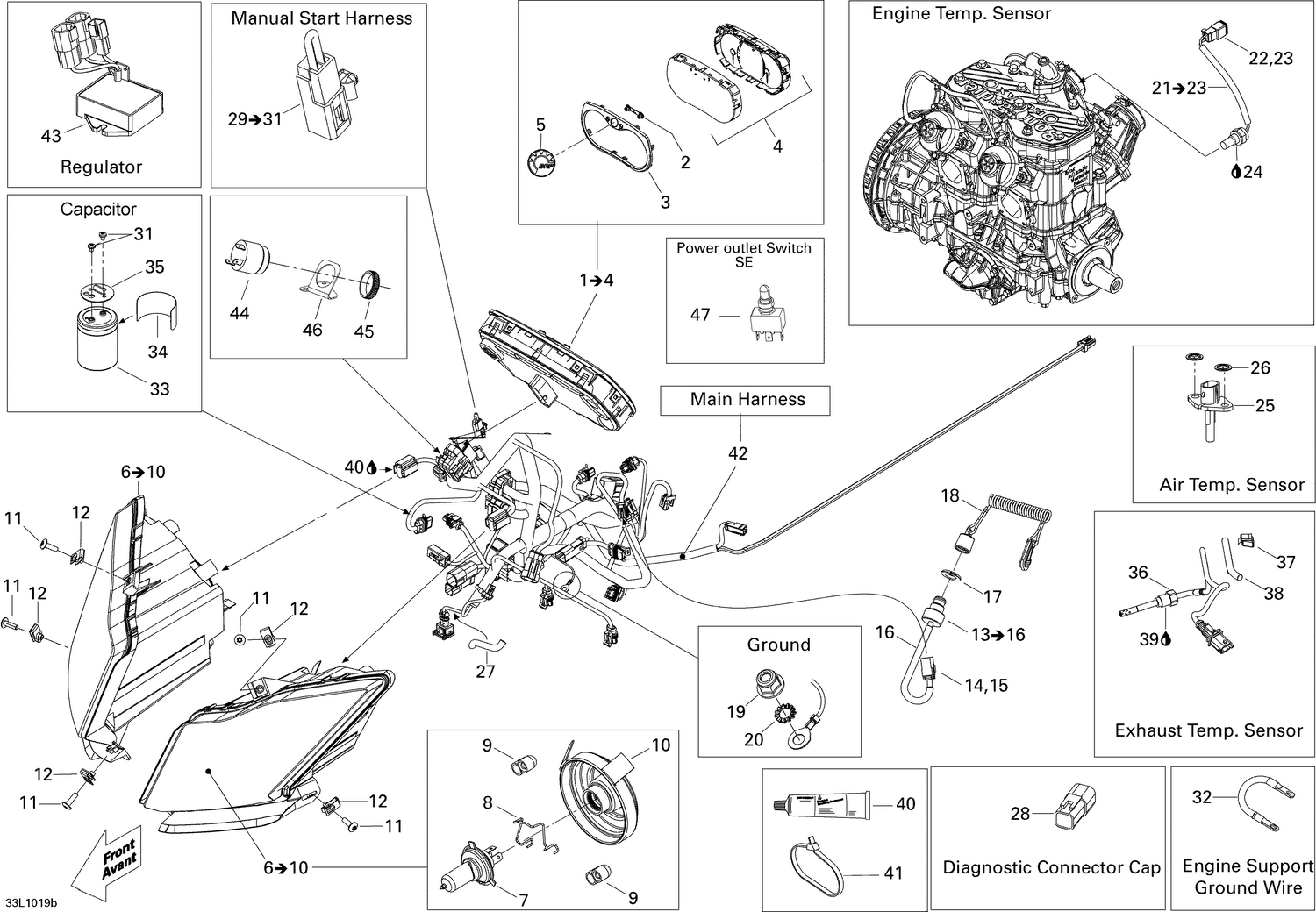

| Ref | Part Number | Description |
|---|
| 1 |
515177910 |
Speedometer This part replaces 515176954. |
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129348 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 6 |
517304194 |
RH Headlamp Ass'y |
| 6 |
517304195 |
LH Headlamp Ass'y |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 |
515176493 |
BULB HOLDER - Call your local BRP dealership |
| 9 |
515176498 |
Cap |
| 10 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 11 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 12 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 13 |
515177249 |
DESS Switch This part replaces 515176815. |
| 14 |
515175232 |
Male Terminal |
| 15 |
515175494 |
Male Housing, 3 Circuits |
| 16 |
Not |
Available As Spare Part - Tubing 12 mm |
| 17 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 |
515178284 |
DESS This part replaces 515176936. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
234461608 |
External Serrated Lock Washer 6 mm |
| 21 |
420664509 |
Temperature Sensor This part replaces 515176398. |
| 22 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 23 |
278000632 |
Female Terminal |
| 24 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 25 |
515176366 |
Air Temperature Sensor |
| 26 |
389804300 |
Push Nut |
| 27 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 28 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 29 |
515176661 |
MANUAL START HARNESS - Call your local BRP dealership |
| 31 |
515176542 |
SCREW 10-32 X 5/16 - Call your local BRP dealership |
| 32 |
515176358 |
Ground Wire |
| 33 |
515176387 |
CAPACITOR - Call your local BRP dealership |
| 34 |
516002976 |
CAPACITOR DECAL - Call your local BRP dealership |
| 35 |
515177193 |
Cap This part replaces 515176351. |
| 36 |
514054641 |
Temperature Sensor |
| 37 |
414227300 |
Clip |
| 38 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 39 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 40 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 41 |
293750001 |
Tie Wrap 94 mm |
| 41 |
293750002 |
Tie Wrap 142 mm |
| 41 |
293750008 |
Tie Wrap 368 mm |
| 41 |
414115200 |
Tie-Rap 180 mm |
| 42 |
515176657 |
WIRING HARNESS MAIN - Call your local BRP dealership |
| 43 |
515176243 |
Voltage Regulator |
| 44 |
515176035 |
HORN - Call your local BRP dealership |
| 45 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 46 |
515176822 |
REVERSE BUZZ HOLDER - Call your local BRP dealership |
