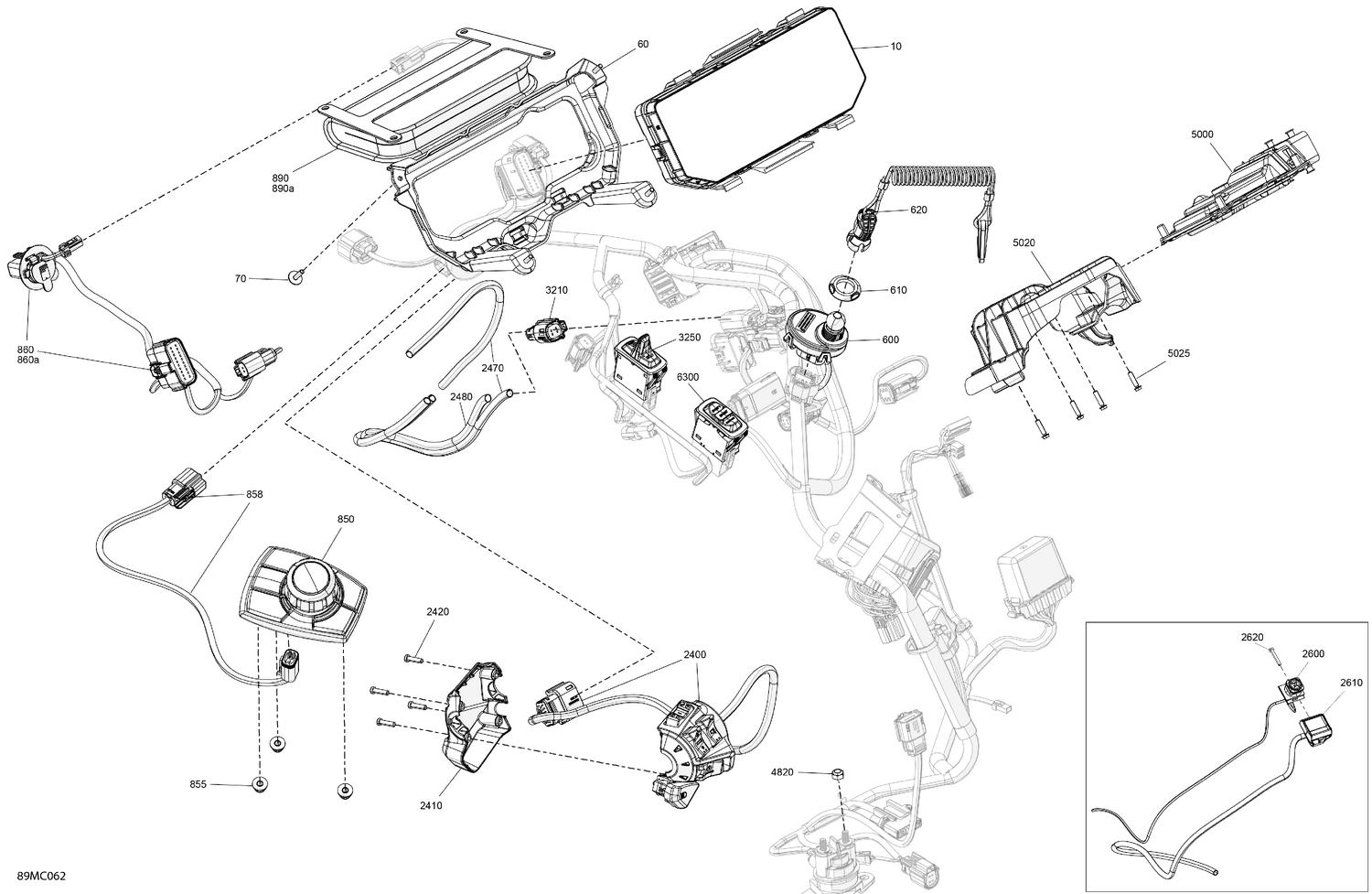

08- Electric - Upper Section
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 710006855 | Ignition Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 850 | 515178325 | Switch |
| 855 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 858 | 515178958 | Adaptor Wiring Harness |
| 860 | 515178758 | USB Wiring Harness |
| 860a | 710006405 | USB Connector |
| 890 | 515179153 | Protective Bag |
| 890a | 732610072 | Push Nut |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3250 | 515178501 | Rocket Switch |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000 | 420464172 | Vehicle Control Unit This part replaces 420464521. |
| 5020 | 512061397 | Module Support |
| 5025 | 241141660 | Hex. Flange Screw K40 X 16 |
