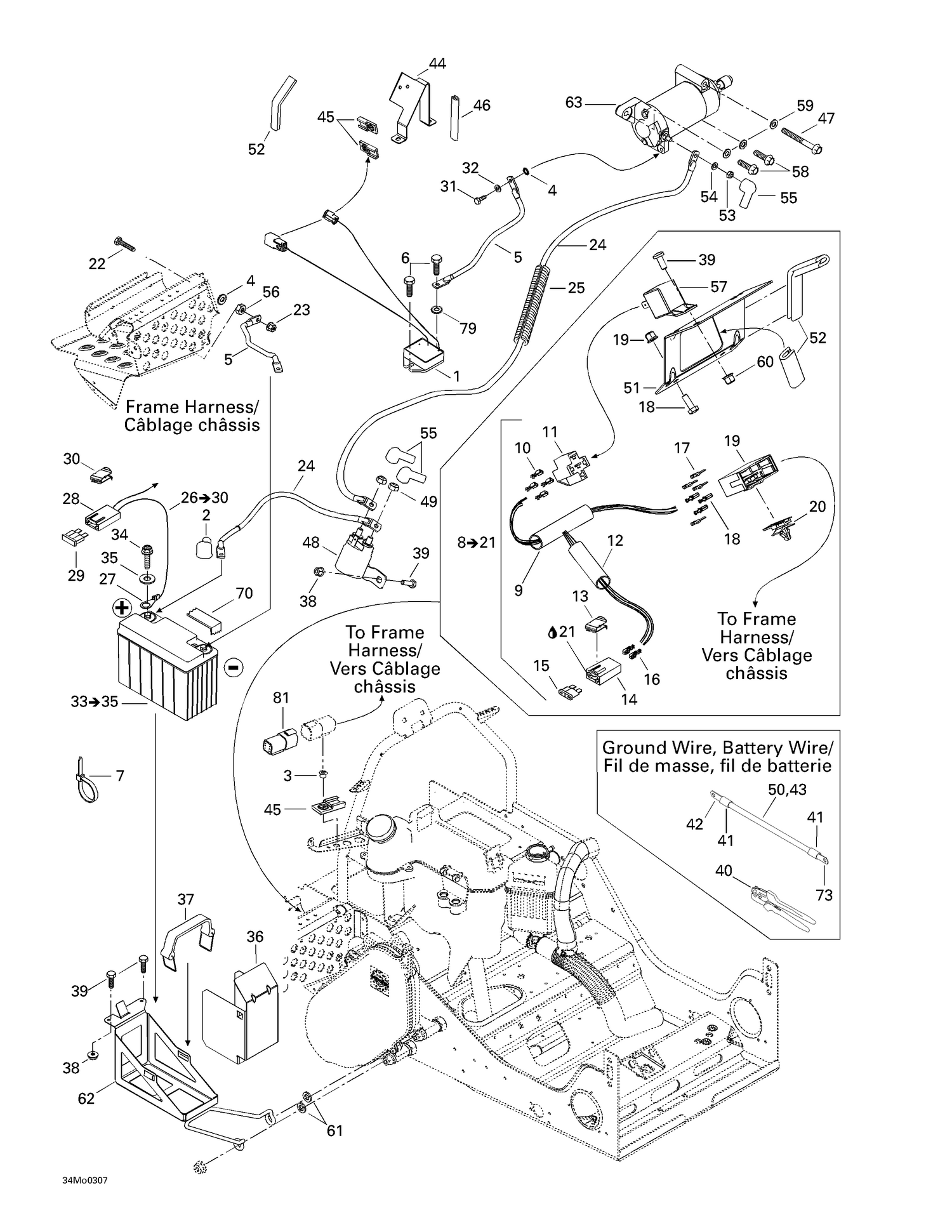

| Ref | Part Number | Description |
|---|
| 1 |
515175968 |
Voltage Regulator |
| 2 |
570151000 |
Protection Cap |
| 3 |
390906400 |
Pop-Rivets 3/16” |
| 4 |
250200041 |
Lock Washer Serrated M6 This part replaces 250200000. |
| 5 |
Not |
Available As Spare Part - Ground Wire |
| 6 |
290841543 |
Taptite Screw |
| 7 |
293750001 |
Tie Wrap 94 mm |
| 9 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 10 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 11 |
409209900 |
Female Housing, 5 Circuits |
| 12 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 13 |
409014200 |
CLIP - Call your local BRP dealership |
| 14 |
409004000 |
Fuse Holder |
| 15 |
278000344 |
Fuse, 5 Amperes |
| 16 |
409011600 |
Female Terminal |
| 17 |
515175232 |
Male Terminal |
| 18 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 19 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 20 |
515175283 |
Housing Support |
| 21 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 22 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
Not |
Available As Spare Part - Battery Wire |
| 25 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 27 |
278000992 |
Open Barrel |
| 28 |
409004000 |
Fuse Holder |
| 29 |
410917200 |
Fuse, 30 Amperes |
| 30 |
409014200 |
CLIP - Call your local BRP dealership |
| 31 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 32 |
234061410 |
Flat Washer 6 mm |
| 34 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 35 |
234061410 |
Flat Washer 6 mm |
| 36 |
515175643 |
DEFLECTOR - Call your local BRP dealership |
| 37 |
515176044 |
Battery Strap This part replaces 515175475. |
| 38 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 39 |
207151444 |
Hex. Screw M5 X 14 |
| 40 |
529035730 |
Crimp Plier |
| 41 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 42 |
278001682 |
Terminal 45°, Small Hole |
| 43 |
278001690 |
Cable Battery, no 6, meter) |
| 44 |
515175842 |
Housing Support |
| 45 |
270000141 |
Clip |
| 46 |
219704353 |
Was 271000110 Protection Trim |
| 47 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 48 |
515176011 |
Starter Relay This part replaces 710000111. |
| 49 |
232561414 |
Elastic Stop Nut M6 |
| 50 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 51 |
515175907 |
Fuse Holder |
| 52 |
219704353 |
Was 271000110 Protection Trim |
| 53 |
232561414 |
Elastic Stop Nut M6 |
| 54 |
234061410 |
Flat Washer 6 mm |
| 55 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 56 |
232061414 |
Hex. Nut M6 |
| 57 |
710010053 |
Relay This part replaces 410113200. |
| 58 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 59 |
250200008 |
Flat Washer With Teflon 8 mm |
| 60 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 61 |
503175800 |
Washer |
| 62 |
515175718 |
Battery Support |
| 278001681 |
Câble |
De Masse, N° 4, Mètre 278001681 |
| 278001681 |
Ground |
Cable Battery, No. 4, Meter 278001681 |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
