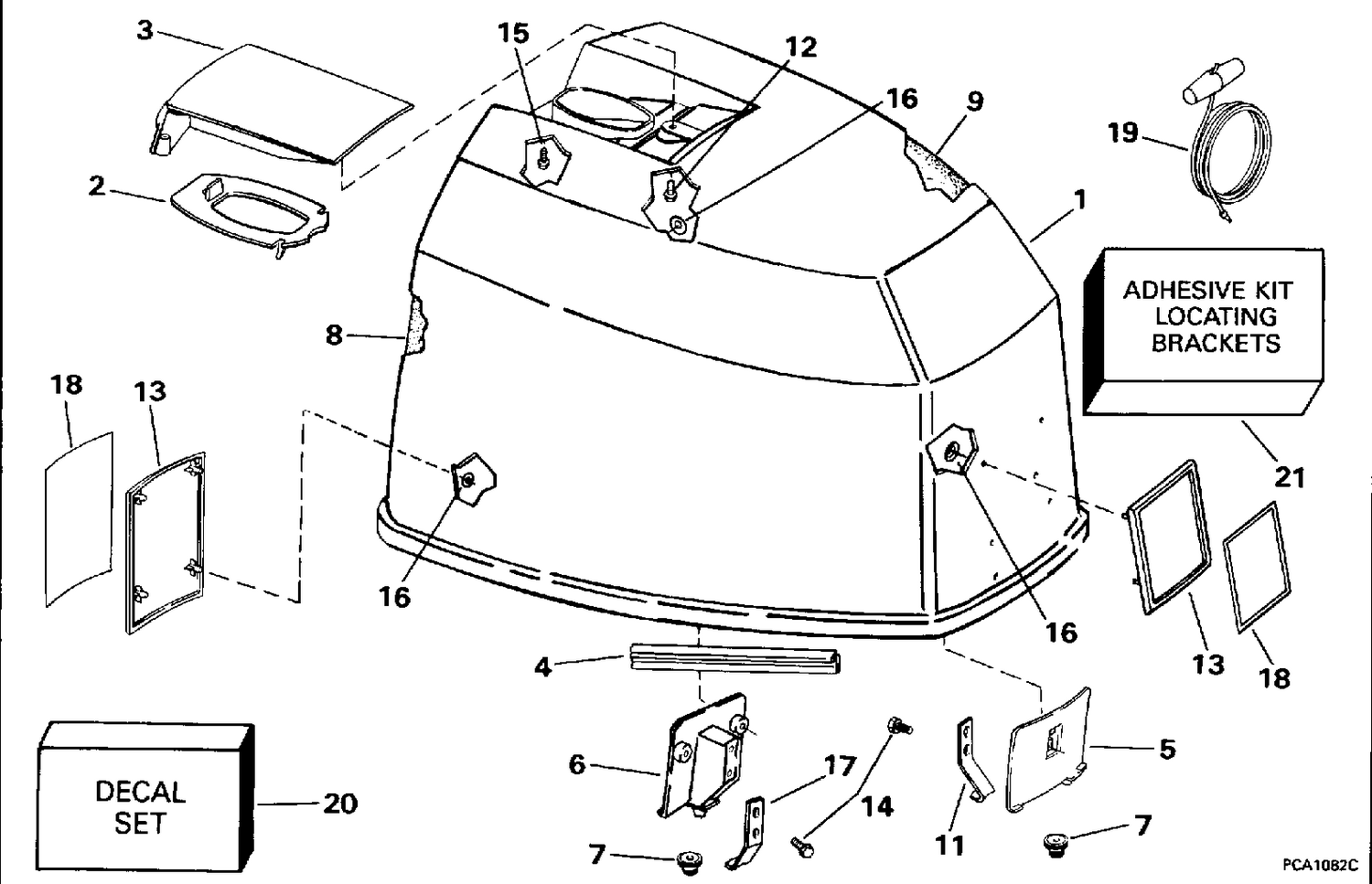

ENGINE COVER - EVINRUDE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0284187 | ENGINE COVER ASSY. |
| 1 | 0284642 | ENGINE COVER ASSY. |
| 1 | 0284668 | ENGINE COVER ASSY. |
| 1 | 0284669 | ENGINE COVER ASSY. |
| 4 | 0329548 | SEAL |
| 5 | 0336991 | BRACKET, Locating, front |
| 6 | 0336992 | BRACKET, Locating, rear |
| 8 | 0341534 | SOUND BLANKET, Side This part replaces 0208509. |
| 9 | 0208510 | SOUND BLANKET, Top |
| 11 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0211966 | FRAME, Front & rear |
| 13 | 0331856 | APPLIQUE, Front |
| 18 | 0211965 | PLATE, Front & rear |
| 18 | 0212420 | PLATE, Front & rear |
| 18 | 0341102 | PLATE, Front & rear |
| 18 | 0341106 | PLATE, Front & rear |
| 19 | 0378347 | CORDE DE LANCEUR |
| 20 | 0283782 | DECAL SET |
| 20 | 0284674 | DECAL SET |
