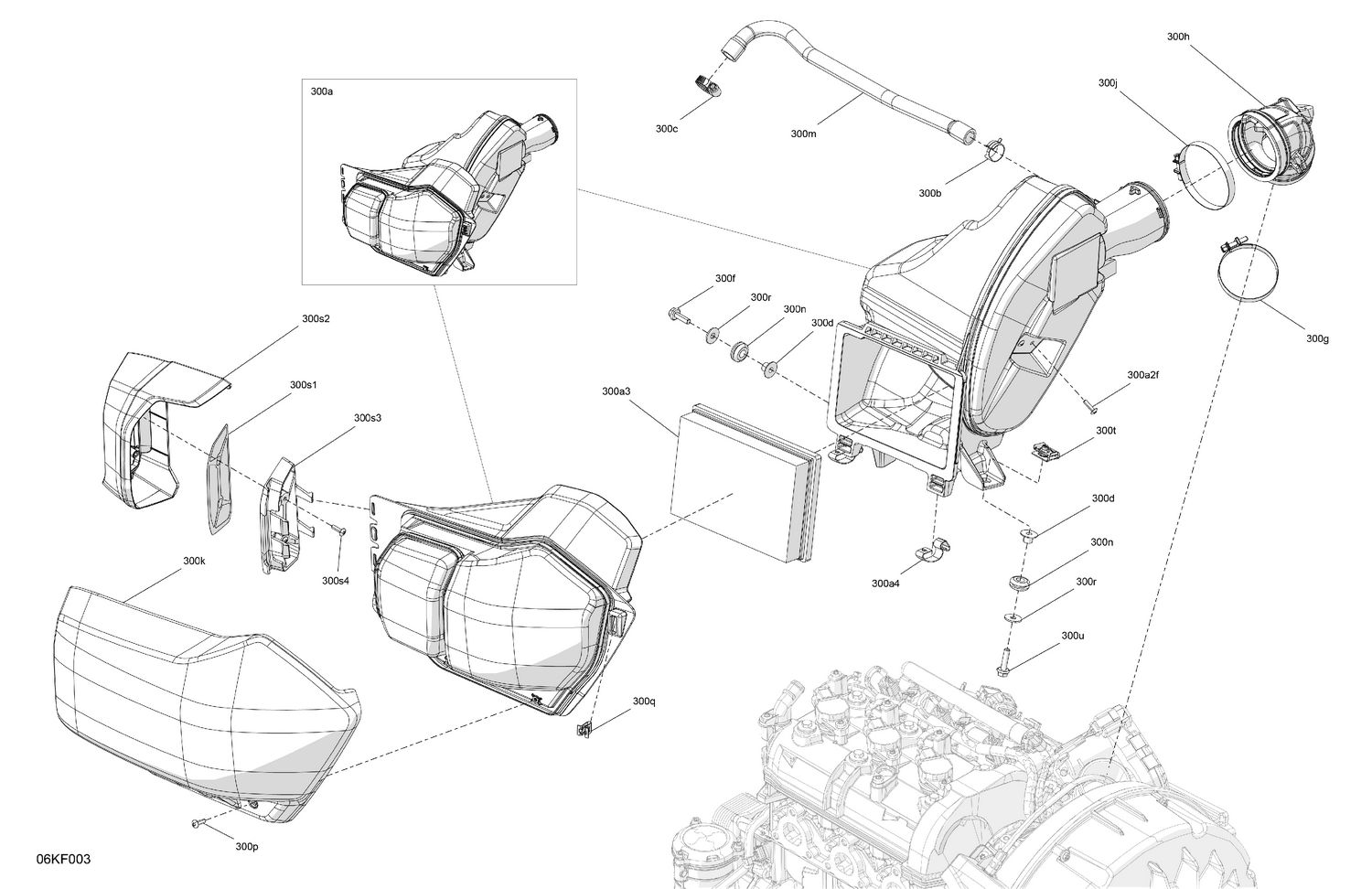

02- Engine - LH Air Intake
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 300a2f | 250000759 | Torx Truss Pt K40 X 16 |
| 300a3 | 707800306 | Air Filter |
| 300a4 | 707800342 | Cover Retainer |
| 300b | 513033865 | Spring Clamp |
| 300c | 293650172 | Tridon Gear Clamp |
| 300d | 709001288 | Bushing |
| 300f | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 300g | 293650229 | Gemi Clamp |
| 300h | 707800712 | Air Intake Silencer Adaptor |
| 300j | 508000150 | Gemi Clamp |
| 300k | 707801015 | Lateral Cover |
| 300m | 707800710 | Formed Hose |
| 300n | 709001197 | Grommet |
| 300p | 250000759 | Torx Truss Pt K40 X 16 |
| 300q | 517302785 | Edge Clip |
| 300r | 250200082 | Flat Washer |
| 300s1 | 705015093 | LH Filter Support |
| 300s2 | 705016508 | Carbon Black, LH Fairing Trim |
| 300s3 | 508001076 | Filter |
| 300s4 | 250000759 | Torx Truss Pt K40 X 16 |
| 300t | 250100208 | Panel Nut M6 X 1.0 |
