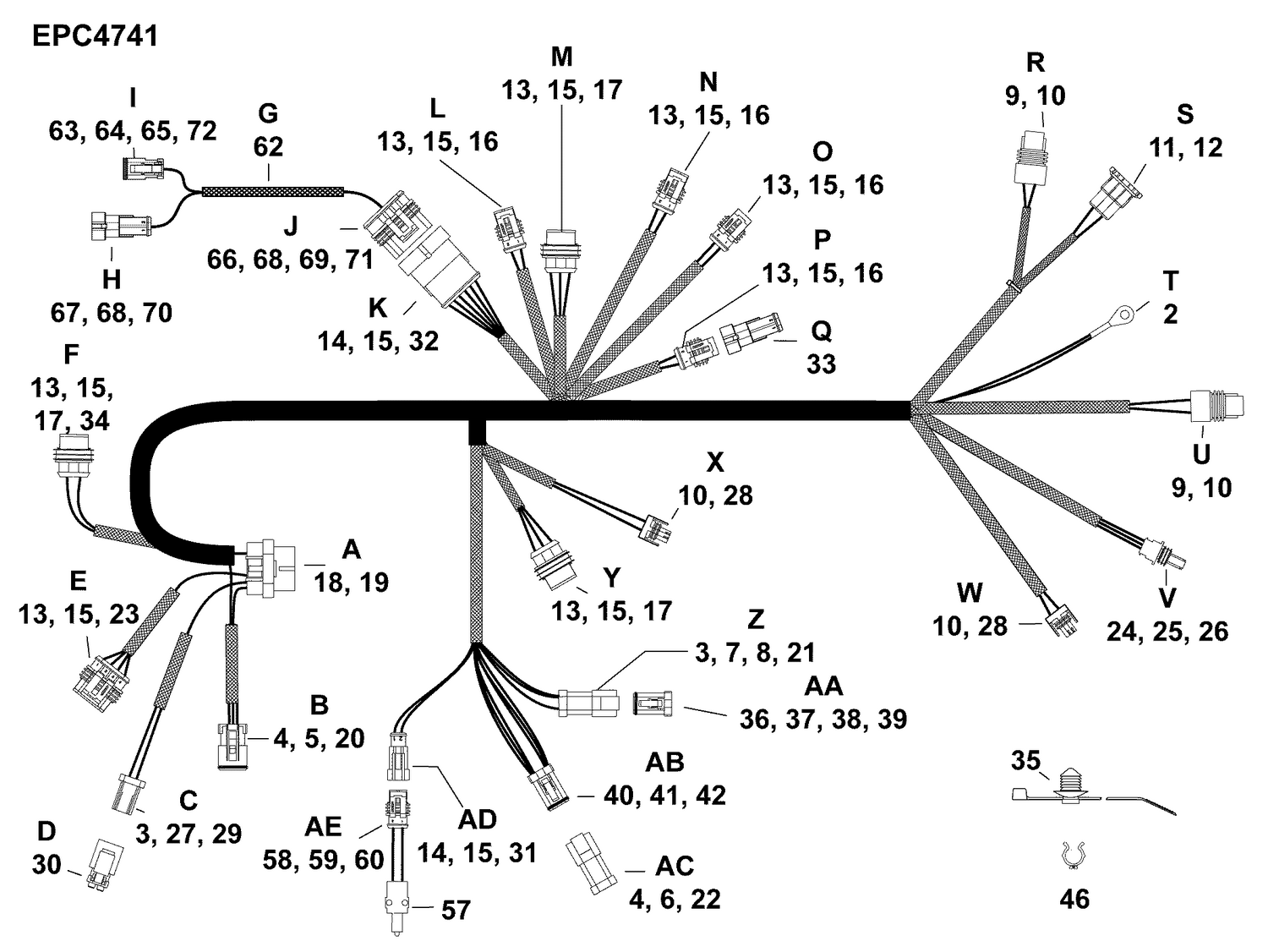

| Ref | Part Number | Description |
|---|
| A |
EMM |
CONNECTOR |
| AA |
SEAL |
ASSEMBLY, SystemCheck CONNECTOR |
| AC |
SEAL |
ASSEMBLY, Key switch connector |
| B |
DIAGNOSTIC |
CONNECTOR |
| C |
CANbus |
CONNECTOR |
| D |
SEAL |
ASSEMBLY, CANbus connector |
| E |
STATOR |
CONNECTOR |
| F |
CRANKSHAFT |
POSITION SENSOR |
| G |
TILLER |
ARM ADAPTER HARNESS |
| H |
FUEL |
SELECTOR SWITCH |
| I |
STOP |
SWITCH |
| J |
ADAPTER |
HARNESS TO ENGINE HARNESS |
| K |
ENGINE |
HARNESS TO ADAPTER HARNESS |
| L |
FUEL |
INJECTOR #1 CONNECTOR |
| M |
IGNITION |
COIL #2 CONNECTOR |
| N |
FUEL |
INJECTOR #2 CONNECTOR |
| NS |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| O |
FUEL |
PUMP CONNECTOR |
| Q |
SEAL |
ASSEMBLY, Battery charge module |
| R |
LOW |
OIL SWITCH CONNECTOR |
| S |
OIL |
PUMP CONNECTOR |
| T |
CYLINDER |
BLOCK GROUND |
| V |
THROTTLE |
POSITION SENSOR CONNECTOR |
| W |
AIR |
TEMPERATURE SENSOR |
| X |
CYLINDER |
HEAD TEMPERATURE SENSOR |
| Y |
IGNITION |
COIL #1 CONNECTOR |
| 35 |
5007748 |
FICHE & ATTACHE-CÂBLE |
| 46 |
3011450 |
ATTACHE, connecteur |
| 57 |
0586780 |
INTERRUPTEUR, de sécurité au point mort |
