Home / BRP / Sea-Doo Pontoons / 2023 / 001 - SWITCH - Base Series / 001 - BASE Compact - 130 - North America, 2023 / North America - BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 00041PJ00 / 06- HULL - Ventilation

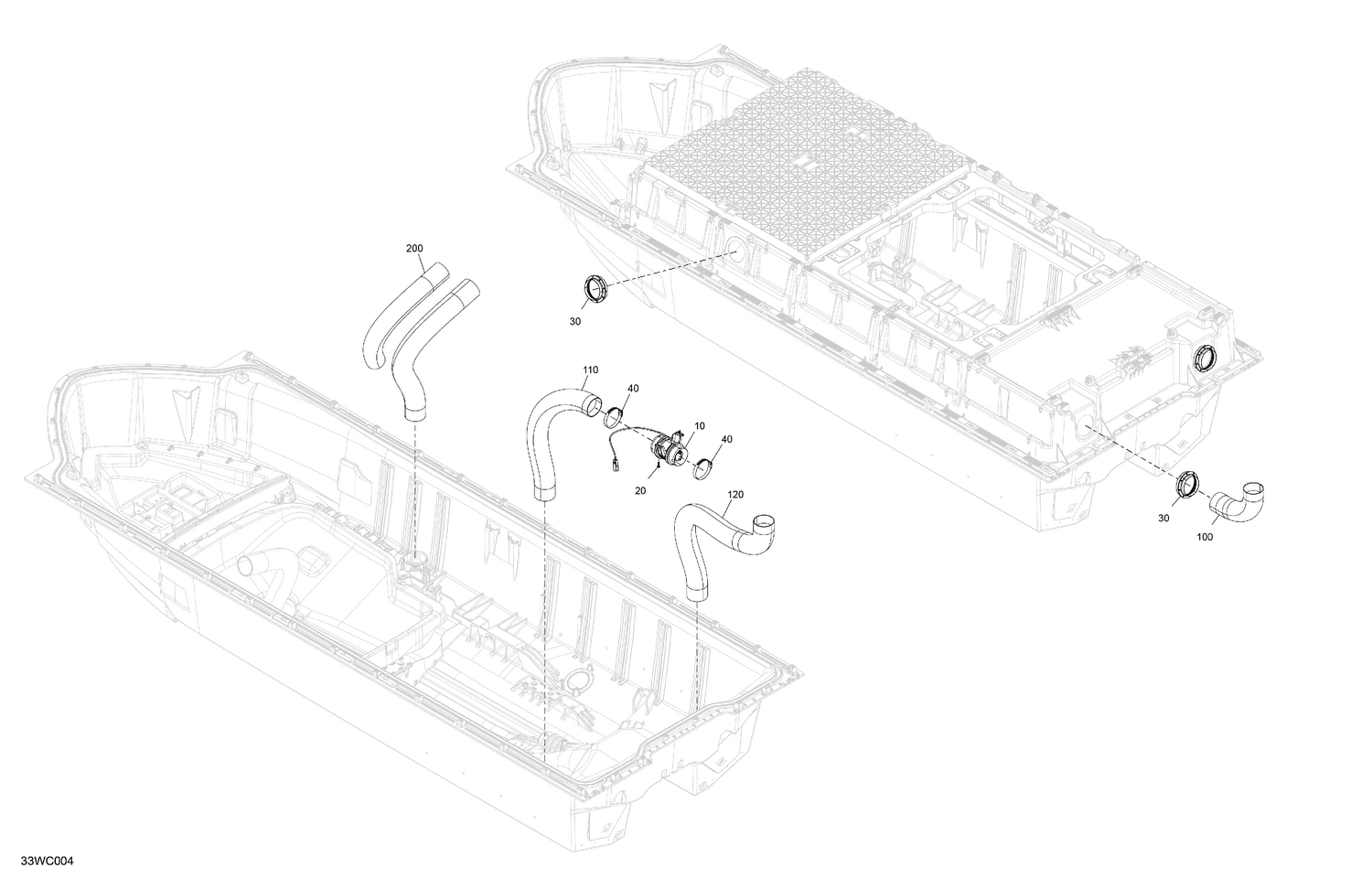

06- HULL - Ventilation

06- HULL - Ventilation

Parts (6)

RefPart NumberDescription
20 250000760 Torx Screw Truss Head K50X20 T20
30 237000090 Vent Adapter This part replaces 237000056.
40 293650244 Tridon Gear Clamp
100 237000078 Ventilation Duct
110 237000079 Ventilation Duct
120 237000080 Ventilation Duct
