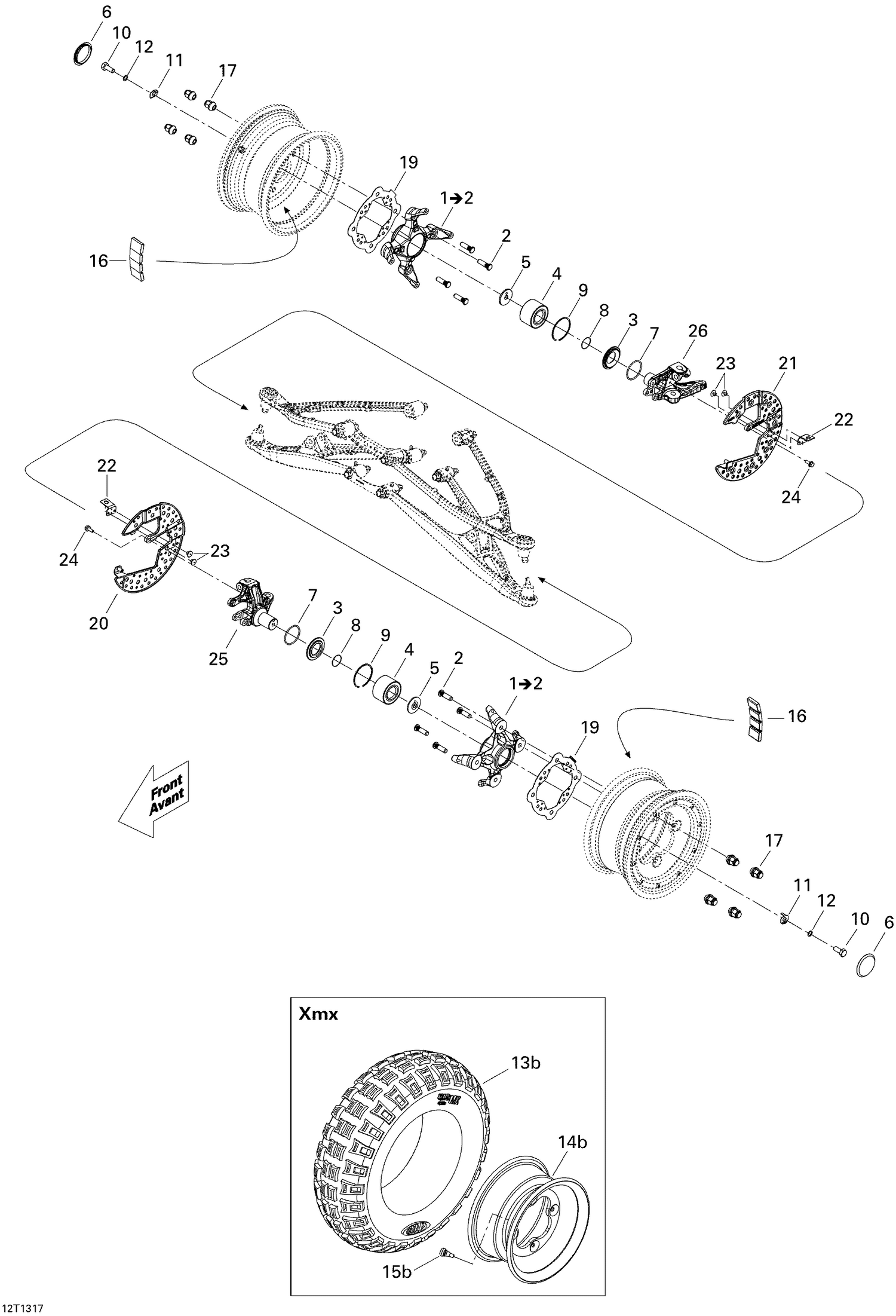

| Ref | Part Number | Description |
|---|
| 2 |
250300013 |
Wheel Stud |
| 3 |
705400371 |
SUPPORT RING - Call your local BRP dealership |
| 4 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 5 |
705400722 |
WASHER - Call your local BRP dealership |
| 6 |
705400792 |
CAP - Call your local BRP dealership |
| 7 |
293300113 |
O-RING - Call your local BRP dealership |
| 8 |
293300114 |
O-Ring |
| 9 |
293370019 |
Circlip |
| 10 |
207102534 |
HEX. SCREW M10 X 25 - Call your local BRP dealership |
| 11 |
705400767 |
LOCK WASHER - Call your local BRP dealership |
| 12 |
250200103 |
FLAT WASHER - Call your local BRP dealership |
| 16 |
705502106 |
Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 17 |
250100184 |
Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 19 |
705400572 |
EXTERIOR DISK - Call your local BRP dealership |
| 20 |
705400573 |
LH INTERIOR DISK - Call your local BRP dealership |
| 21 |
705400576 |
RH INTERIOR DISK - Call your local BRP dealership |
| 22 |
705400603 |
DISK SUPPORT - Call your local BRP dealership |
| 23 |
293150103 |
Pop Rivet 3/16" |
| 24 |
207561634 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 25 |
709400346 |
LH KNUCKLE - Call your local BRP dealership |
