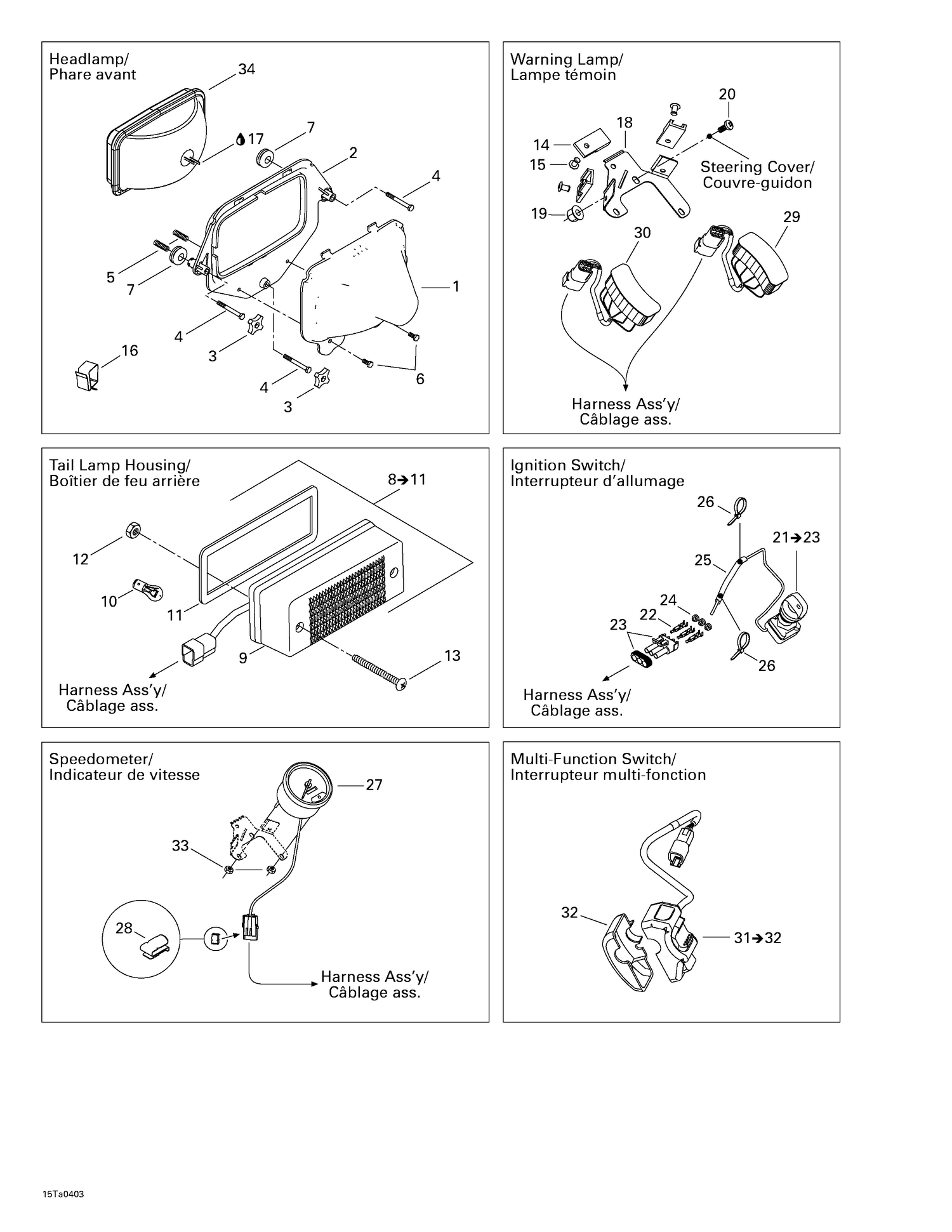

10- Electrical Accessories
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705000023 | Protector |
| 2 | 705000474 | Head Lamp Support |
| 3 | 572106600 | Handle |
| 4 | 250000008 | HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 5 | 517168600 | Spring |
| 6 | 241641040 | PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 7 | 709000582 | Grommet This part replaces 293720053. |
| 9 | 710000055 | TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 10 | 520000758 | Bulb This part replaces 410504100. |
| 11 | 710000129 | GASKET - Call your local BRP dealership |
| 12 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 13 | 208656091 | PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 14 | 270000141 | Clip |
| 15 | 390402400 | Pop Rivet 3/16" |
| 16 | 414227300 | Clip |
| 17 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 18 | 710000159 | Housing Support, Black |
| 19 | 232551414 | Elastic Stop Nut M5 |
| 20 | 208651241 | PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 22 | 278000223 | Female Terminal |
| 23 | 278000273 | Male Housing, 3 Circuits |
| 24 | 278000218 | Wire Seal |
| 25 | 710000171 | Protector Tube |
| 26 | 293750002 | Tie Wrap 142 mm |
| 27 | 710000524 | Speedometer |
| 28 | 409014200 | CLIP - Call your local BRP dealership |
| 29 | 710000419 | RH Warning Lamp |
| 30 | 710000418 | LH WARNING LIGHT - Call your local BRP dealership |
| 32 | 710000173 | BACK COVER - Call your local BRP dealership |
| 33 | 211100051 | NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership |
